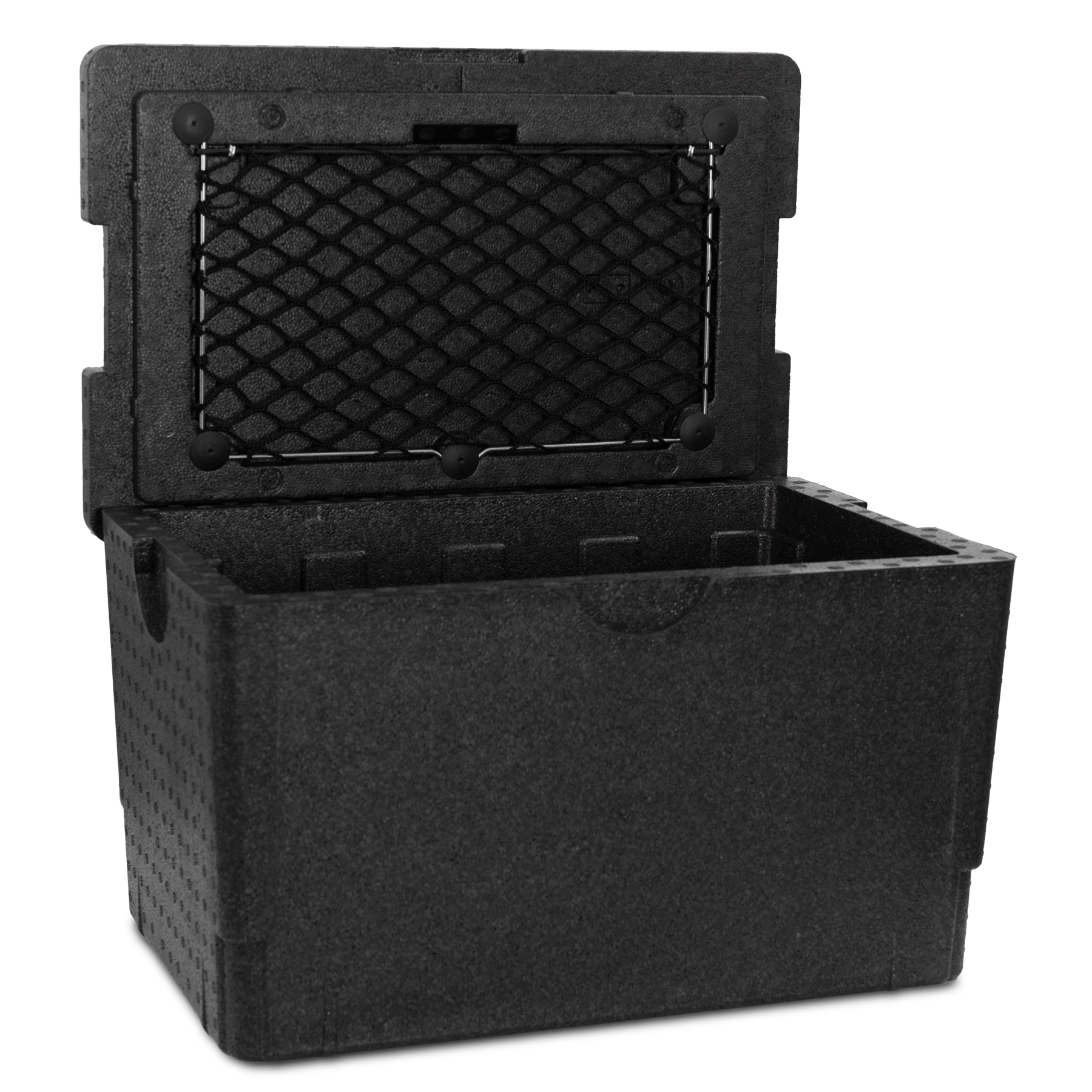

  • INSULATED BOX 34 OLIVO OPEN

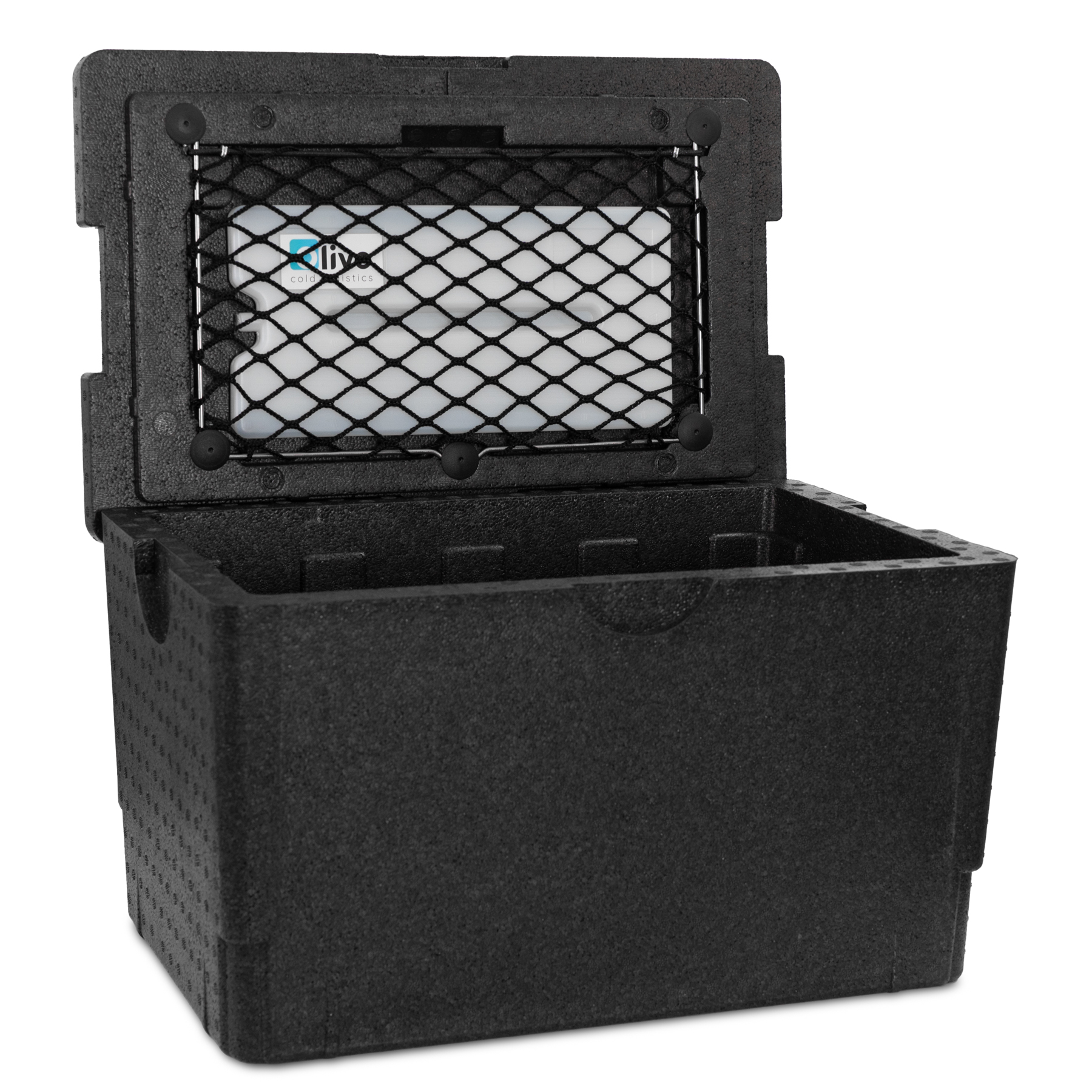

  • INSULATED BOX 34 OLIVO OPEN TOP64

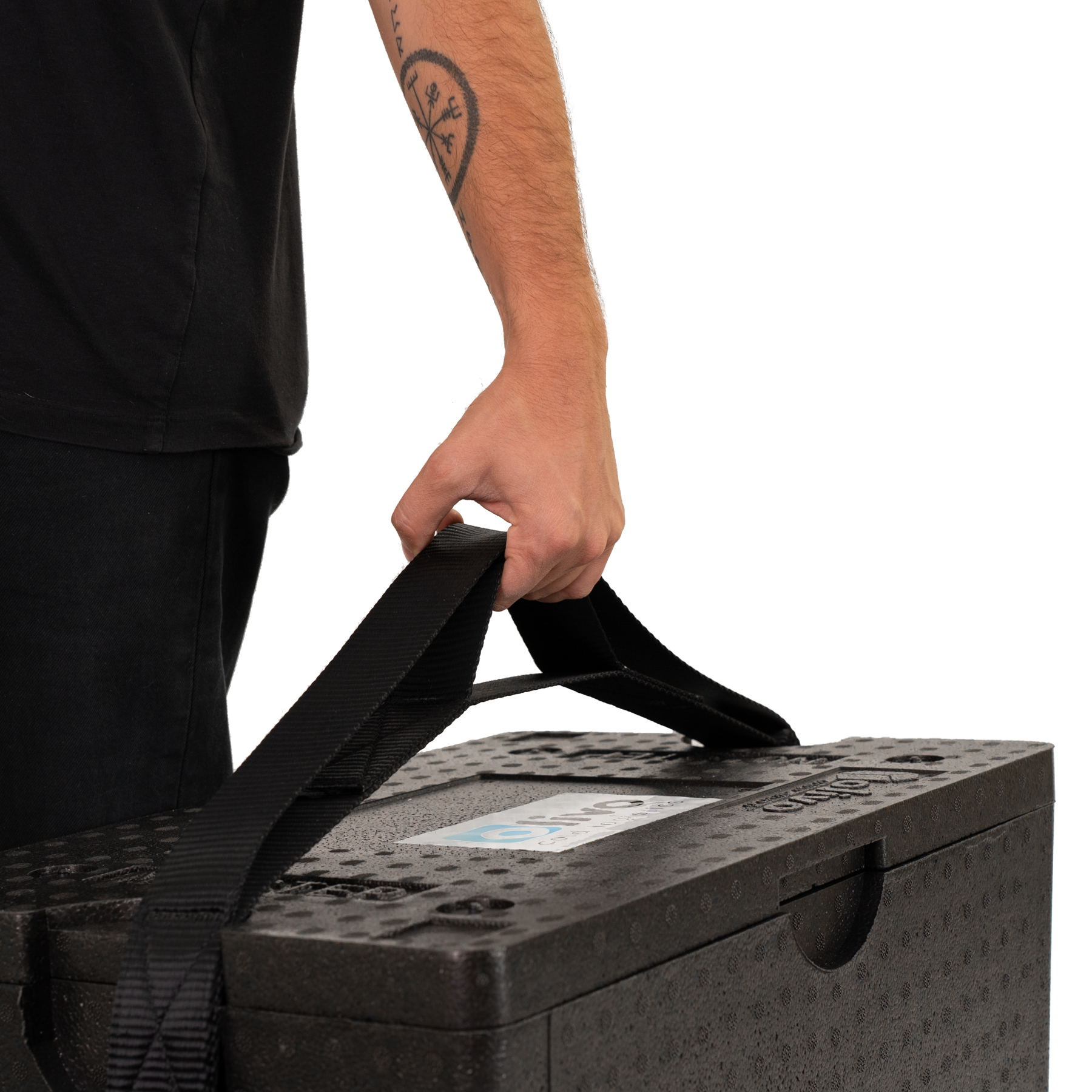

  • INSULATED BOX 34 OLIVO SOFT STRAP HANDLE
  • INSULATED BOX 34 OLIVO SOFT STRAP
  • INSULATED BOX 34 OLIVO SOFT SHOULDER STRAP
  • INSULATED BOX 34 OLIVO SIDE HANDLE
  • INSULATED BOX 34 OLIVO SIBERCITY LID

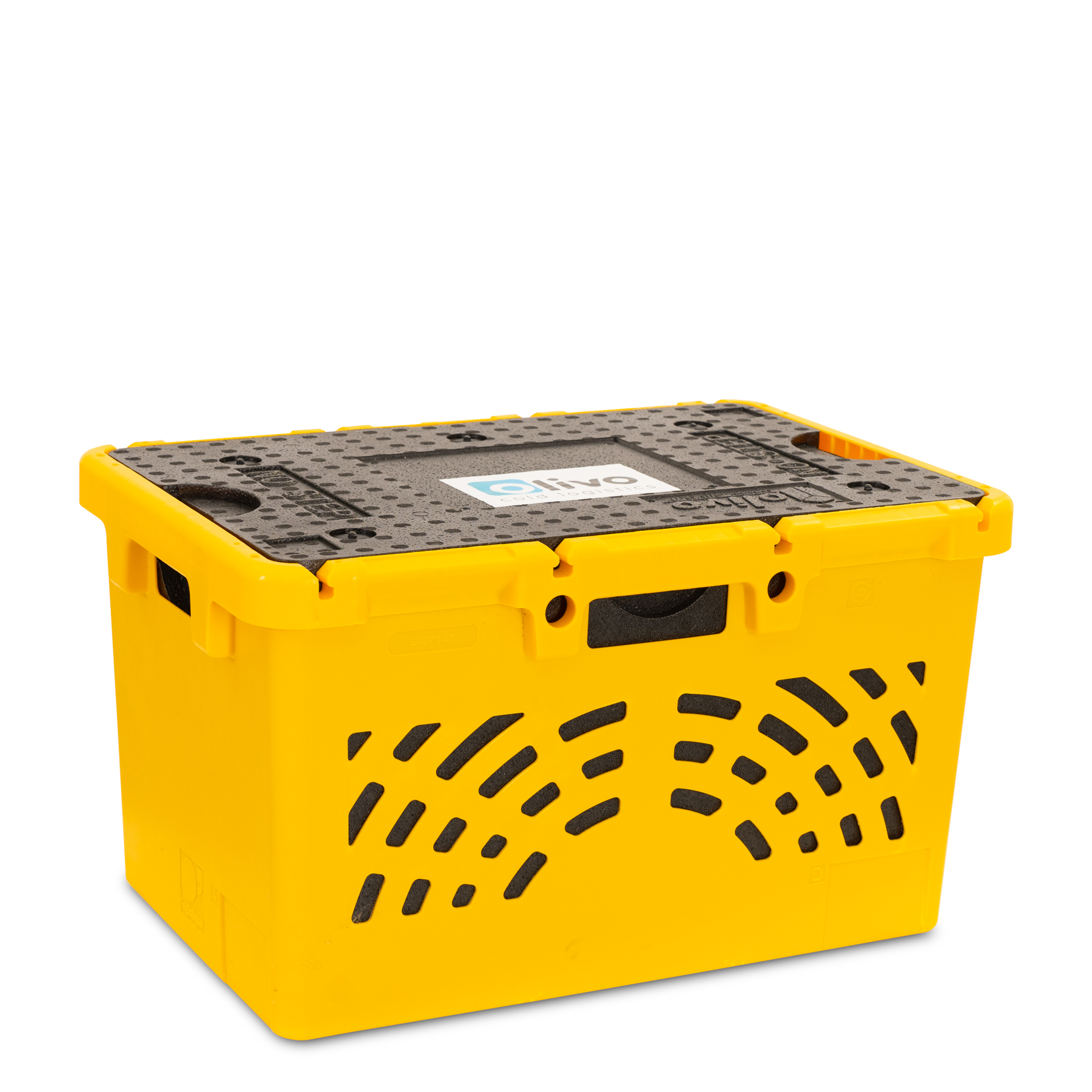

  • INSULATED BOX 34 OLIVO PLASTIC BOX
  • BOX 34
  • INSULATED BOX 34 OLIVO
  • INSULATED BOX 34 OLIVO CONVECTION CORRIDOR
  • INSULATED BOX 34 OLIVO CUSHIONING FOAM
  • INSULATED BOX 34 OLIVO DOLY
  • INSULATED BOX 34 OLIVO HANDLE
  • INSULATED BOX 34 OLIVO OPEN
  • INSULATED BOX 34 OLIVO OPEN TOP64
  • INSULATED BOX 34 OLIVO SOFT STRAP HANDLE
  • INSULATED BOX 34 OLIVO SOFT STRAP
  • INSULATED BOX 34 OLIVO SOFT SHOULDER STRAP
  • INSULATED BOX 34 OLIVO SIDE HANDLE
  • INSULATED BOX 34 OLIVO SIBERCITY LID
  • INSULATED BOX 34 OLIVO PLASTIC BOX

Insulated BOX

BOX 34

  • Ext. dim. (LxDxH) : 555 x 360 x 331 mm
  • Int. dim. (LxDxH) : 490 x 300 x 255 mm
  • Int. Vol. : 34 Liters
  • Unloaded weight : 1.6 Kg
  • Insulating material : Polyurethane foam
  • Wall material : Food-grade polypropylene (PPe)
  • Application sectors : Food, Health et Logistics

Customisation options

Labelling, logotage and specific colours will enable you to improve the management of your fleet and increase efficiency. Contact us directly for any specific customisation project.

Iron-on handling stickers

Marking of the logo in the mass

Accessories compatible with this product

To add an accessory to your quote, please write your request in the text box provided.

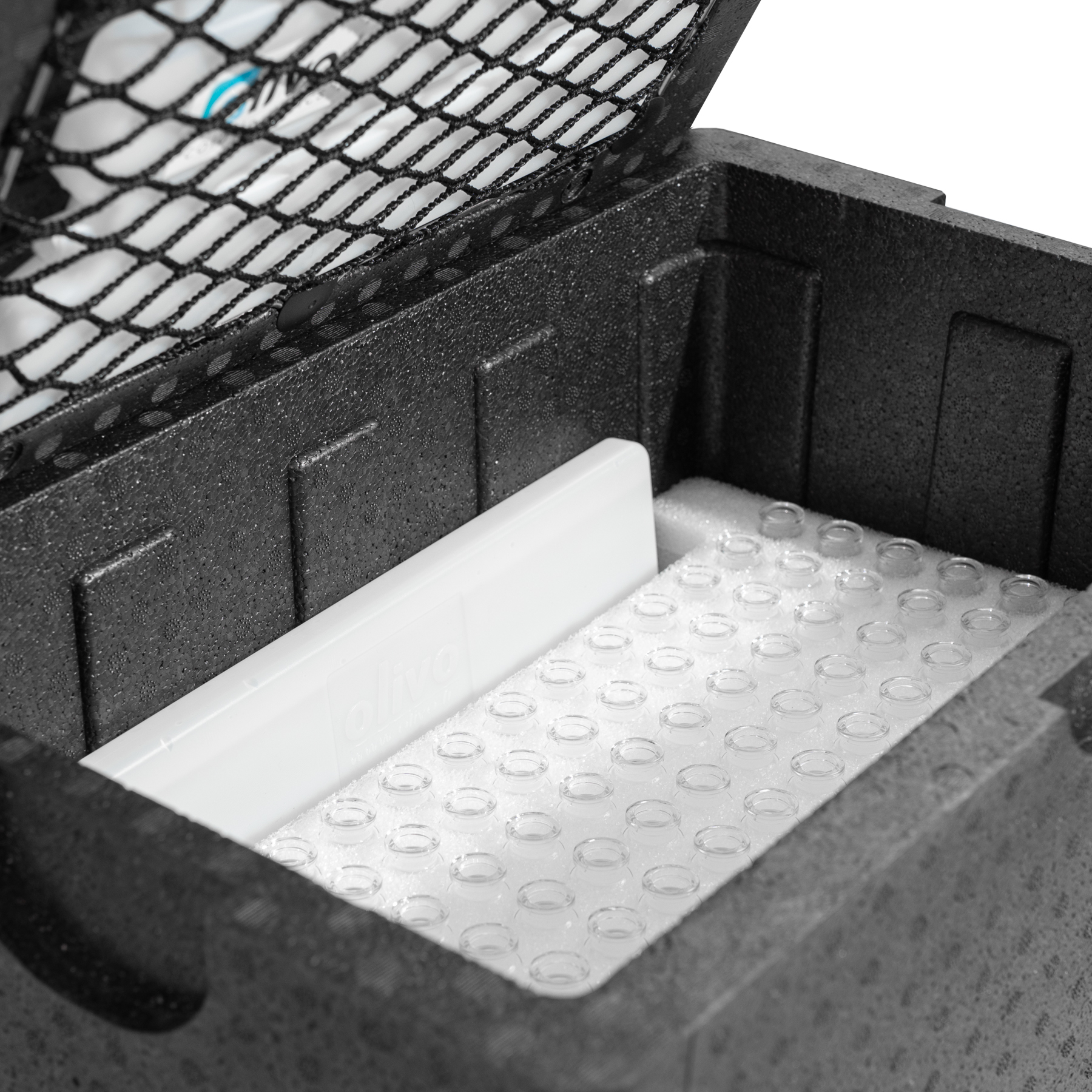

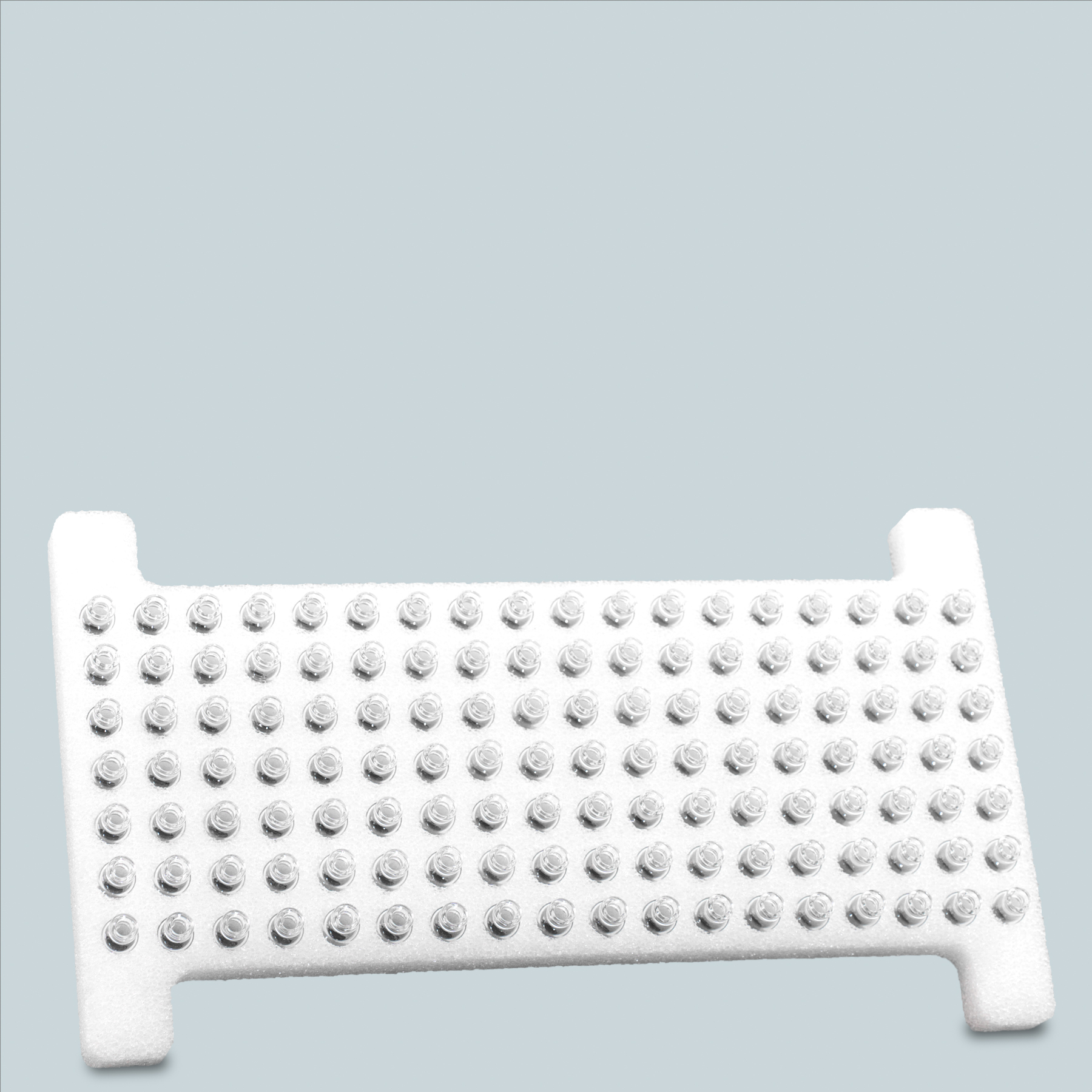

  • Cushioning foam – small

    Accessory Cushioning foam – small

    Cavity diameter : 12 mm

    Number of cavities : 126

    Thickness : on request

    Supplied with a protective veil : PENR foam

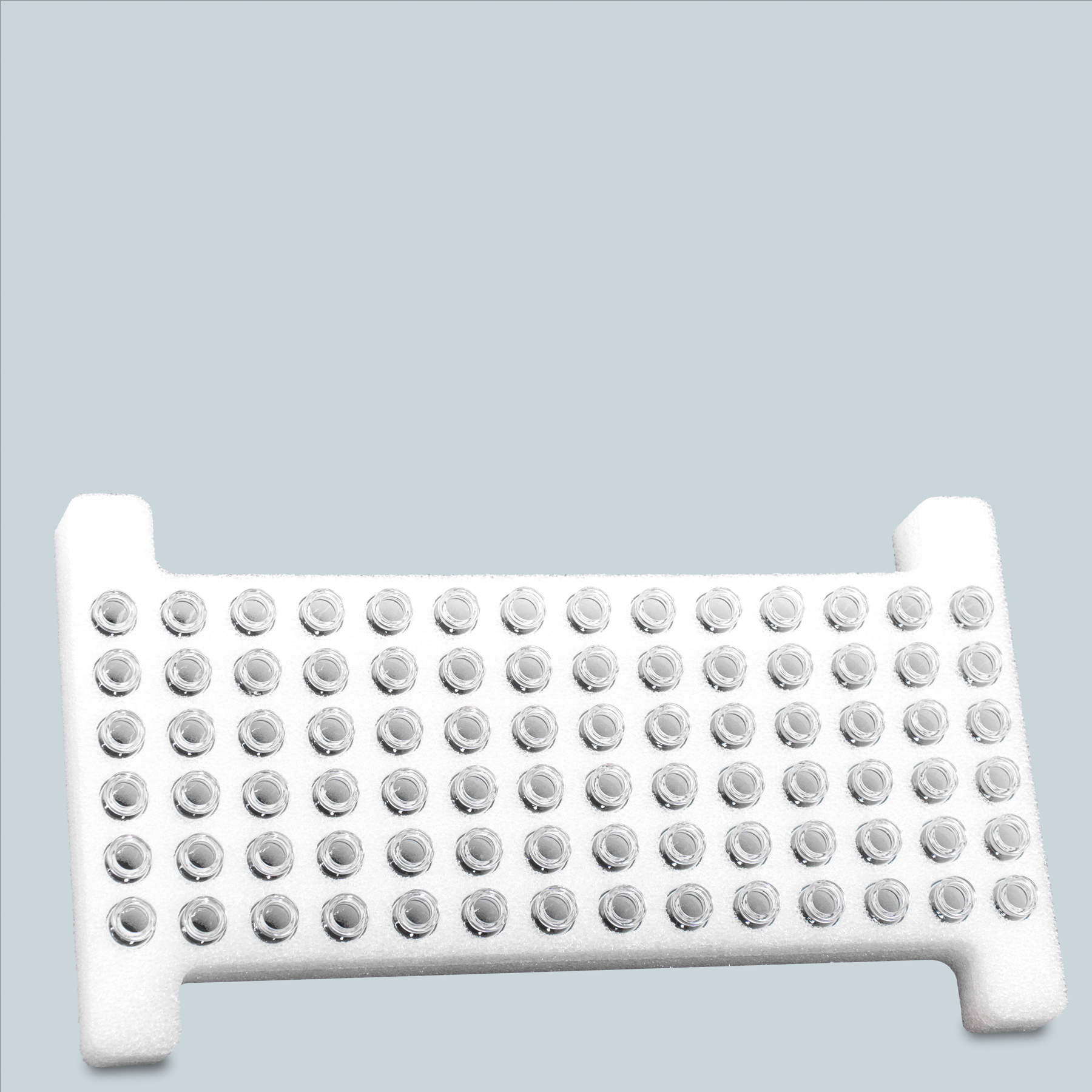

  • Cushioning foam – large

    Accessory Cushioning foam – large

    Cavity diameter : 23 mm

    Number of cavities : 84

    Thickness : on request

    Supplied with a protective veil : PENR foam

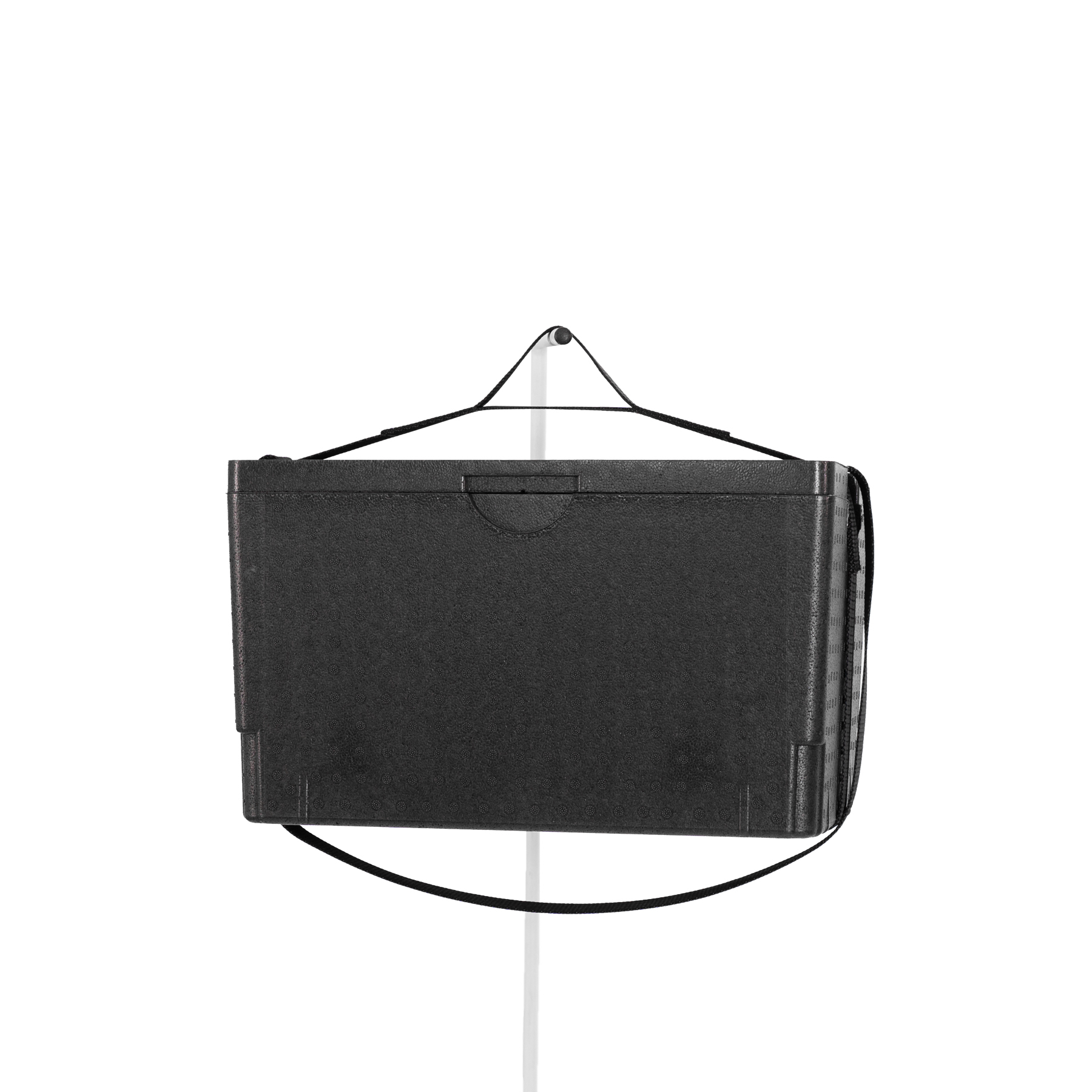

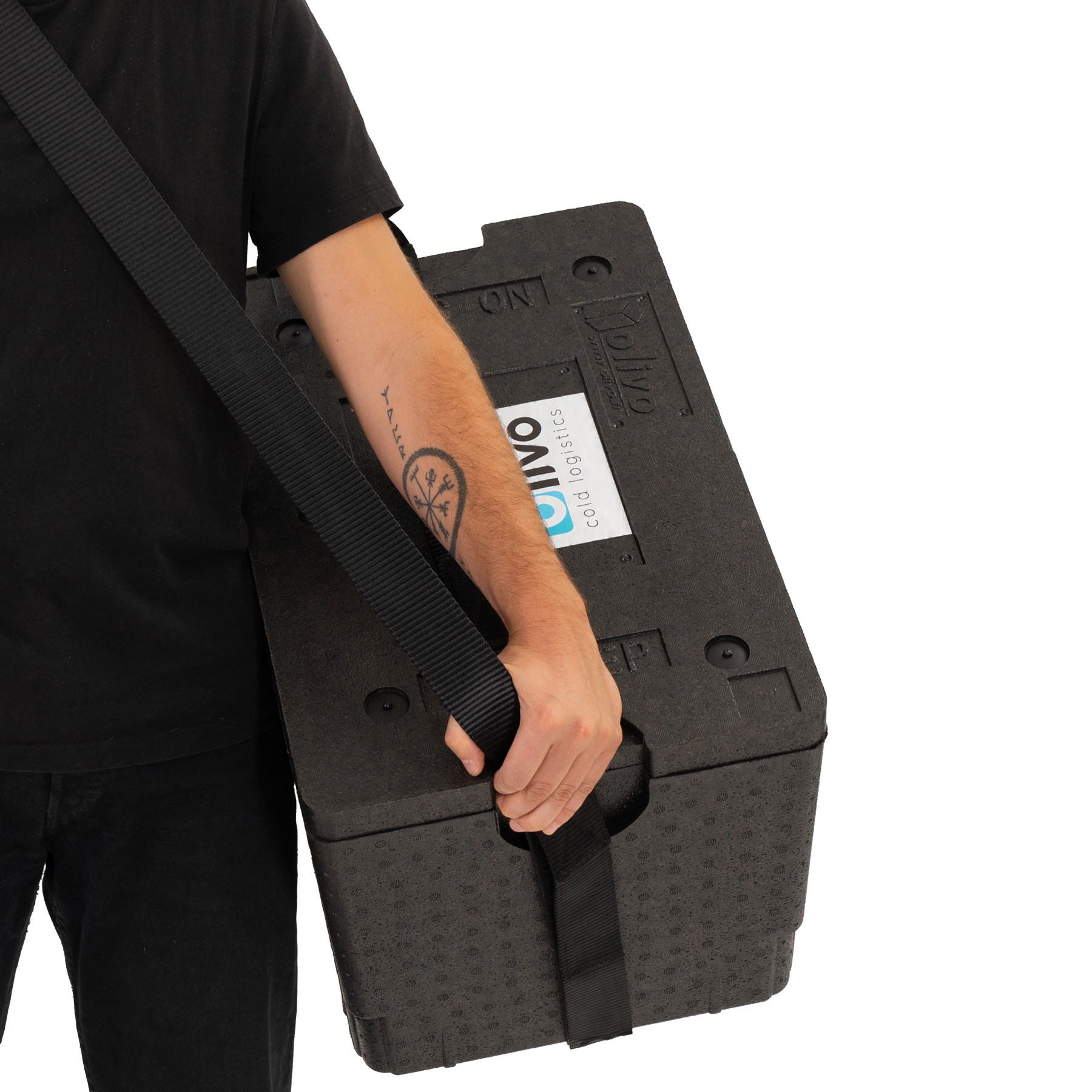

  • Hybrid carrying strap

    Accessory Hybrid carrying strap

    Type of portage : hand and shoulder

    Material : polyamide

    Adjustment system : scratch

Specifications

  • Box and lid in EPP, expanded polypropylene
  • Stackable boxes

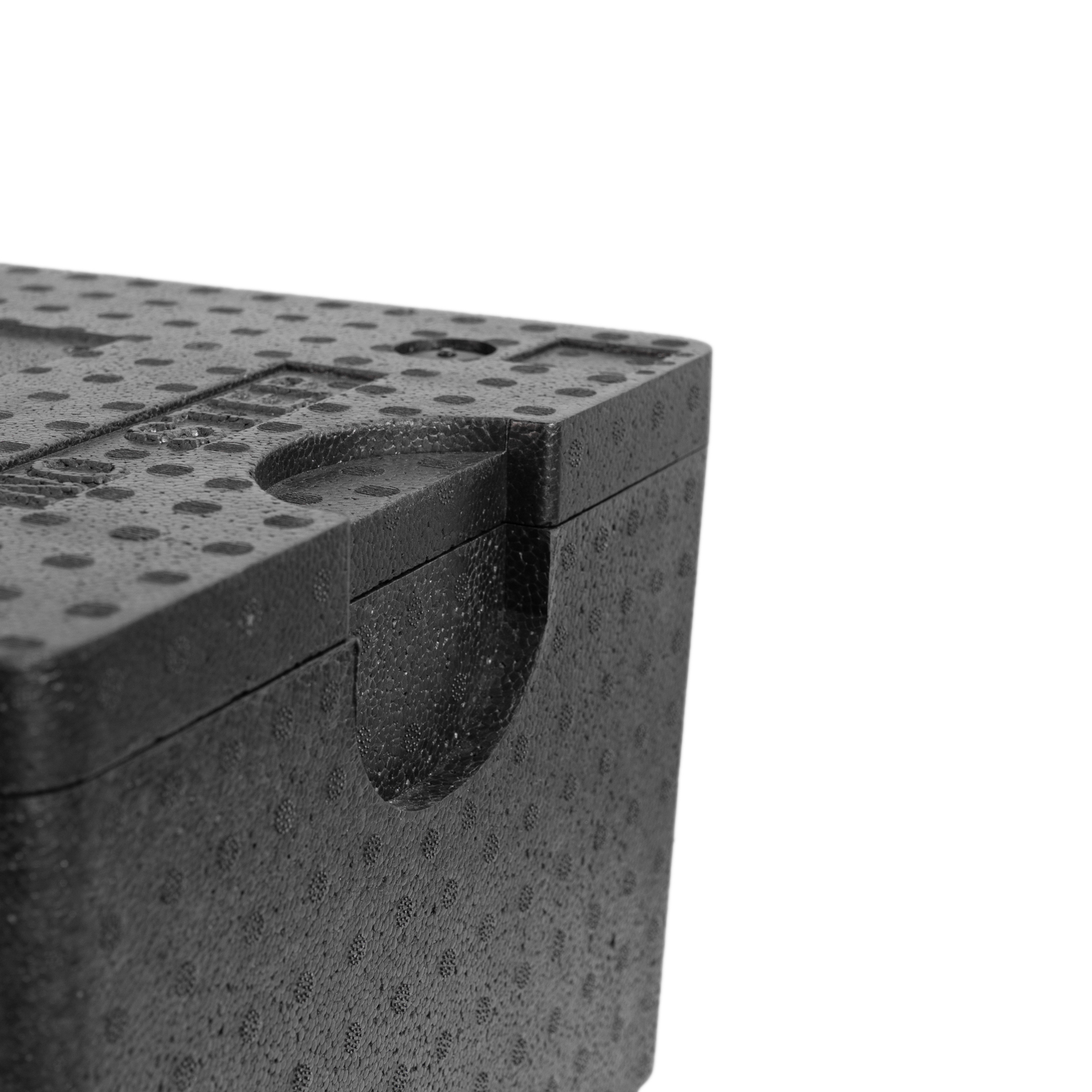

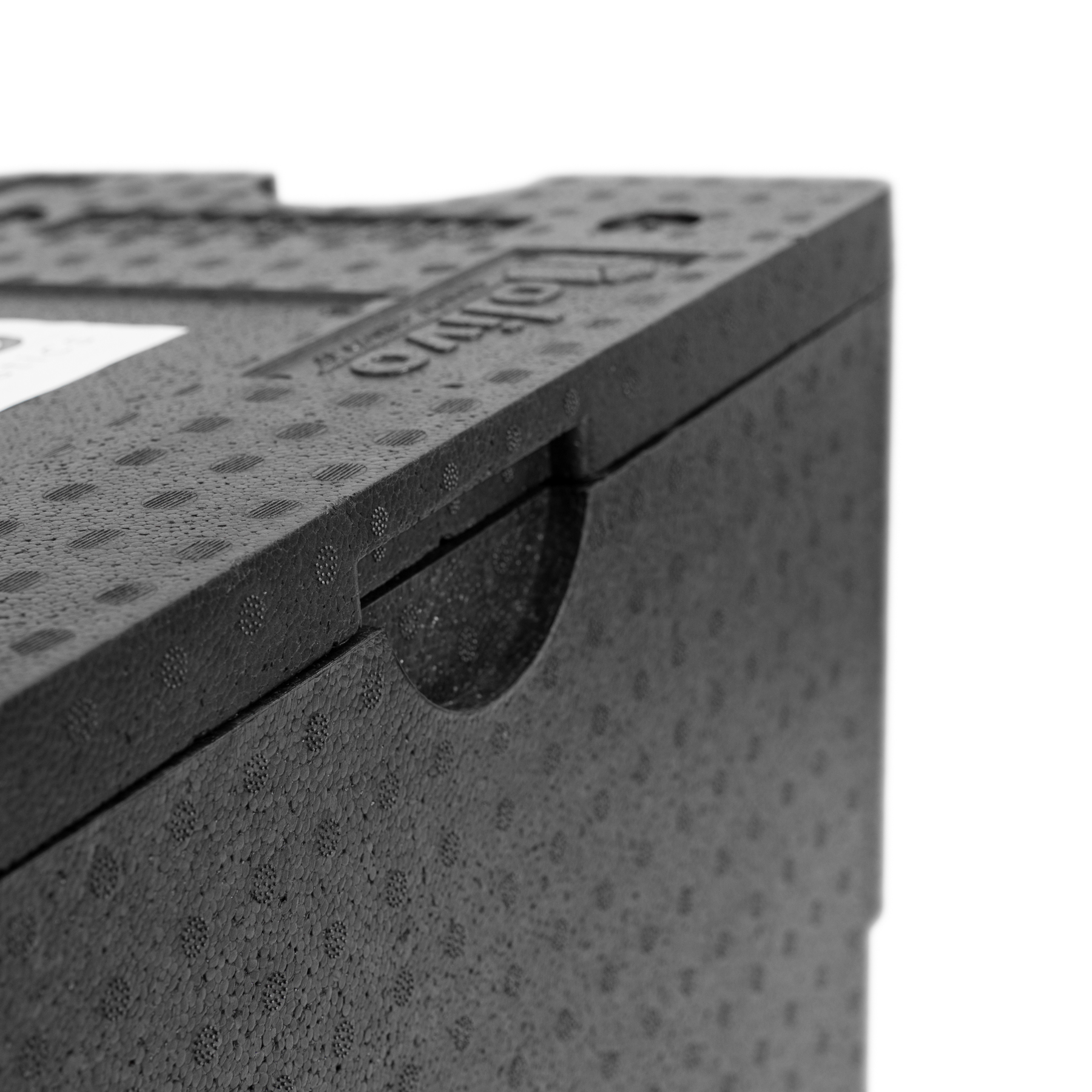

  • 2 side grips
  • Net for eutectic plates or dry ice
Download the data sheet

Frequently asked questions about this product

  • Isothermal containers

    Can eutectic plates be stacked in a BOX ?

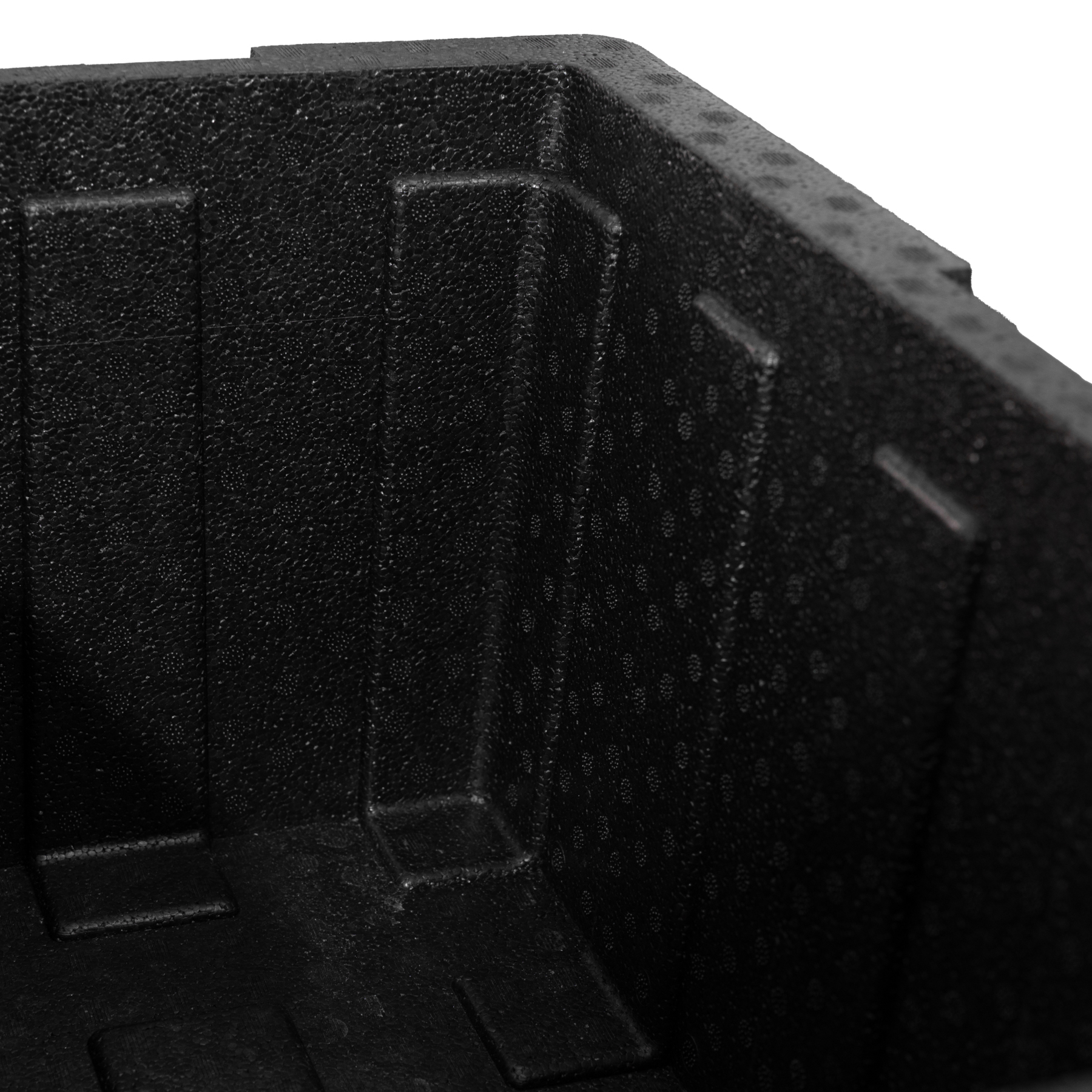

    It is not recommended that you place eutectic plates one on top of the other. The purpose of a eutectic plate is to diffuse cold. And that diffusion will not be optimal if the plates are stacked. Each BOX is designed with a specific space for the eutectic plate. This can be a net under the lid or moulded-in slots. These locations are chosen to optimise the diffusion of the cold by creating convection channels that allow the cold air to circulate evenly.

  • Isothermal containers

    Is it possible to transport dry ice in a BOX 34 ?

    Yes. Olivo BOX containers are insulated boxes made of expanded polypropylene [EPP], a strong, 100% recyclable material. The mechanical properties of EPP [strength and stability] allow you to transport sachets of pellets directly in the BOX, with no need for any intermediate protection. In contact with cold, the expanded polypropylene hardens to become even stronger.

  • Isothermal containers

    Can I use BOX containers on my cargo bike ?

    Olivo’s BOX containers are designed and made in a universal logistics standard format, Euronorm 600 × 400 mm, and are suitable for cargo bikes and trikes. BOX containers are a solution particularly suited to last mile cold chain logistics, thanks to:

    • Their ergonomics – they are easy to handle and carry;
    • The light weight of the BOX containers, which reduces the overall load to be carried on the bike.

    Combined with the right cold source, a BOX can be used to transport chilled and frozen products. The quantity and the type of cold source will depend on your logistics project. The entire Olivo team is here to help you plan your cold chain logistics.

Products you might like

  • BOX 64

    Ext. dim. : 595 x 395 x 455 mm,

    Volume : 60 L,

    Cold source : eutectic plate TOP 64,

    Logistics format : Quarter Euro-pallet 800 x 1200

    View details
  • BAC 25

    Ext. dim. : 490 x 510 x 663 mm,

    Volume : 26 L,

    Cold source : eutectic plate TOP 25,

    View details
  • BAC 55
    logoATP 1

    Ext. dim. : 600 x 500 x 580 mm,

    Volume : 53 L,

    Cold source : eutectic plate TOP 55,

    Logistics format : Quarter ISO Pallet 1000 x 1200

    View details
See all products

Box 34 – catering cool box

The catering cool box is a box created for the following sectors: food, drinks, catering industry, health and logistics. Light weight , easy to handle, solid and stackable, it meets the expectations of professionals looking for a means of transport that is practical, ecological and reliable. Its small size offers multiple possibilities: stackable in a vehicle, transportable on a 2-wheeler and easily handled with its 2 handles and its carrying strap made for delivery person.

The characteristics of the catering cool box

  • External dimensions (L x W x H): 555 x 360 x 331 mm
  • Internal dimensions (L x W x H): 490 x 300 x 255 mm
  • Empty weight: 1.5 kg
  • Internal volume: 34 L
  • Temperature management: Fresh Frozen Ambient

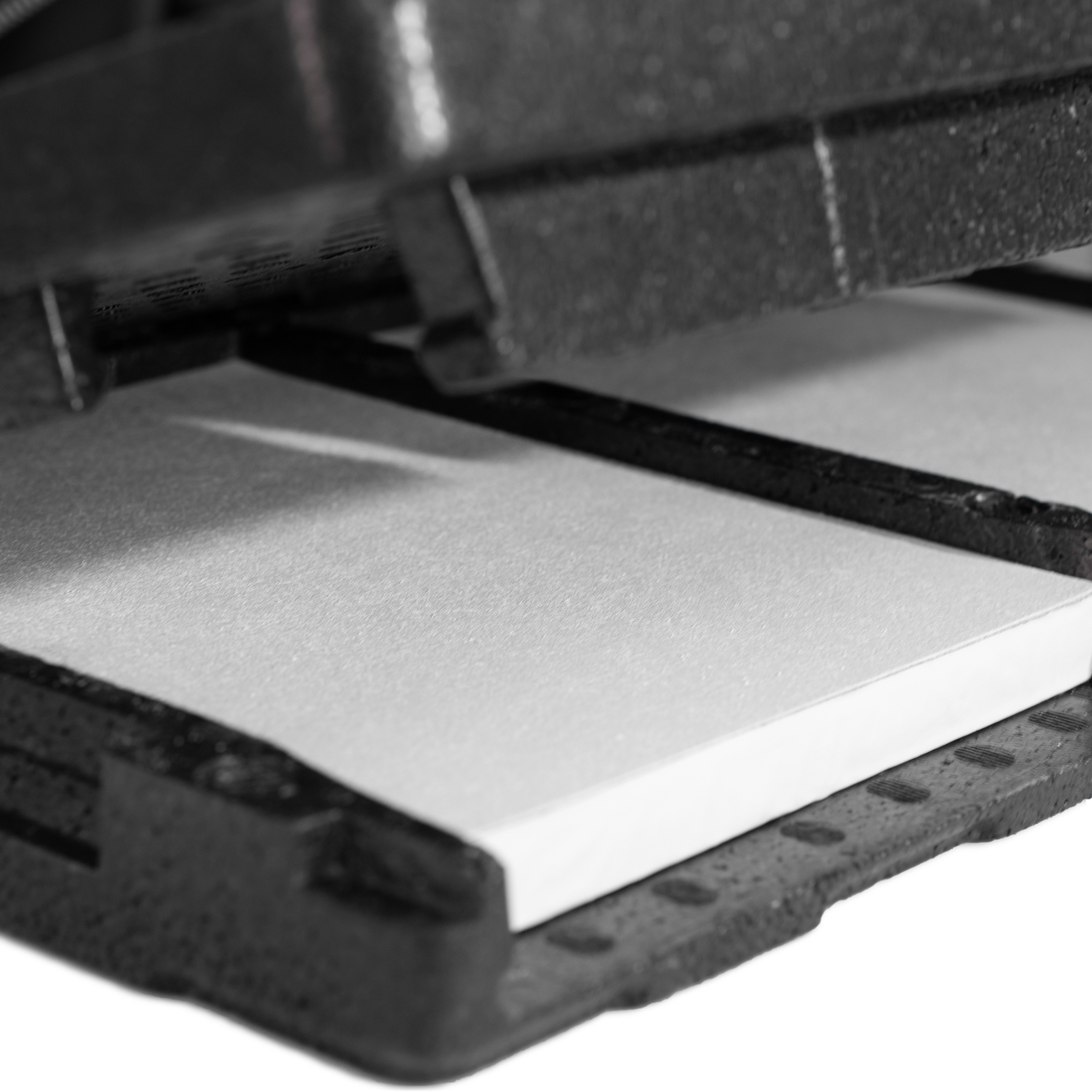

  • Cold sources: eutectic plate and SiberCity: mixed dry ice injection cover (suitable fresh and frozen, no hot).
  • The single-piece wall in expanded food polypropylene, no plastic
  • Easy to handle and carry even with a full load
Temperature resistance-80°C/+70°C
Double-wall thickness≈ 35 mm

Among the options of the catering cool box you will find:

  • The catering cool box can be personalized with signage, logo in the mass, or tracking
  • Foam padding
  • Hybrid carrying strap: hand and shoulder with velcro adjustment system
