Accessory Removable rolling base
Diameter : ø 100 mm
Height with base plate : 128 mm
Treatment : galvanised
Insulated BAC
BAC 55
- Ext. dim. (LxDxH) : 600 x 500 x 580 mm
- Int. dim. (LxDxH) : 415 x 315 x 410 mm
- Int. Vol. : 53 Liters
- Coef.K : 0.39 W/m².°C
- Unloaded weight : 17 Kg
- Insulating material : Mousse polyuréthane
- Wall material : Polypropylène alimentaire (PPe)
- Logistics format : Quarter ISO Pallet 1000 x 1200
- Application sectors : Cryogenics, Food, Health et Logistics
-
Certification :
Customisation options
Labelling, logotage and specific colours will enable you to improve the management of your fleet and increase efficiency. Contact us directly for any specific customisation project.
Custom RAL colours available
Iron-on handling stickers
Marking of the logo in the mass
Engraved nameplate
Accessories compatible with this product
To add an accessory to your quote, please write your request in the text box provided
Specifications
With external dimensions of 600 x 500 x 580 mm, this insulated container has an internal volume of 53 litres and weighs 16 kg when empty. It is ideal for transporting pharmaceutical products and food distribution. It uses the Top 55 eutectic plate.
The BAC55 is the perfect solution for those looking for a robust, high-performance, Made In France storage option. Made from food-grade polyethylene, it features convection grooves, a moulded-in hinged box/lid system that opens to 115° and a riveted label holder.

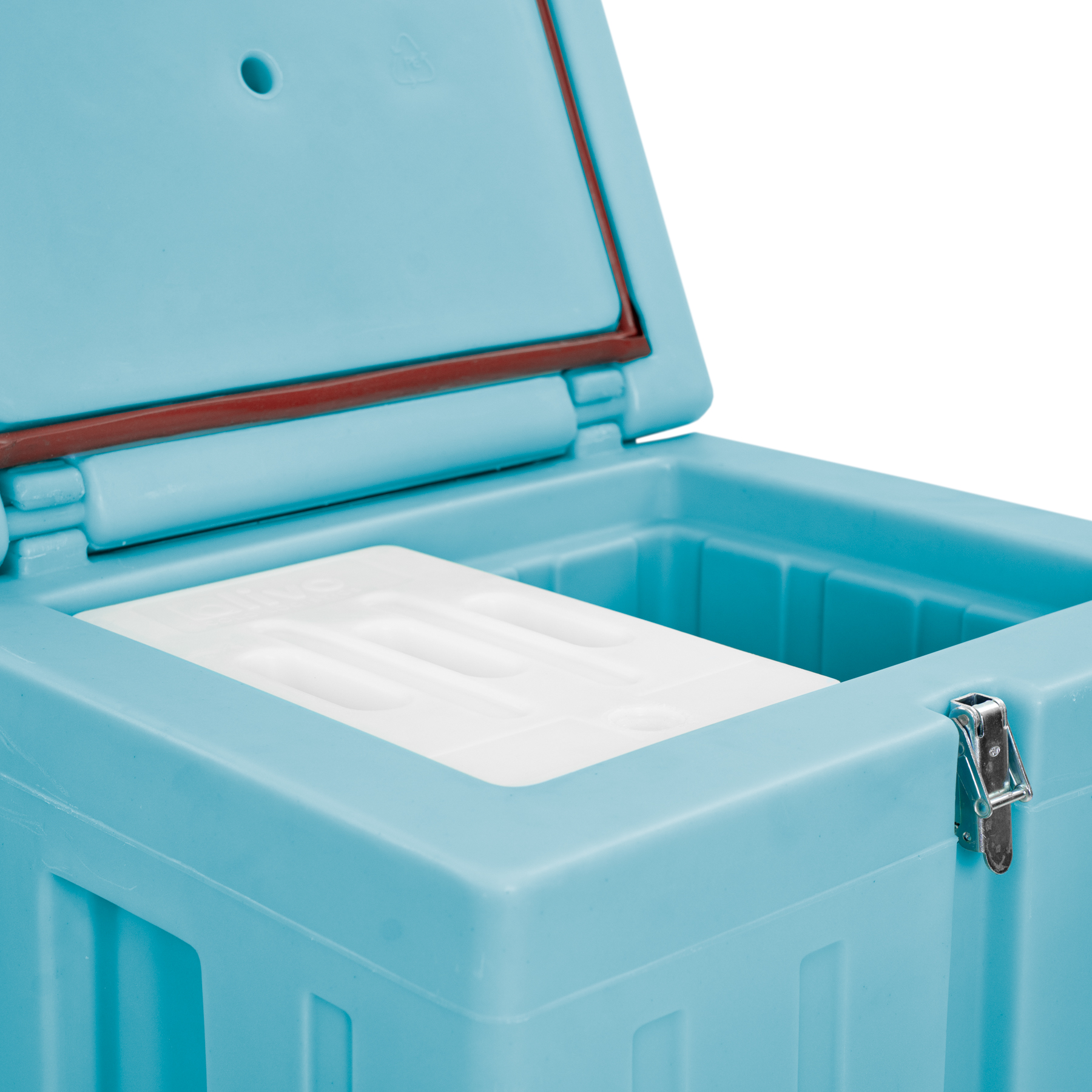

The BAC55 is stackable thanks to moulded bosses. With a total internal volume of 53 litres, it is perfect for storing all types of heat-sensitive products. The complete temperature maintenance solution works thanks to the combination of the BAC55 and its TOP55 eutectic plate.
Order your BAC55 today! Up to 2 eutectic plates can be used simultaneously. The amount of cold you need depends on your target holding time.
Contact our team for personalised support.
- Body and lid in one-piece rotational-moulded polyethylene. Insulated with expanded polyurethane foam.

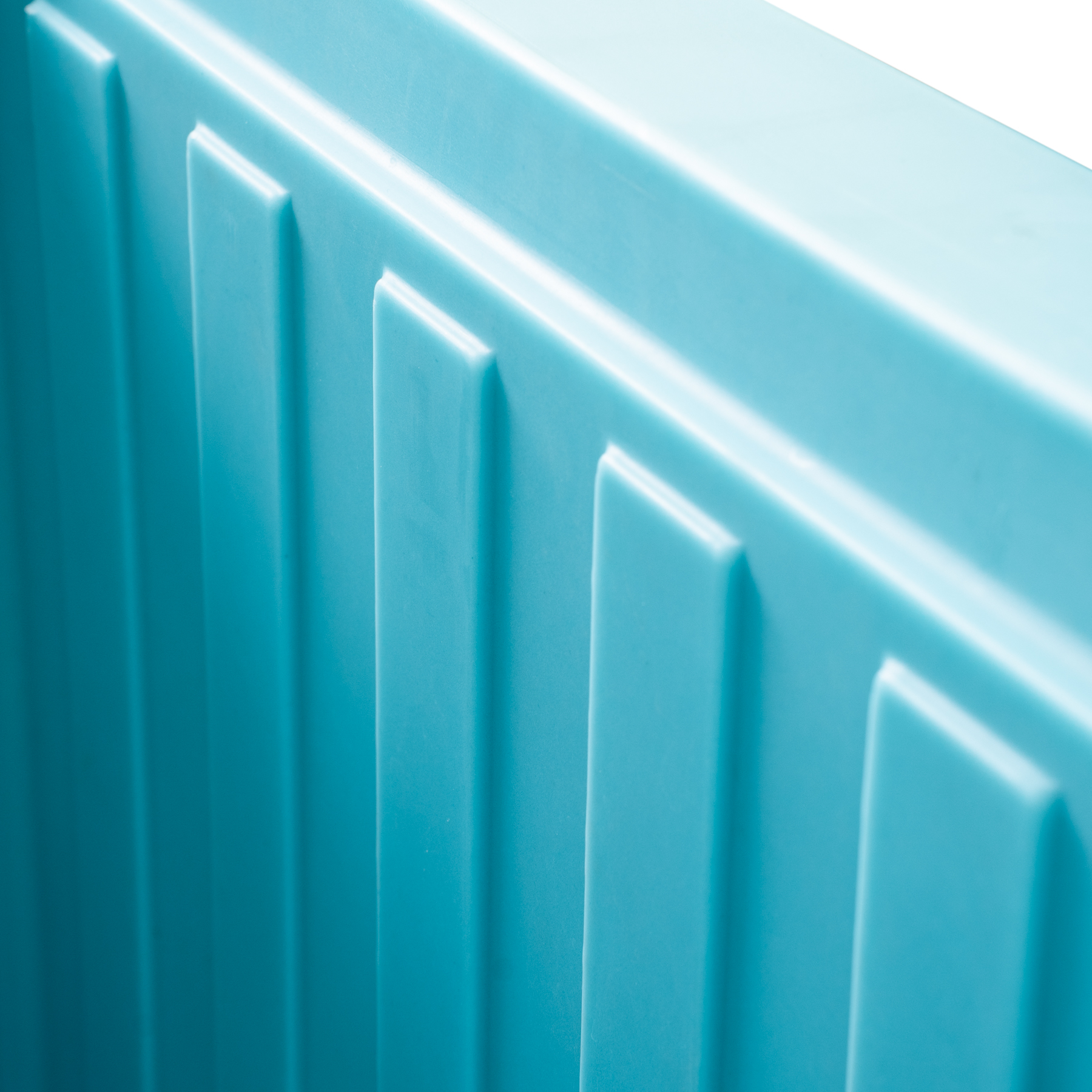

- Internal convection grooves.
- Moulded eutectic plate support.

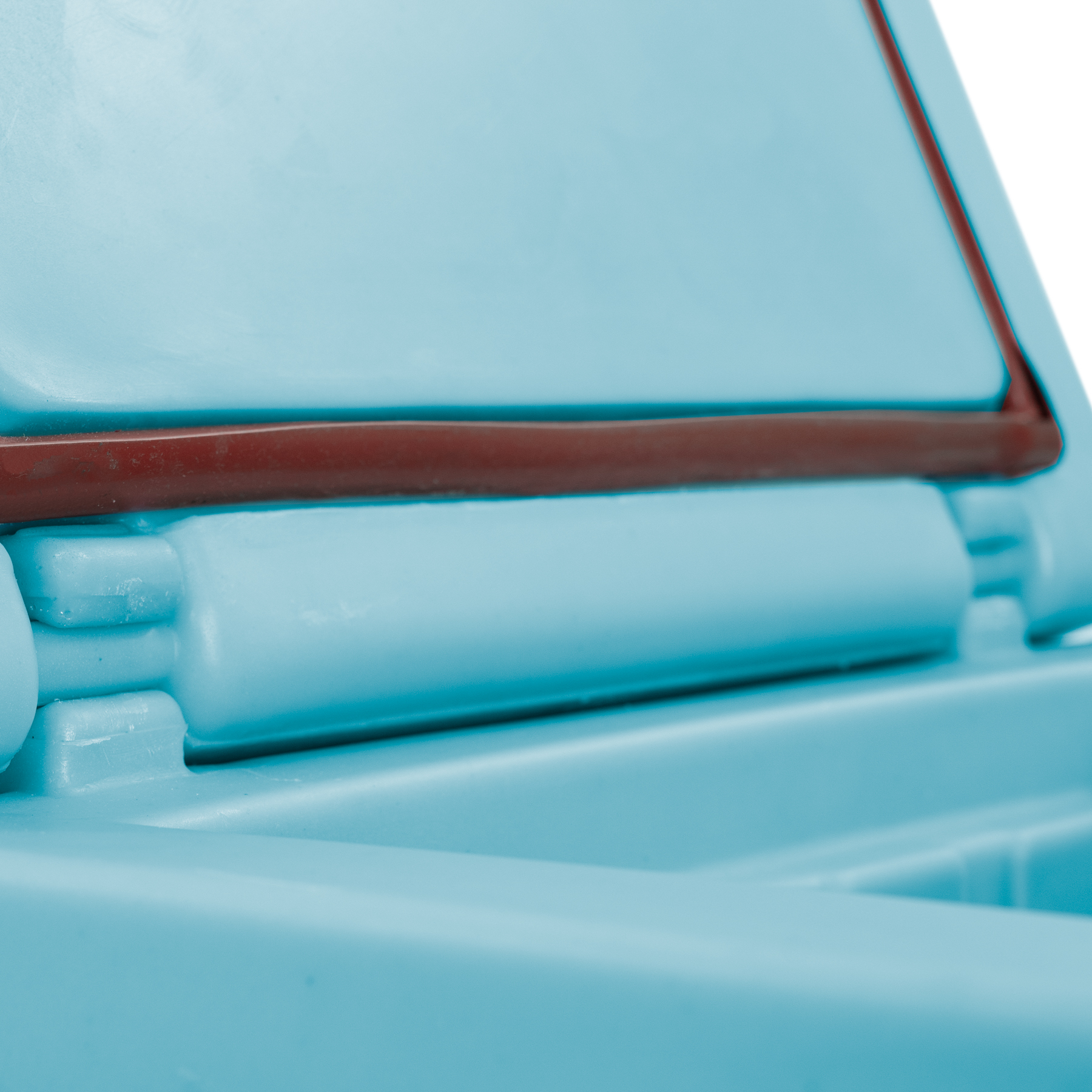

- Moulded body/lid hinge, opening at 115°.

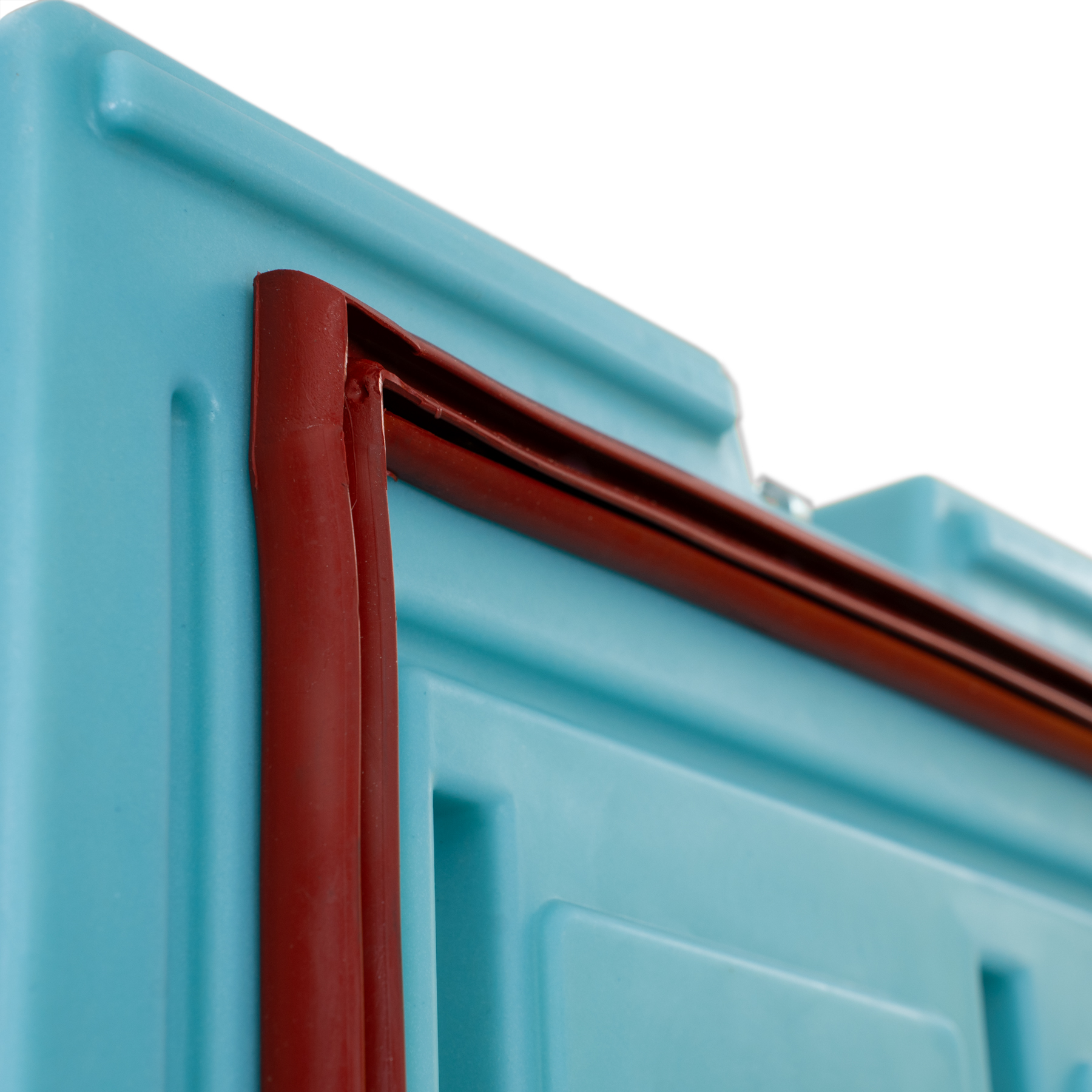

- Tubular silicone gasket.

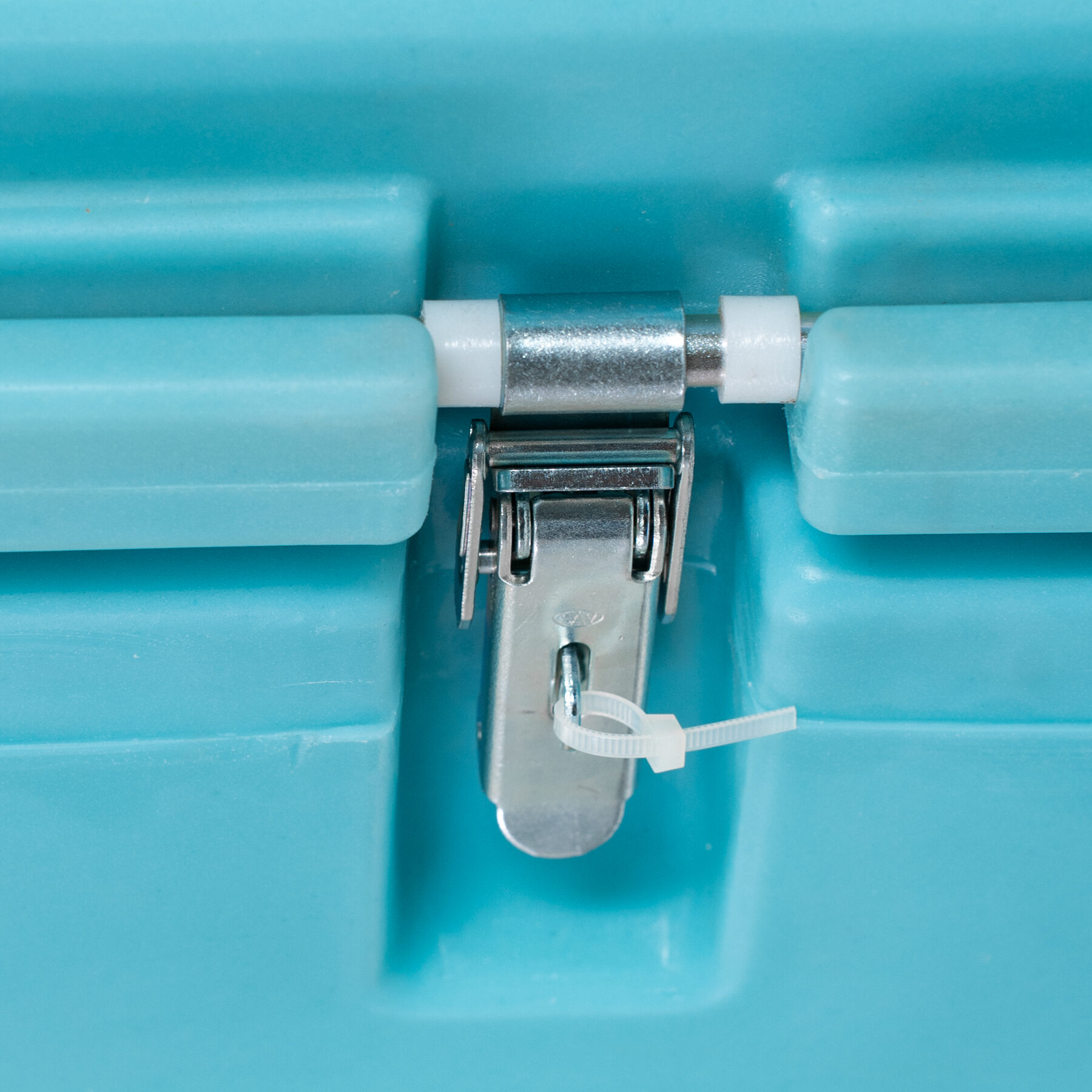

- Recessed locking toggle.

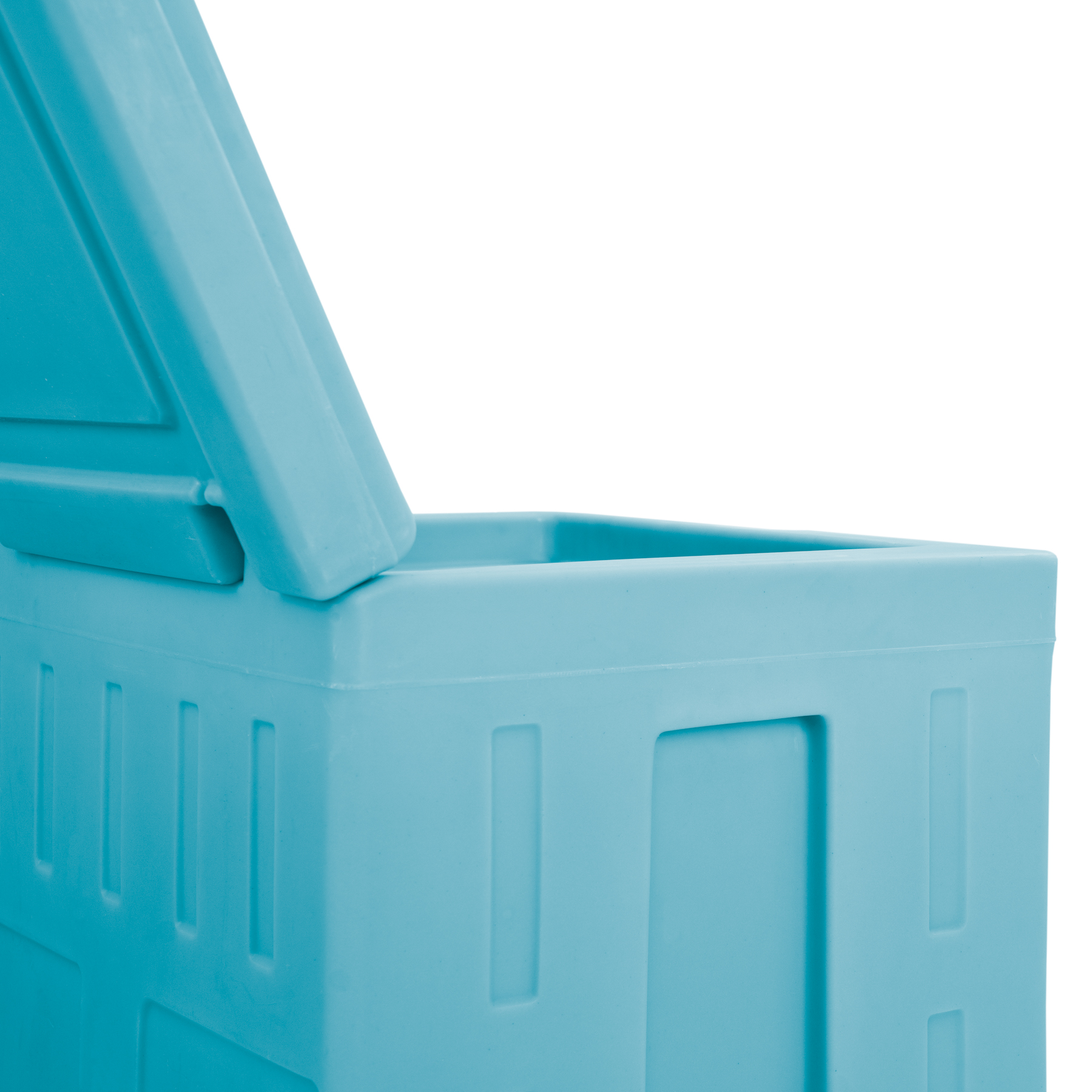

- 2 side grips from moulding.

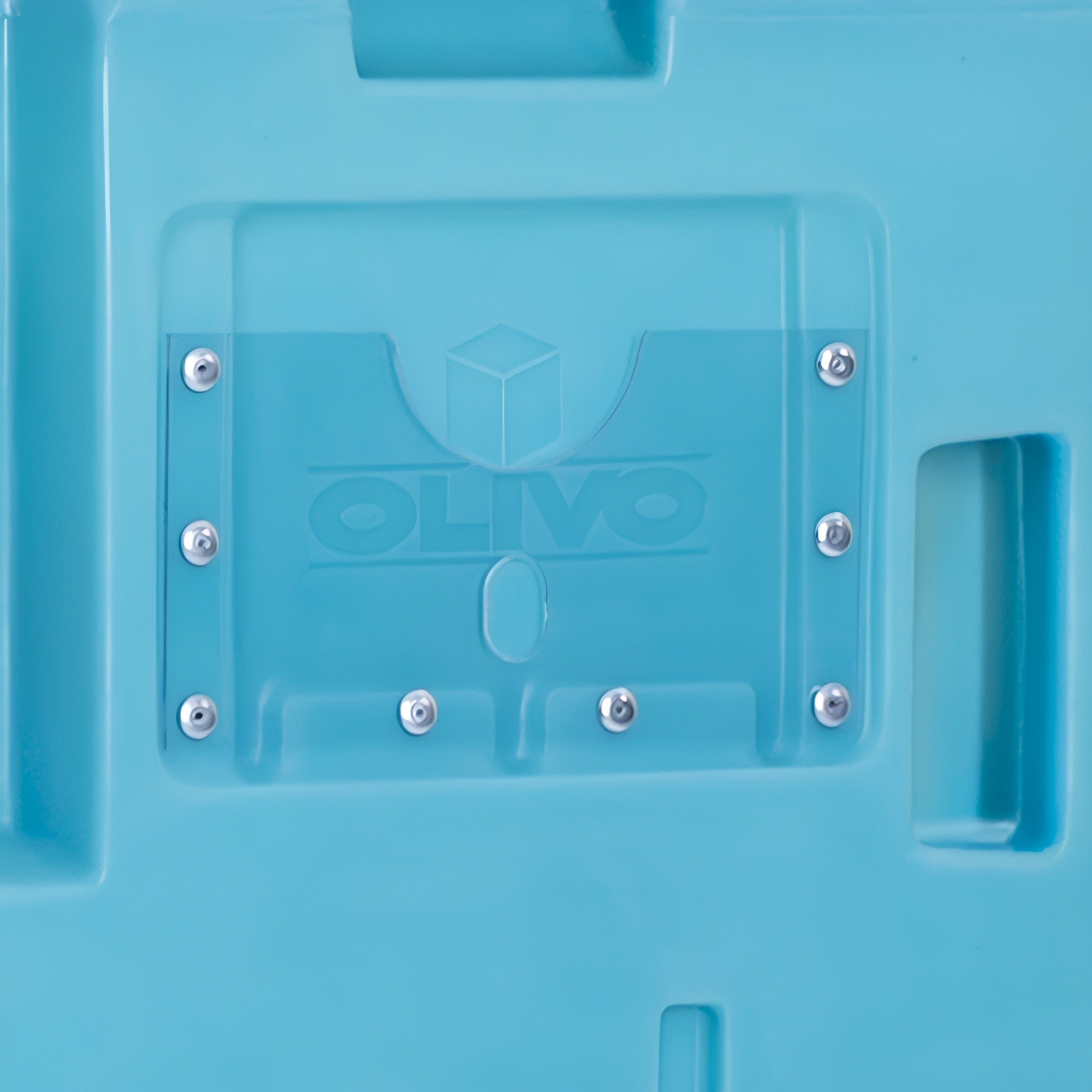

- Recessed label holder.
- Stackable bins with moulded-in bosses.
Frequently asked questions about this product
-
Personalization
Is it possible to order made-to-measure containers ?
Olivo’s solutions are designed and made to meet the cold chain logistics requirements of a maximum number of users. The sizes therefore correspond to international standards for logistics: Euro pallet, ISO pallet, Asia pallet. Our different models are fall into three separate ranges for which we rarely make made-to-measure containers. However, depending on what your project involves and the volumes to be produced, we can work with you to see if a custom solution is possible.
-
Personalization
Can the insulated container be pierced or drilled through?
No. Olivo strongly advises against piercing or drilling into the wall of an insulated container as it would no longer be intact, which would affect its tightness and impair its thermal insulation performance. If you wish to personalise your container, you should contact your account manager, who will help you to find the right solution.
-
Isothermal containers
What preventive operations are recommended to guarantee the longevity of an insulated container?
In order to prolong the useful life of insulated containers, Olivo recommends certain preventive actions:
- Cleaning and disinfection of the equipment based on a washing plan defining the method and frequency;
- Lubrication of the closing systems, casters and brakes;
- Checking the tyres on the casters for wear;
- Annual technical inspection: checking the condition of the inner and outer walls, the seals, etc.
