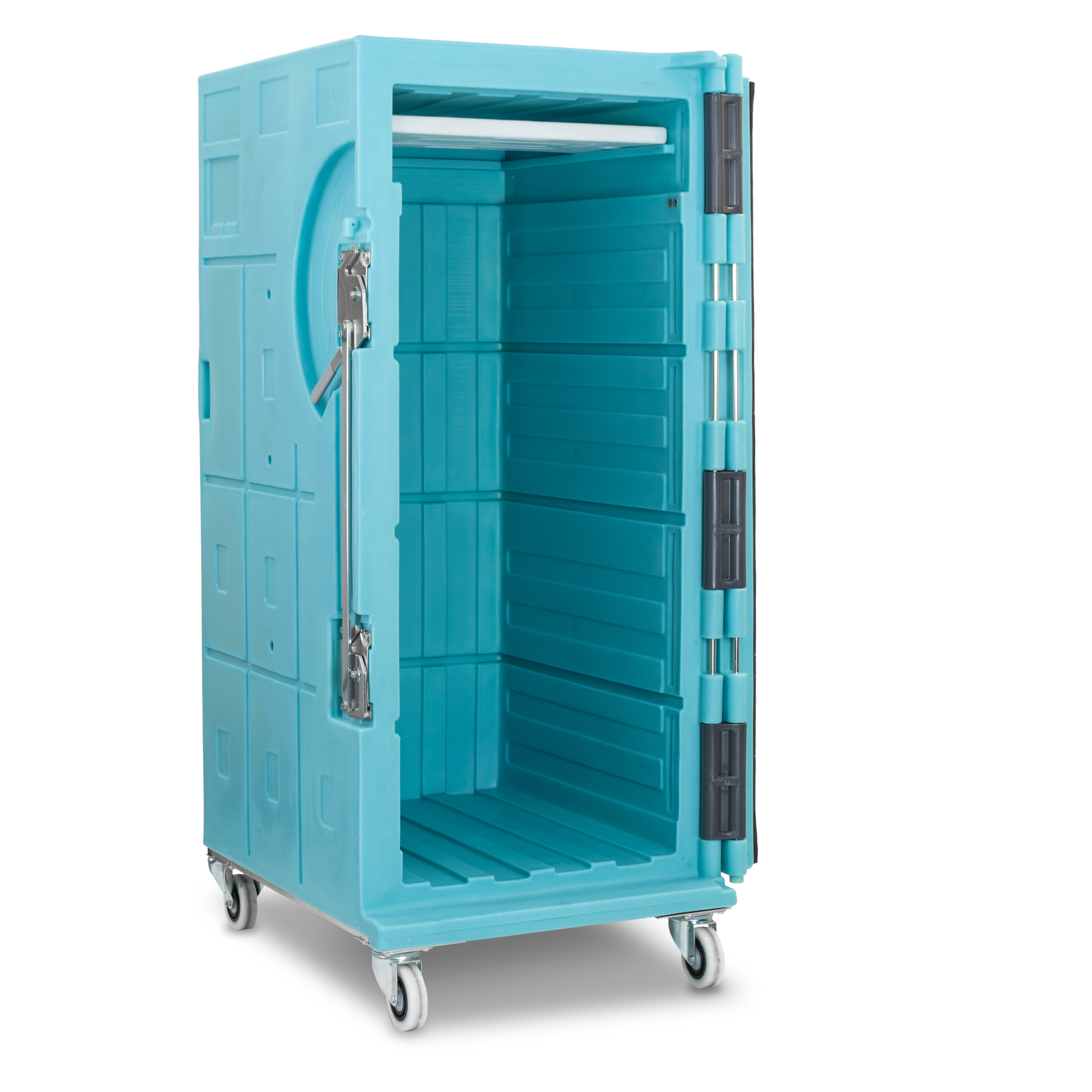

Accessory Eutectic plate rack TOP 780
Height : 1585 mm
Width : 708 mm
Depth : 980 mm
Number of plates stored : up to 40
Handling handles : 4
Tare weight : 88 kg
Loaded weight : 428 kg
Insulated ROLL
ROLL 780 SEA PRODUCTS
- Ext. dim. (LxDxH) : 800 x 1000 x 1900 mm
- Int. dim. (LxDxH) : 610 x 820 x 1420 mm
- Int. Vol. : 710 Liters
- Coef.K : 0.33 W/m².°C
- Unloaded weight : 137 Kg
- Insulating material : Polyurethane foam
- Wall material : Food grade polyethylene
- Logistics format : Euronorm crate 600 x 400
- Application sector : Food
-
Certification :
Customisation options
Labelling, logotage and specific colours will enable you to improve the management of your fleet and increase efficiency. Contact us directly for any specific customisation project.
Custom RAL colours available
Iron-on handling stickers
Engraved nameplate
Marking of the logo in the mass
Accessories compatible with this product
To add an accessory to your quote, please write your request in the text box provided.
-
-
Accessory Polyethylene waste water retention tank
Removable bin :
-
Accessory Intermediate grille
Finish : polyamide-coated steel
Dimensions : according to ROLL model
Specifications
Double-wall rotomoulded PE/PU foam injection isothermal roll, a process in which Olivo is world leader. The one-piece structure ensures watertightness and avoids thermal bridges.

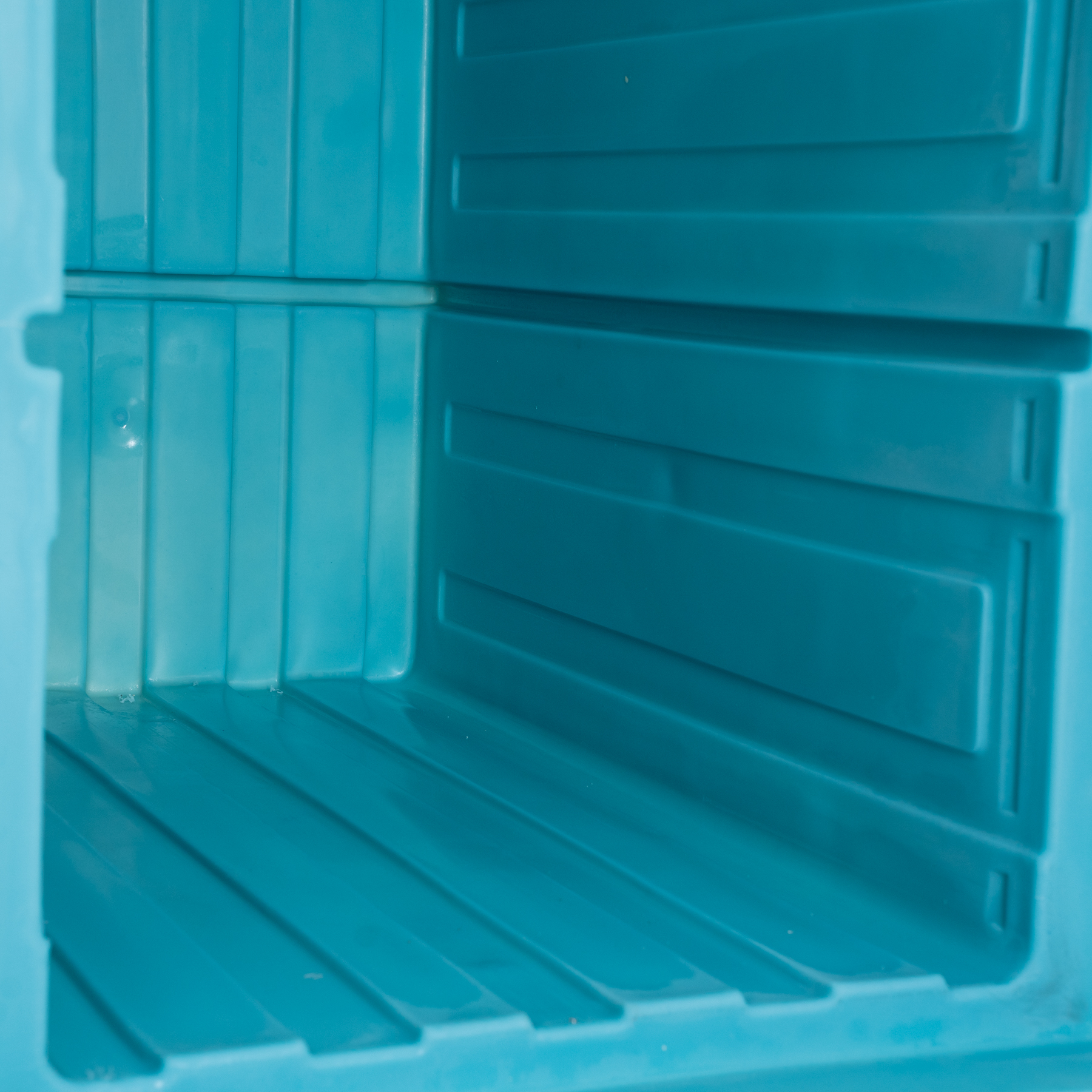

The inside of the box is grooved to create convection corridors to promote cold circulation.
Designed and manufactured in France
Our factory is located in the heart of the Saint-Etienne region, upstream from the Gorges de la Loire. For over 65 years, we have been working to keep our production facilities in Rouchonne, the cradle of plastics processing and industrial know-how.
Durability & maintenance
The rotational moulding process makes it easy to re-weld the material in the event of breakage. Regular maintenance and careful handling will extend the product’s useful life.
Know-how
Making an insulated container requires no fewer than 200 manual operations. These skills and techniques contribute to the quality and sturdiness of Olivo containers.
- One-piece rotational moulding. Grooved interior walls to facilitate convection

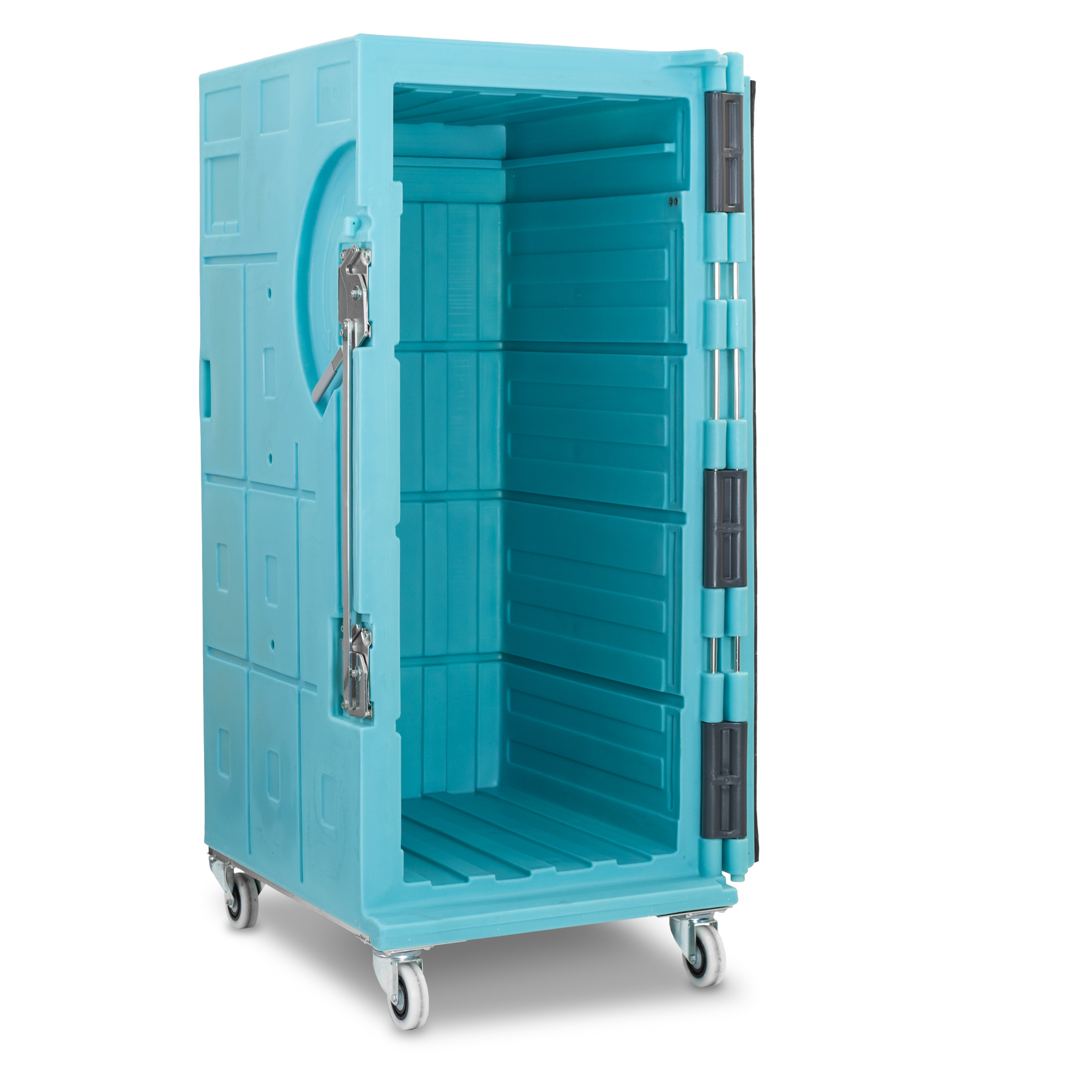

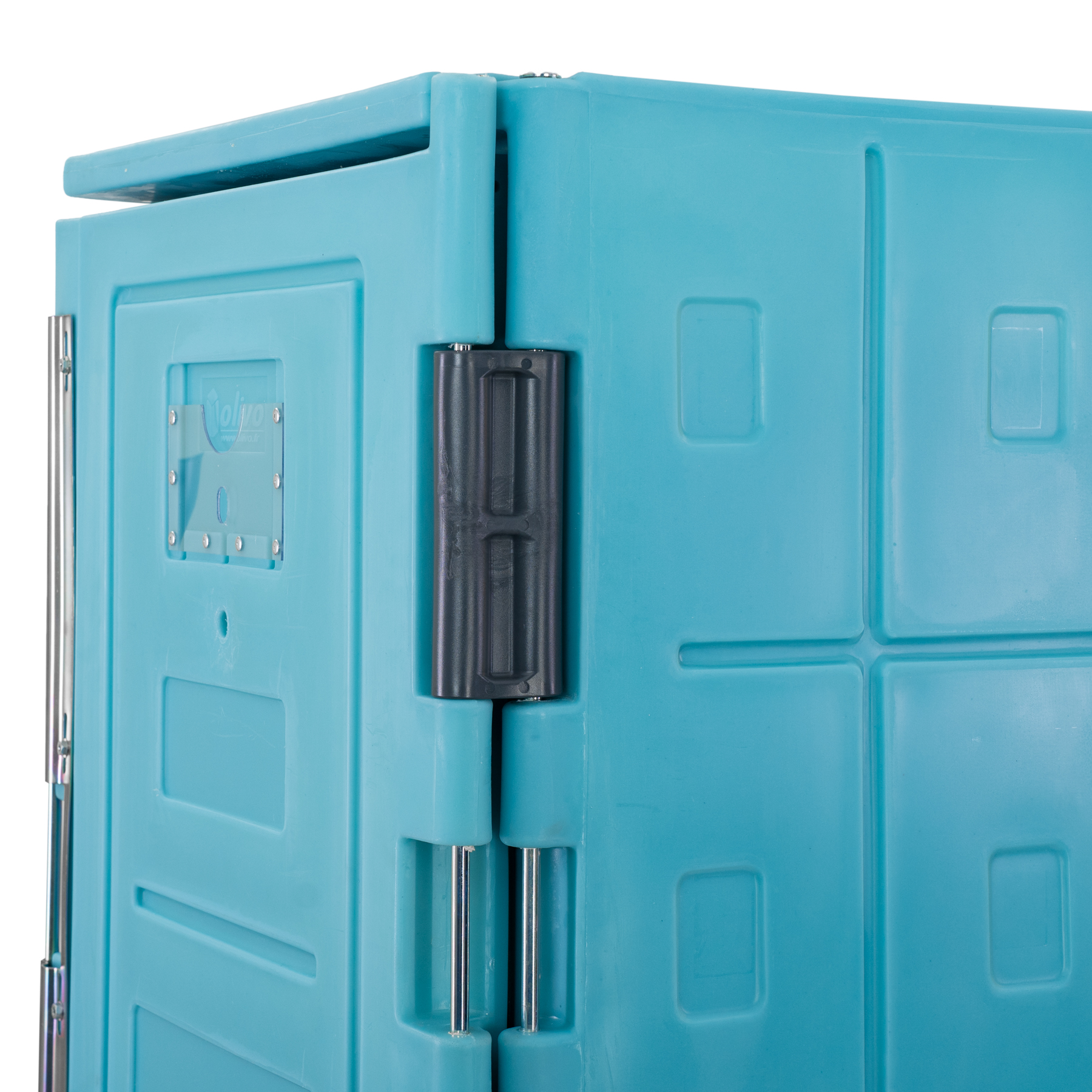

- Double axles door hinge. Door opens to 270°

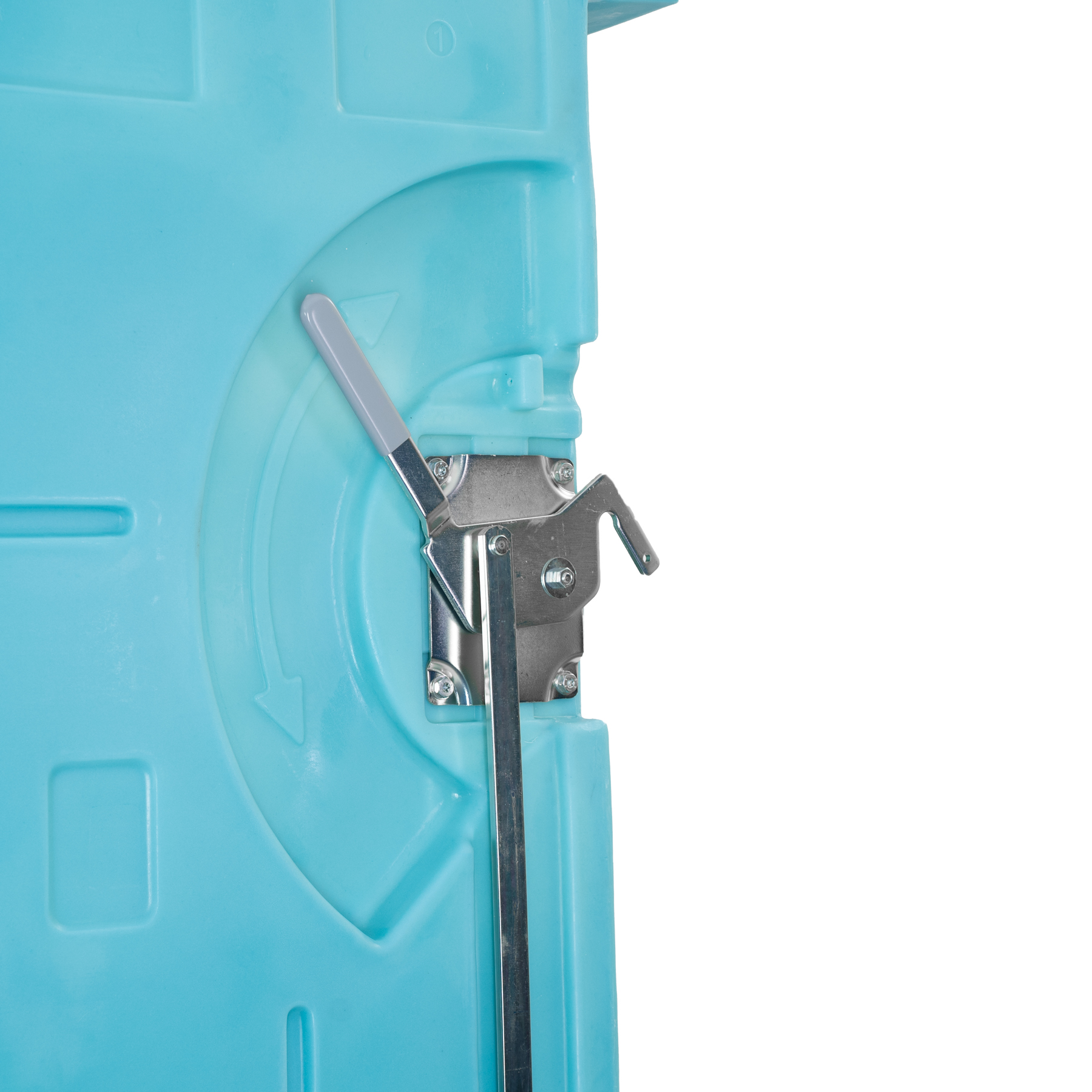

- 2-points «pelican» fast closing system, rustproof treated

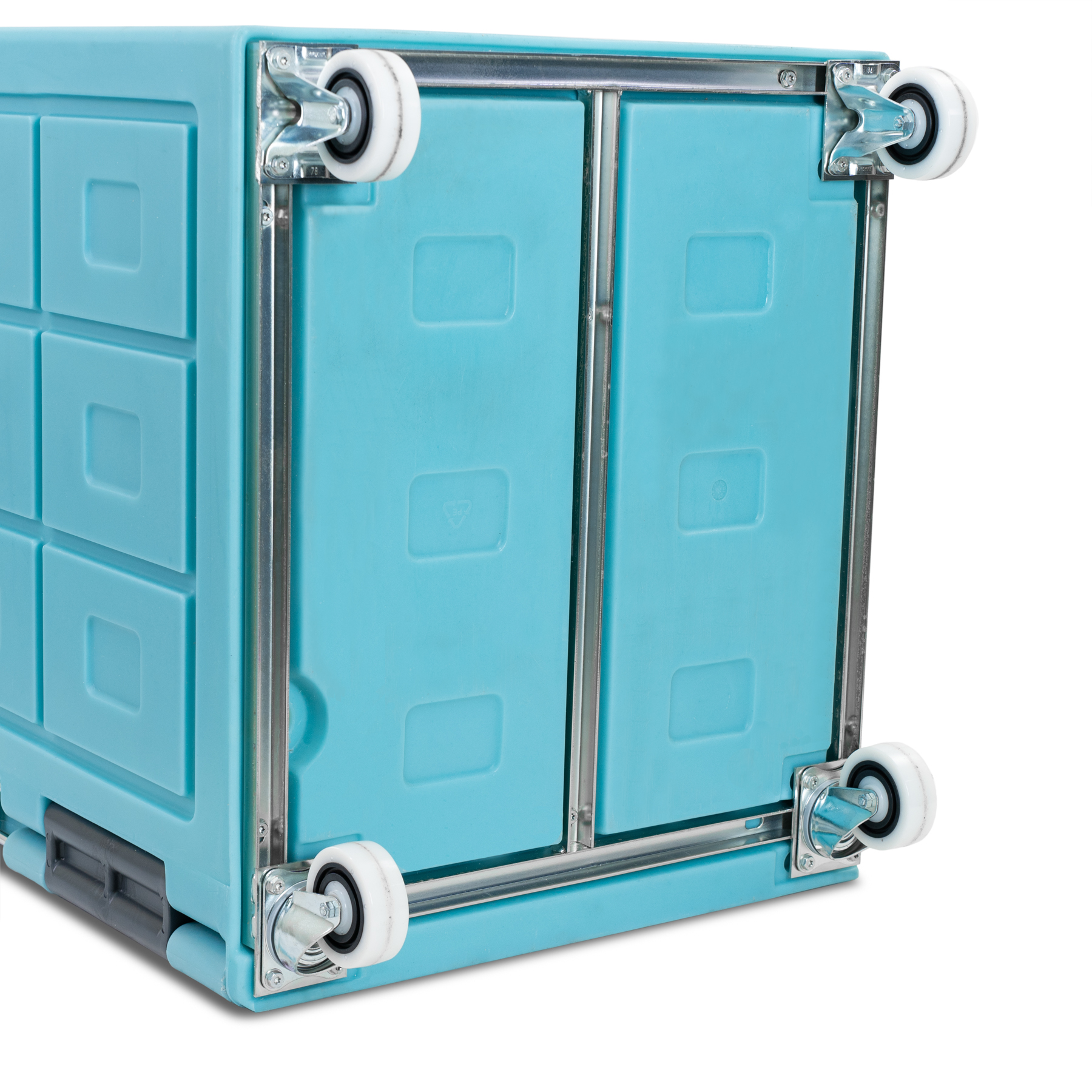

- Embedded support frame, anti-corrosion coated steel, equipped with 2 fixed casters and 2 swivel casters Ø 125 mm

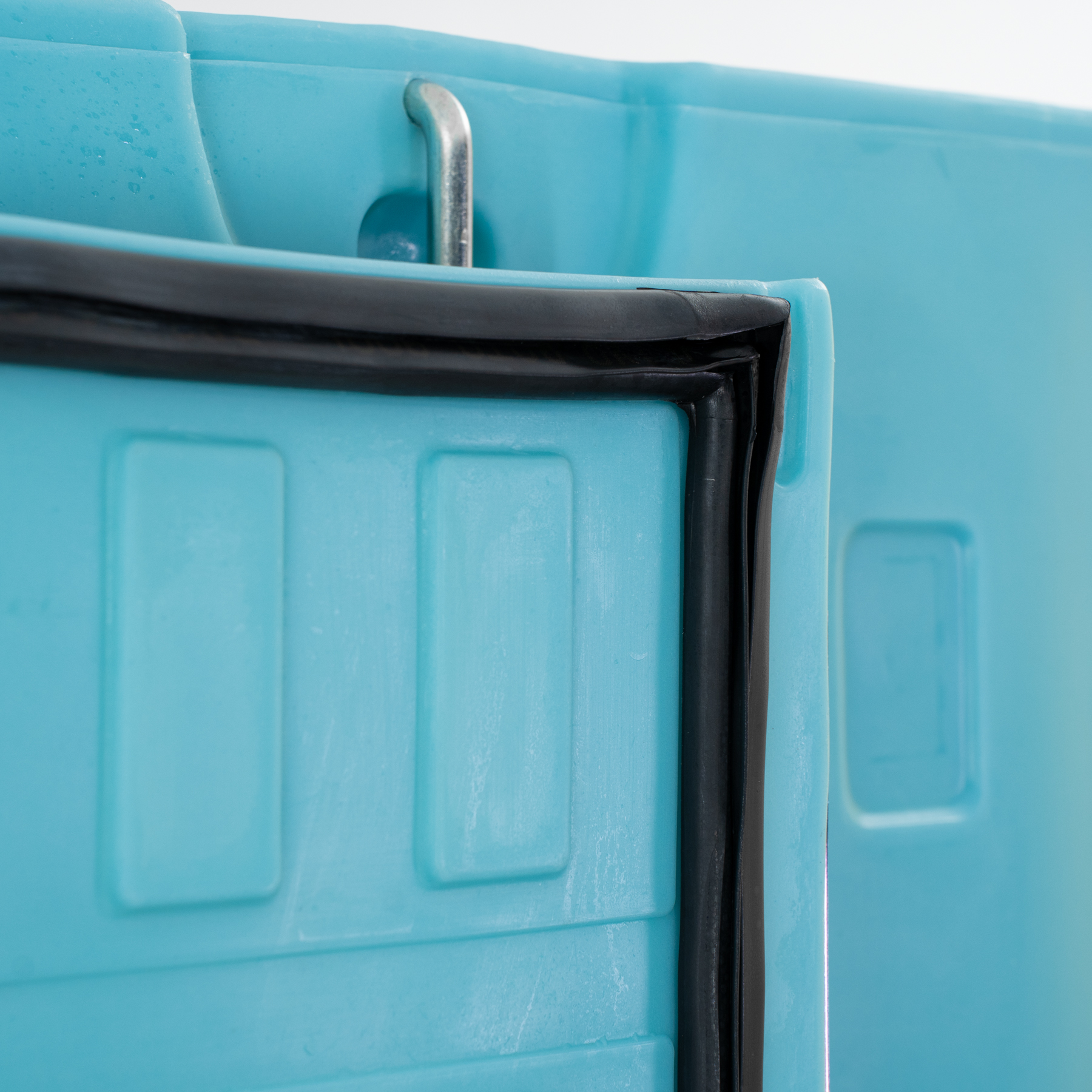

- EPDM one-piece frame seal Door hold-open system
- Embedded label holder

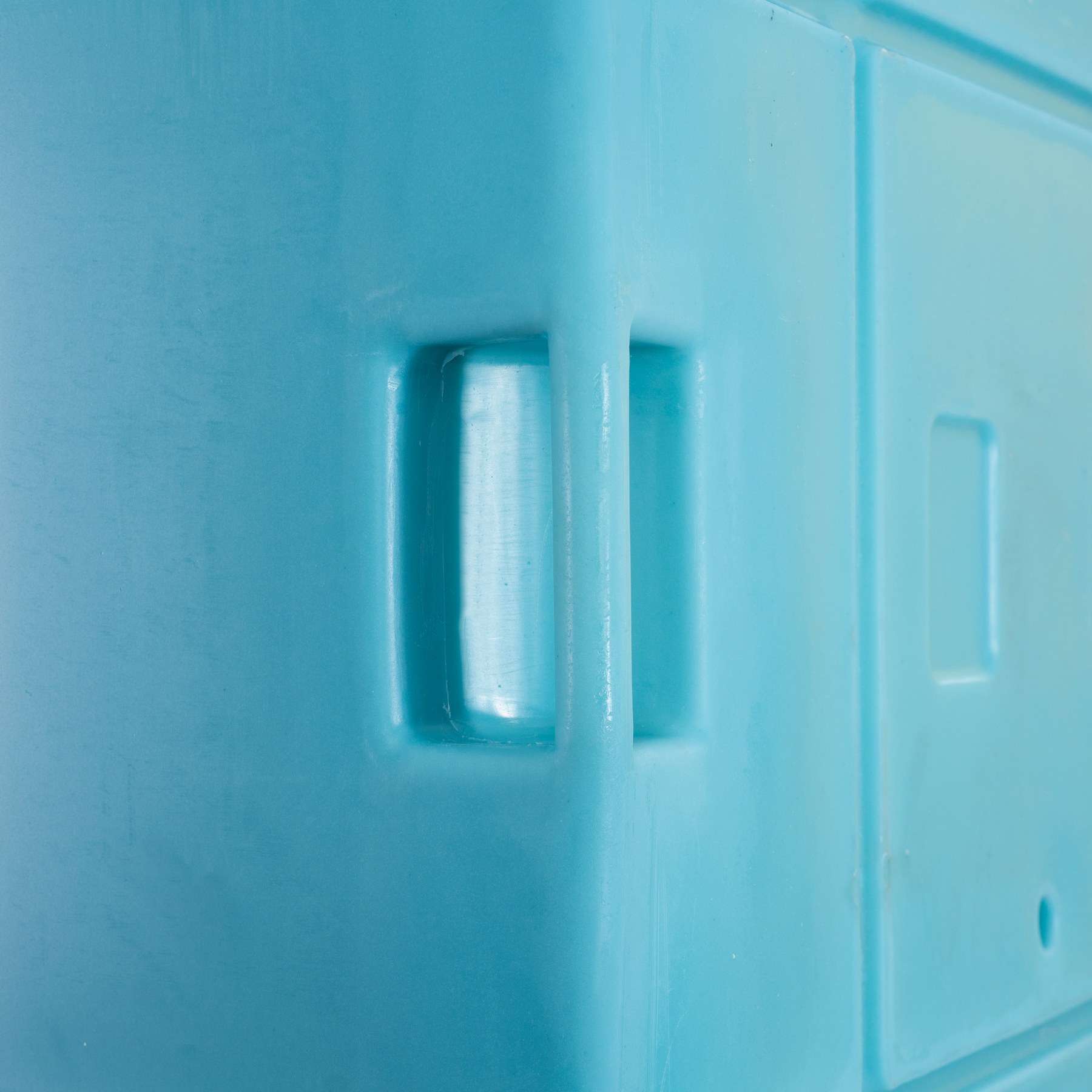

- 2 embedded moulded handles
- Special bottom water collection
- Drain plug at the bottom of the container
Frequently asked questions about this product
-
Isothermal containers
How to choose a model of insulated container ?
The choice of an insulated container rests on several parameters which will be analysed with a member of our team:
- Type of products to be transported;
- Volume of products to be transported and their packaging;
- Type of vehicle used to transport the insulated container;
- Organisation of collection and/or delivery rounds;
- …
The choice of the container is also associated with that of the cold source. This must be selected based on different data:
- Time in transit;
- Legal temperature of the product to be transported;
- External temperature and humidity conditions;
- …
Before making your final choice, we strongly recommend that you contact a member of our team, who will be able to support you in planning and optimising your cold chain logistics.
-
Isothermal containers
Do you offer an annual service
Yes. To prolong the useful life of the insulated containers and to combat MSDs, Olivo offers a fleet maintenance service. Seals, walls, casters, feet and gas springs all need to be checked regularly to guarantee they are in good condition and working properly. The performance and ease of use of the equipment depends on regular, serious technical follow-up. For more information about this service, go to Maintenance & Repairs.
You can contact your account manager who will help you to determine which offer is best suited to your fleet and your actual needs.
-
Isothermal containers
How can an insulated container be recycled ?
As part of its environmental policy and to meet Extended Producer Responsibility requirements, Olivo offers a service dismantling insulated containers and reusing, recycling or valorising its components.
When must an insulated container be retired and recycled?
- If your use is subject to the ATP, your insulated container is over 12 years old and you wish to use it for journeys over 80 km;
- If the extent of the wear and tear on the insulated container means it can no longer be repaired;
For more information on this service, go to Recycling & end of life.
To recycle your insulated container, you will need to contact your account manager, who will guide you through the dismantling procedure.
Products you might like
-
Ext. dim. : 800 x 1030 x 1720 mm,
Volume : 675 L,
Cold source : eutectic plate TOP 780,
View details -
Ext. dim. : 800 x 1200 x 1860 mm,
Volume : 840 L,
Cold source : eutectic plate TOP 900,
Logistics format : Euro-pallet 800 x 1200
View details -
Ext. dim. : 1000 x 1200 x 1690 mm,
Volume : 1022 L,
Cold source : eutectic plate TOP 370,
Logistics format : ISO Pallet 1000 x 1200
View details
Roll 780 MARÉE: Hygiene, Capacity, and Stability for Seafood
The Roll 780 MARÉE is designed for professionals in the seafood industry who face strict sanitary requirements and high volumes of moisture. It allows for the transport of fish, shellfish, and other seafood products under controlled conditions throughout the supply chain. Its Euro-standard 600 x 400 mm size and usable volume facilitate integration into collection, processing, and distribution networks. This product helps you consolidate volumes, secure delivery routes, and work more efficiently at high speeds.
Technical Specifications
The Roll 780 SEAFOOD ensures reliable temperature maintenance, even in humid environments. Its insulated structure limits heat exchange and maintains a consistent temperature inside the roll. This protects product quality without breaking the cold chain.
Enhanced sealing prevents leaks, while the sealable side closure secures the load during transport. The 270° door opening facilitates quick handling. The specialized base retains water, and the drain plug allows for simple and controlled drainage—essential for seafood applications. Compliant with ATP IR regulations, the Roll 780 MARÉE covers a wide temperature range, from -80°C to +70°C.
Operational Benefits
Designed for field use, the Roll 780 MARÉE remains stable on wet ground and is easy to handle on a daily basis. Its large 710-liter interior volume and high load capacity help minimize restocking. Compatible with refrigeration solutions and various options, it adapts to the operational realities of seafood professionals.
