Accessory Eutectic plate rack TOP 370
Height : 1585 mm
Width : 690 mm
Depth : 1020 mm
Number of plates stored : up to 40
Handling handles : 4
Tare weight : 90 kg
Loaded weight : 442 kg
Insulated ROLL
ROLL 1100
- Ext. dim. (LxDxH) : 1000 x 1200 x 1690 mm
- Int. dim. (LxDxH) : 805 x 1000 x 1365 mm
- Int. Vol. : 1092 Liters
- Coef.K : 0.34 W/m².°C
- Unloaded weight : 144 Kg
- Insulating material : Polyurethane foam
- Wall material : Food grade polyethylene
- Logistics format : ISO Pallet 1000 x 1200
- Application sectors : Food, Health et Logistics
-
Certification :
Customisation options
Labelling, logotage and specific colours will enable you to improve the management of your fleet and increase efficiency. Contact us directly for any specific customisation project.
Custom RAL colours available
Iron-on handling stickers
Marking of the logo in the mass
Engraved nameplate
Accessories compatible with this product
To add an accessory to your quote, please write your request in the text box provided.
-
-
Accessory Dry ice drawer
Finish : Aluminium
Dimensions : according to the ROLL model
Volume : according to the ROLL model
-
Accessory Feets 80 mm
Diameter : 80 mm
Height with base plate : 130 mm
Metallic :
-
Accessory Brake wheel
Diameter : ø 100 mm
Height with base plate : 128 mm
Tyre width : 36 mm
Features : hybrid wheel
Polyamide wheel centre and tyre, elastic rubber ring :
Specifications
Double-wall rotomoulded PE/PU foam injection isothermal roll, a process in which Olivo is world leader. The one-piece structure ensures watertightness and avoids thermal bridges.

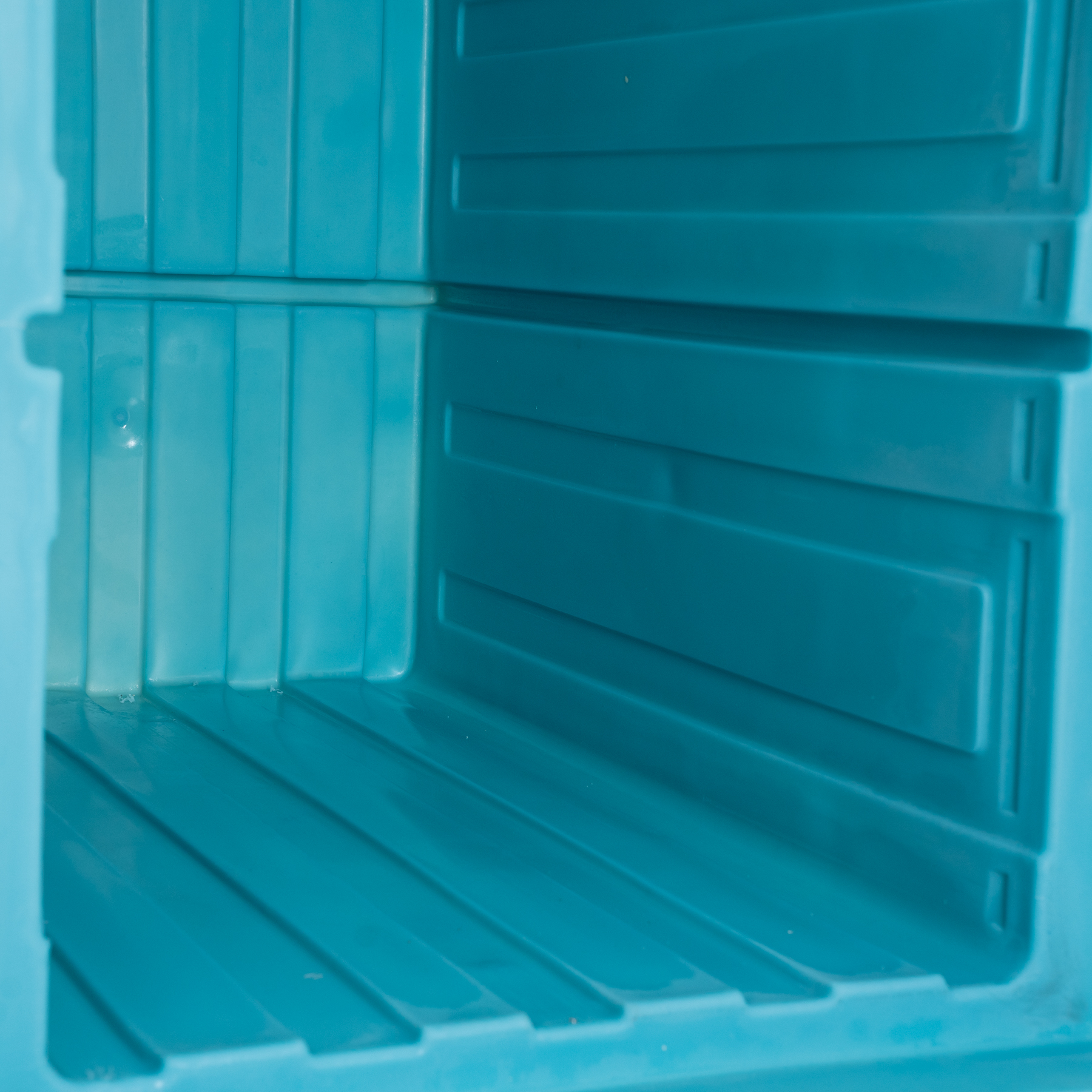

The inside of the box is grooved to create convection corridors to promote cold circulation.
Designed and manufactured in France
Our factory is located in the heart of the Saint-Etienne region, upstream from the Gorges de la Loire. For over 65 years, we have been working to keep our production facilities in Rouchonne, the cradle of plastics processing and industrial know-how.
Durability & maintenance
The rotational moulding process makes it easy to re-weld the material in the event of breakage. Regular maintenance and careful handling will extend the product’s useful life.
Know-how
Making an insulated container requires no fewer than 200 manual operations. These skills and techniques contribute to the quality and sturdiness of Olivo containers.
- One-piece rotational moulding. Grooved interior walls to encourage convection.

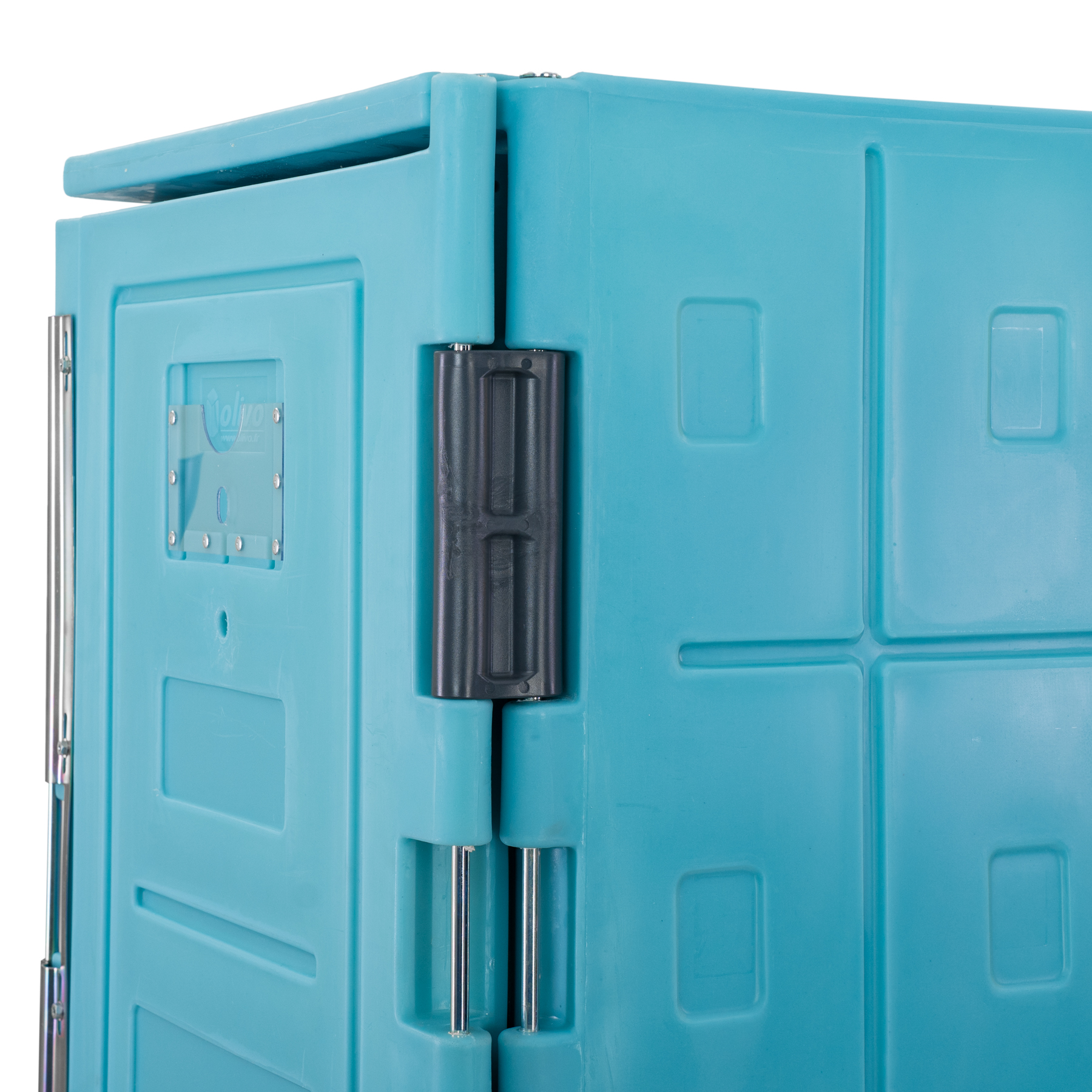

- Double-axis body/door articulation. 270° opening door

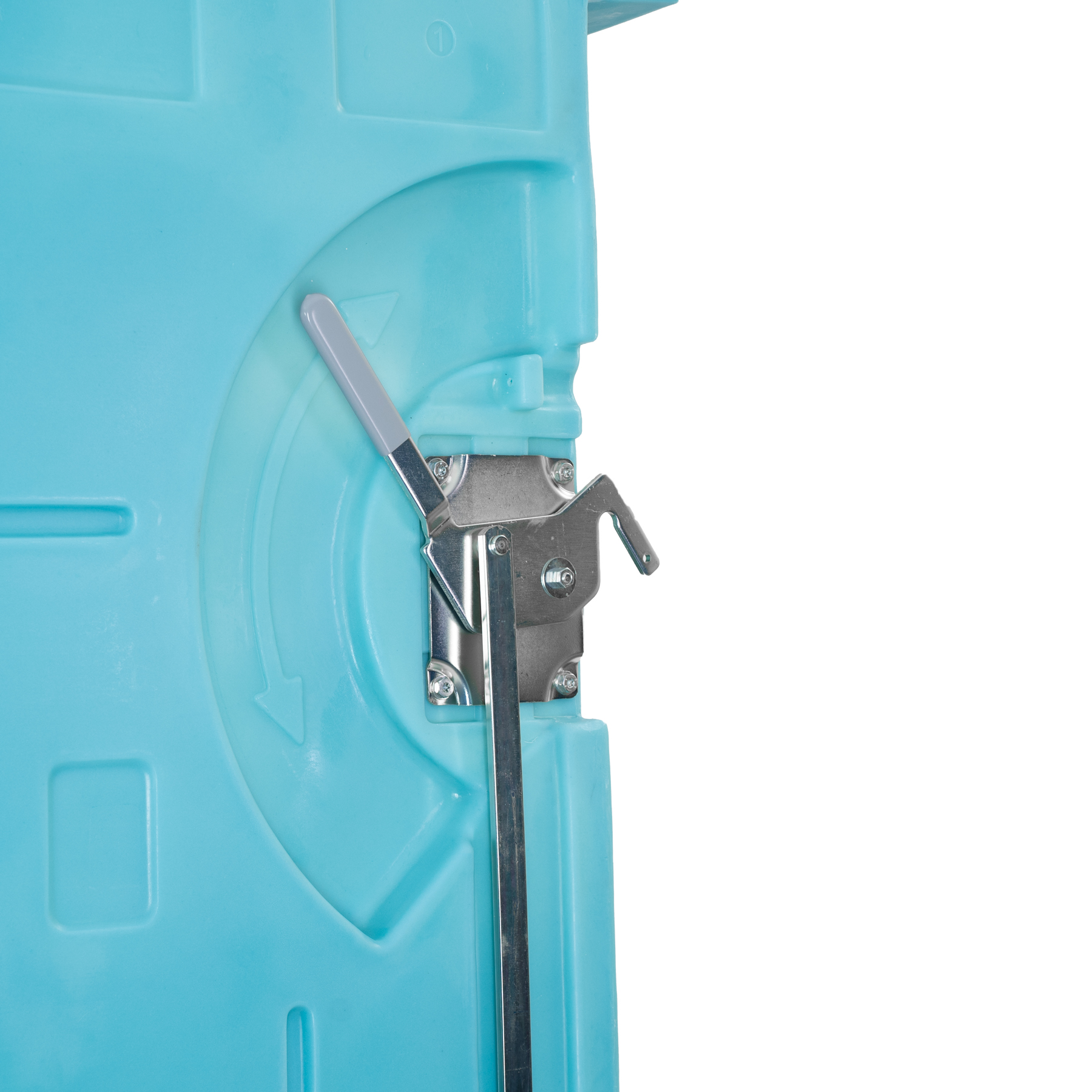

- Pelican” type 2-point quick-release fastener in zinc-plated, dichromate-coated steel

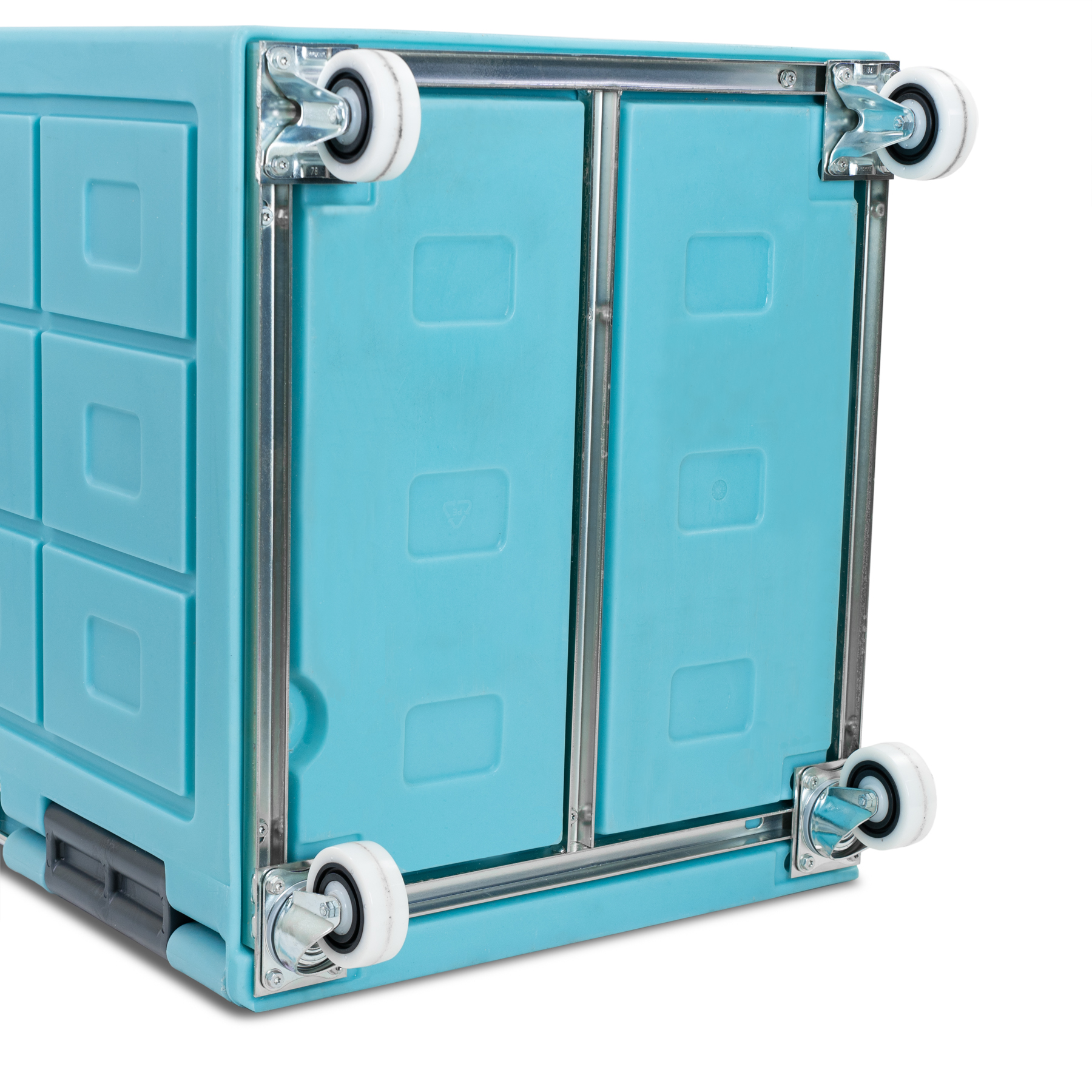

- Recessed frame, corrosion-resistant steel, fitted with 2 fixed and 2 swivel castors ø 125 mm

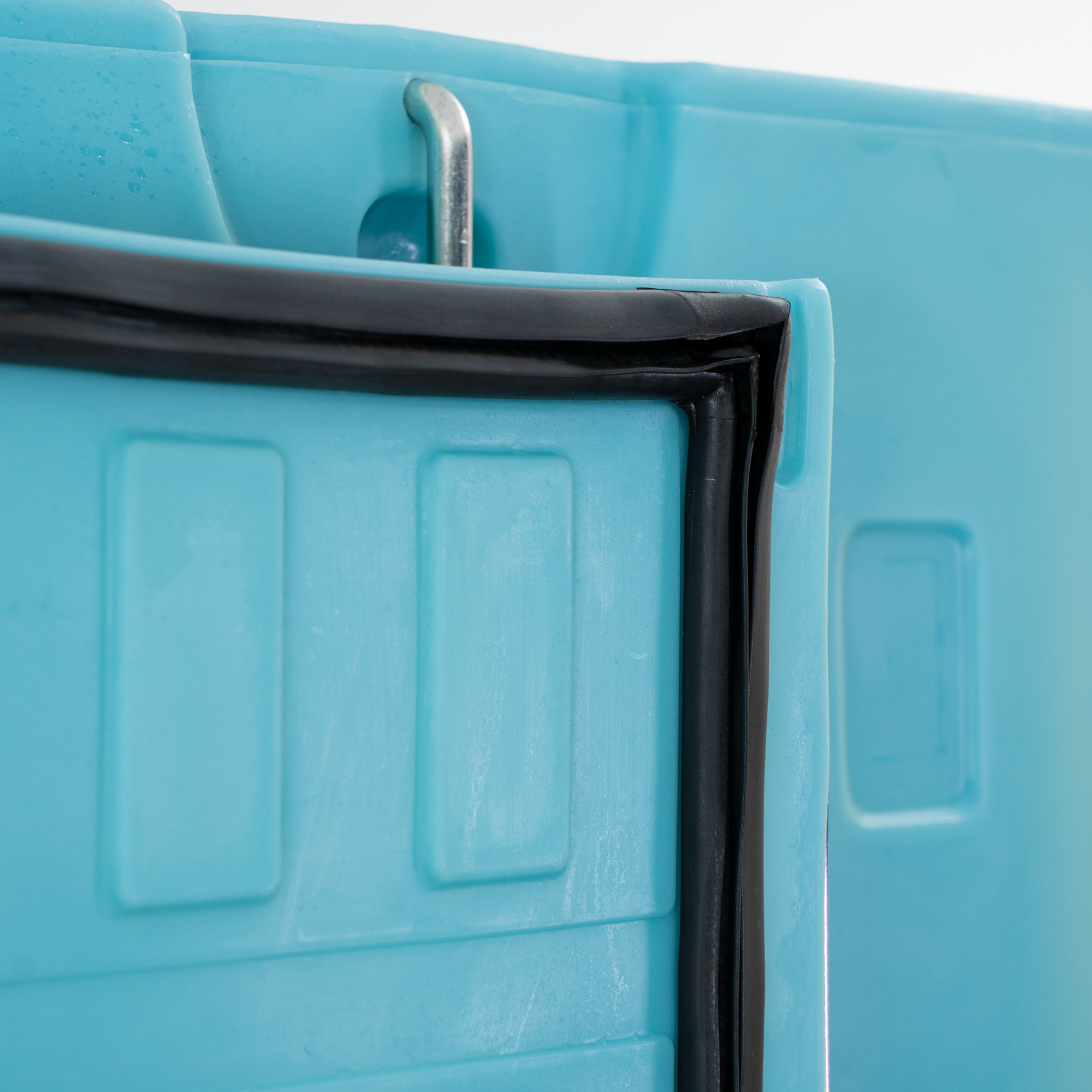

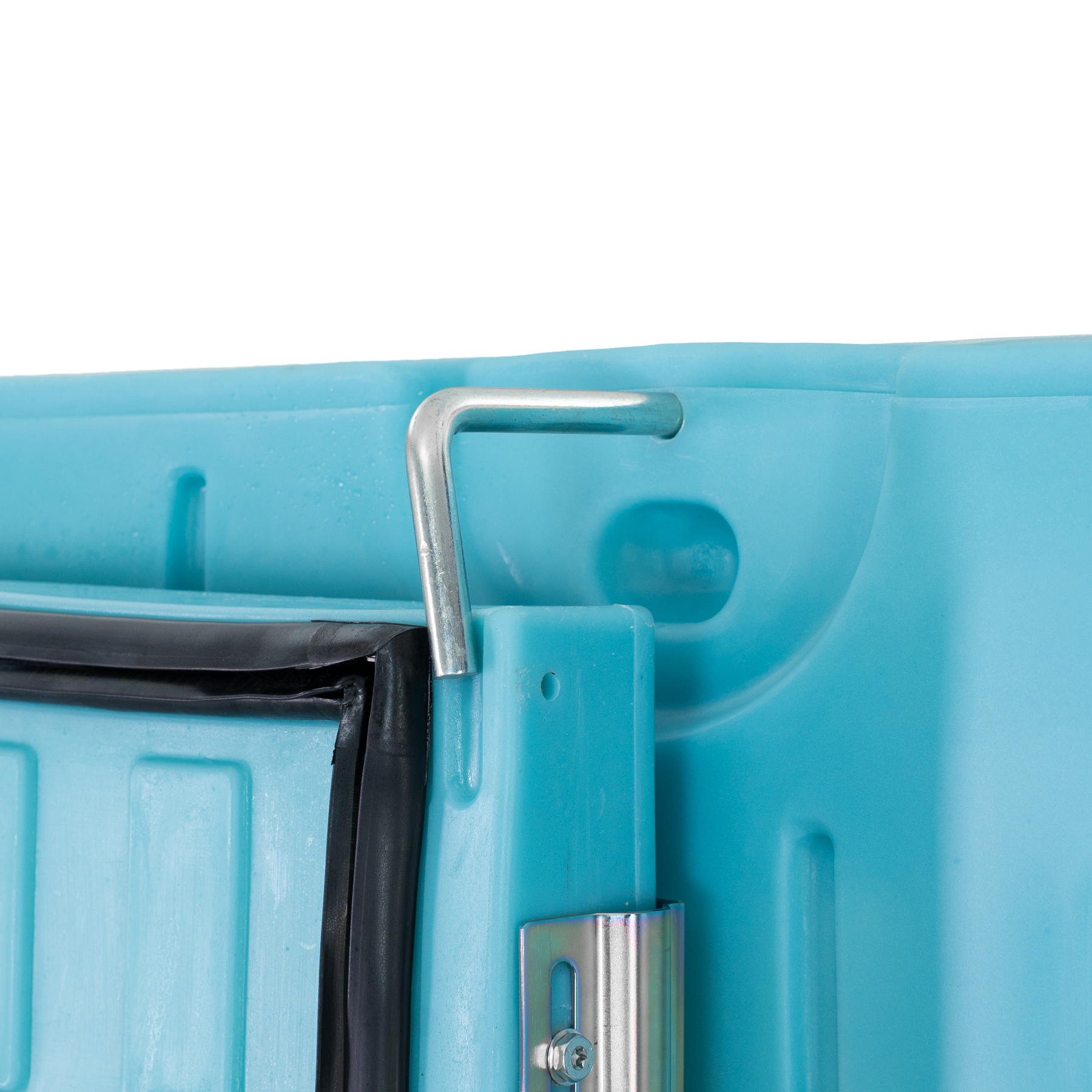

- EPDM seal in one-piece frame. Door open stop system

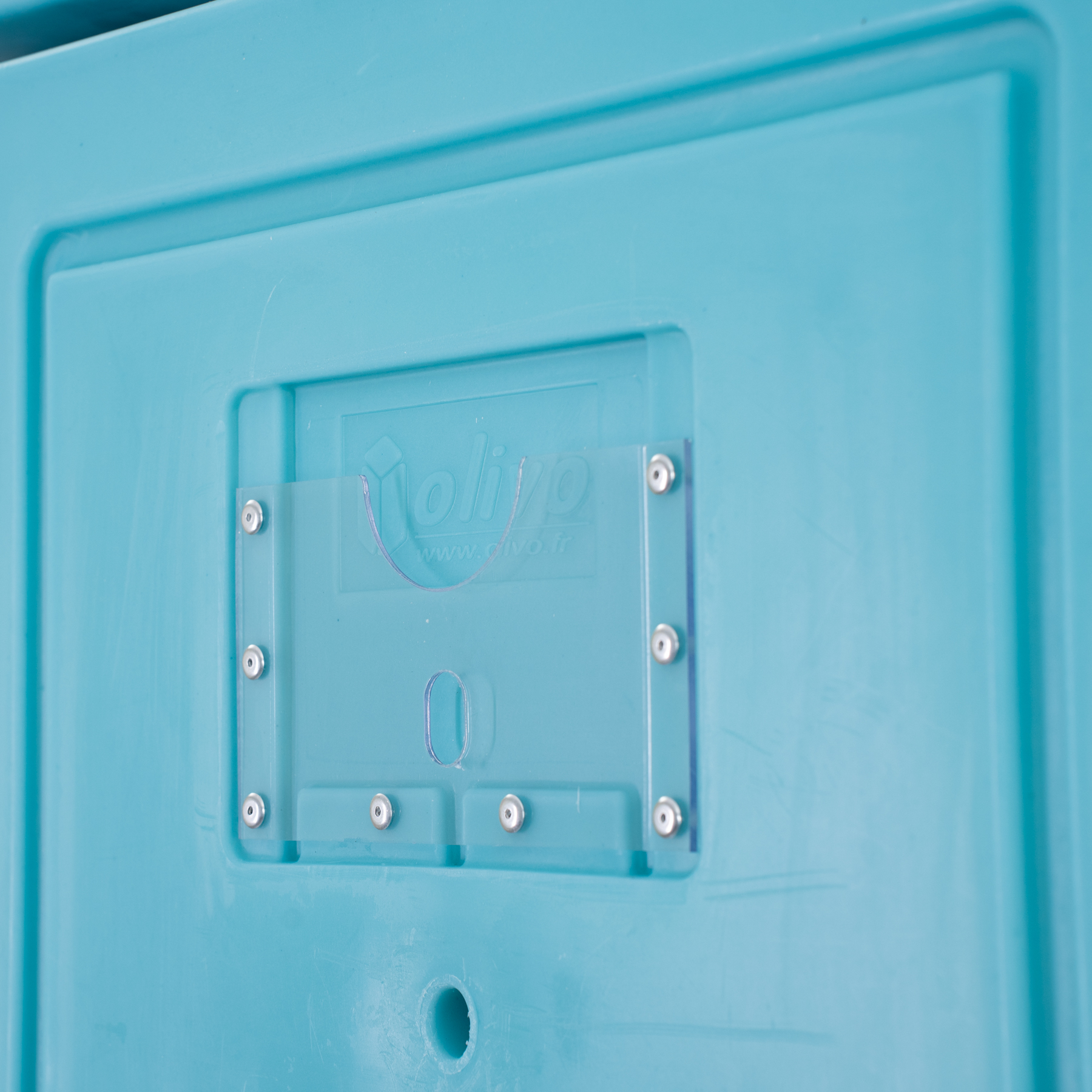

- Built-in label holder

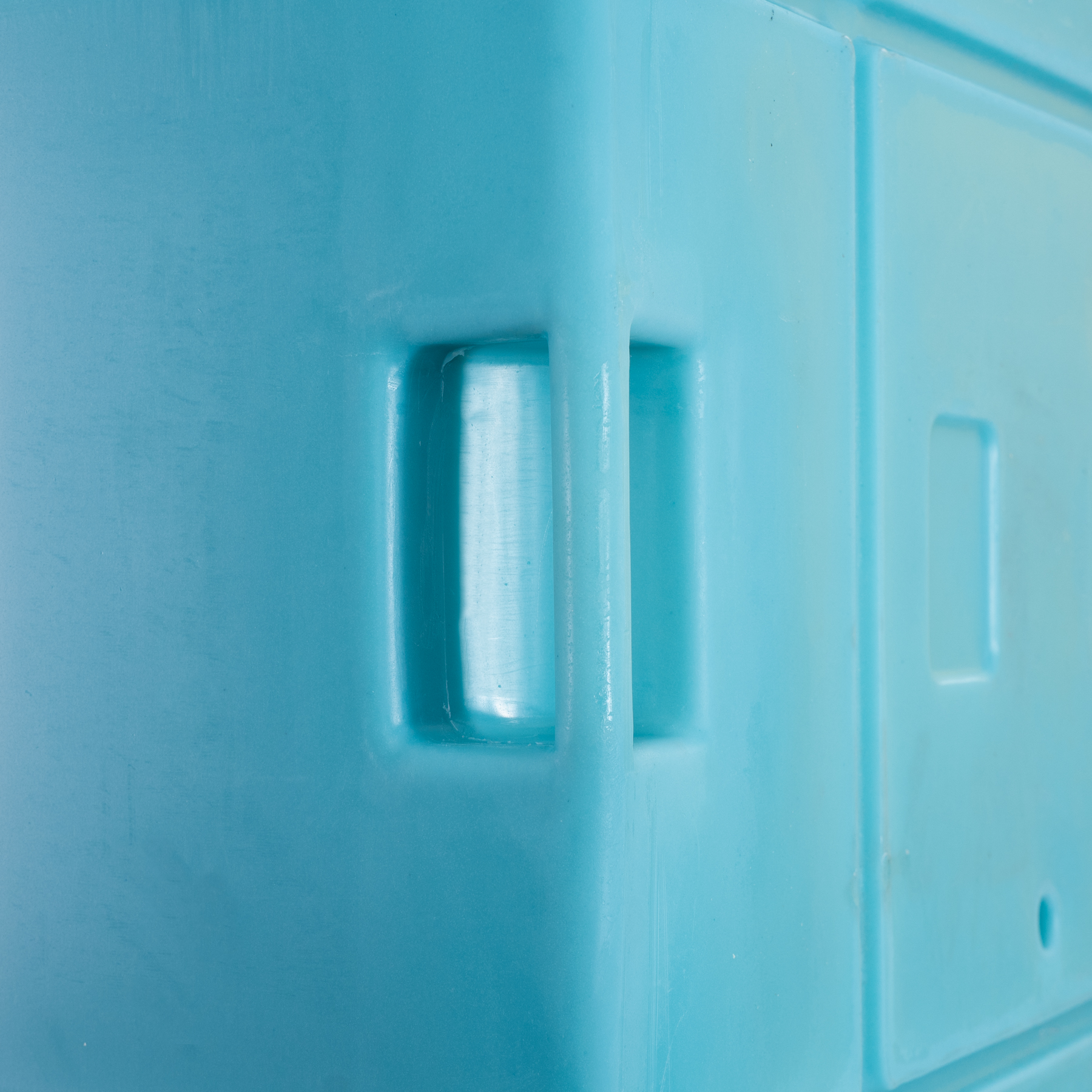

- 2 moulded corner handles
- 2-panel, hinged, lift-and-fold, injected plastic intermediate grille
Frequently asked questions about this product
-
Isothermal containers
How to choose a model of insulated container ?
The choice of an insulated container rests on several parameters which will be analysed with a member of our team:
- Type of products to be transported;
- Volume of products to be transported and their packaging;
- Type of vehicle used to transport the insulated container;
- Organisation of collection and/or delivery rounds;
- …
The choice of the container is also associated with that of the cold source. This must be selected based on different data:
- Time in transit;
- Legal temperature of the product to be transported;
- External temperature and humidity conditions;
- …
Before making your final choice, we strongly recommend that you contact a member of our team, who will be able to support you in planning and optimising your cold chain logistics.
-
Isothermal containers
Do you offer an annual service
Yes. To prolong the useful life of the insulated containers and to combat MSDs, Olivo offers a fleet maintenance service. Seals, walls, casters, feet and gas springs all need to be checked regularly to guarantee they are in good condition and working properly. The performance and ease of use of the equipment depends on regular, serious technical follow-up. For more information about this service, go to Maintenance & Repairs.
You can contact your account manager who will help you to determine which offer is best suited to your fleet and your actual needs.
-
Isothermal containers
How can an insulated container be recycled ?
As part of its environmental policy and to meet Extended Producer Responsibility requirements, Olivo offers a service dismantling insulated containers and reusing, recycling or valorising its components.
When must an insulated container be retired and recycled?
- If your use is subject to the ATP, your insulated container is over 12 years old and you wish to use it for journeys over 80 km;
- If the extent of the wear and tear on the insulated container means it can no longer be repaired;
For more information on this service, go to Recycling & end of life.
To recycle your insulated container, you will need to contact your account manager, who will guide you through the dismantling procedure.

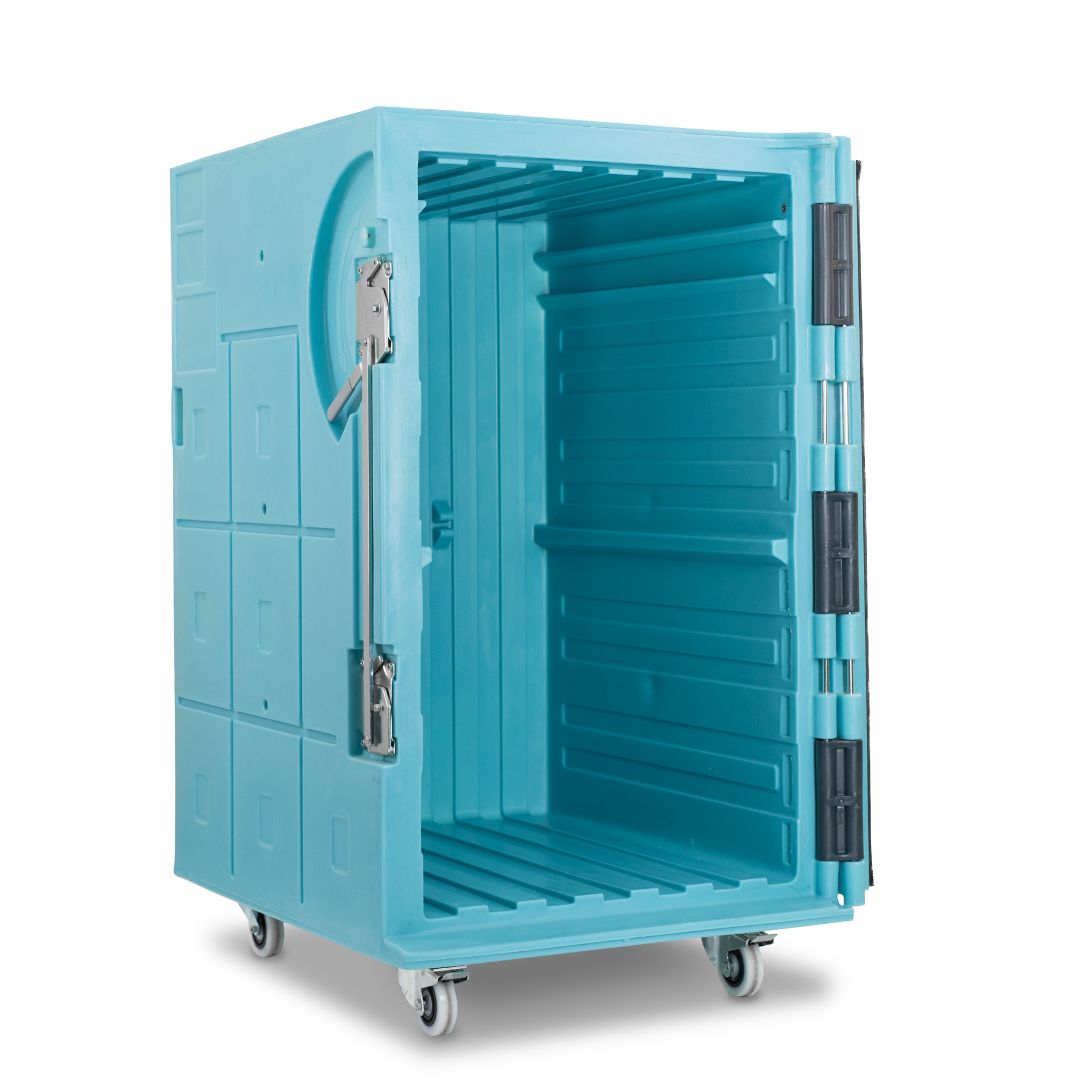

The ROLL Insulated 1100
This large-capacity container is ideal for transporting goods in the food, logistics, and healthcare sectors. With an internal volume of 1,092 liters, a dynamic load capacity of 600 kg, and a static load capacity of 1,200 kg, it can transport fresh and frozen goods, as well as products requiring ambient temperature.
All our insulated ROLL containers are designed and manufactured in France at our facility
Technical specifications of the ROLL 1100 insulated model
Accessories:
- The ROLL 1100 can be equipped with 2 additional 125 mm diameter polyamide sandwich wheels with brakes to facilitate movement.
- Another option: 4 fixed metal feet with a diameter of 80 mm can be installed under the ROLL 1100.
Dimensions:
- External dimensions (L x W x H): 1000 x 1200 x 1720 mm
- Internal dimensions (L x W x H): 805 x 1000 x 1365 mm
Additional information:
- Internal volume: 1092 L
- Empty weight: 144 kg
- 270° door opening
- The two carrying handles are integrally molded for ease of use.
The various cooling sources available for the ROLL 500

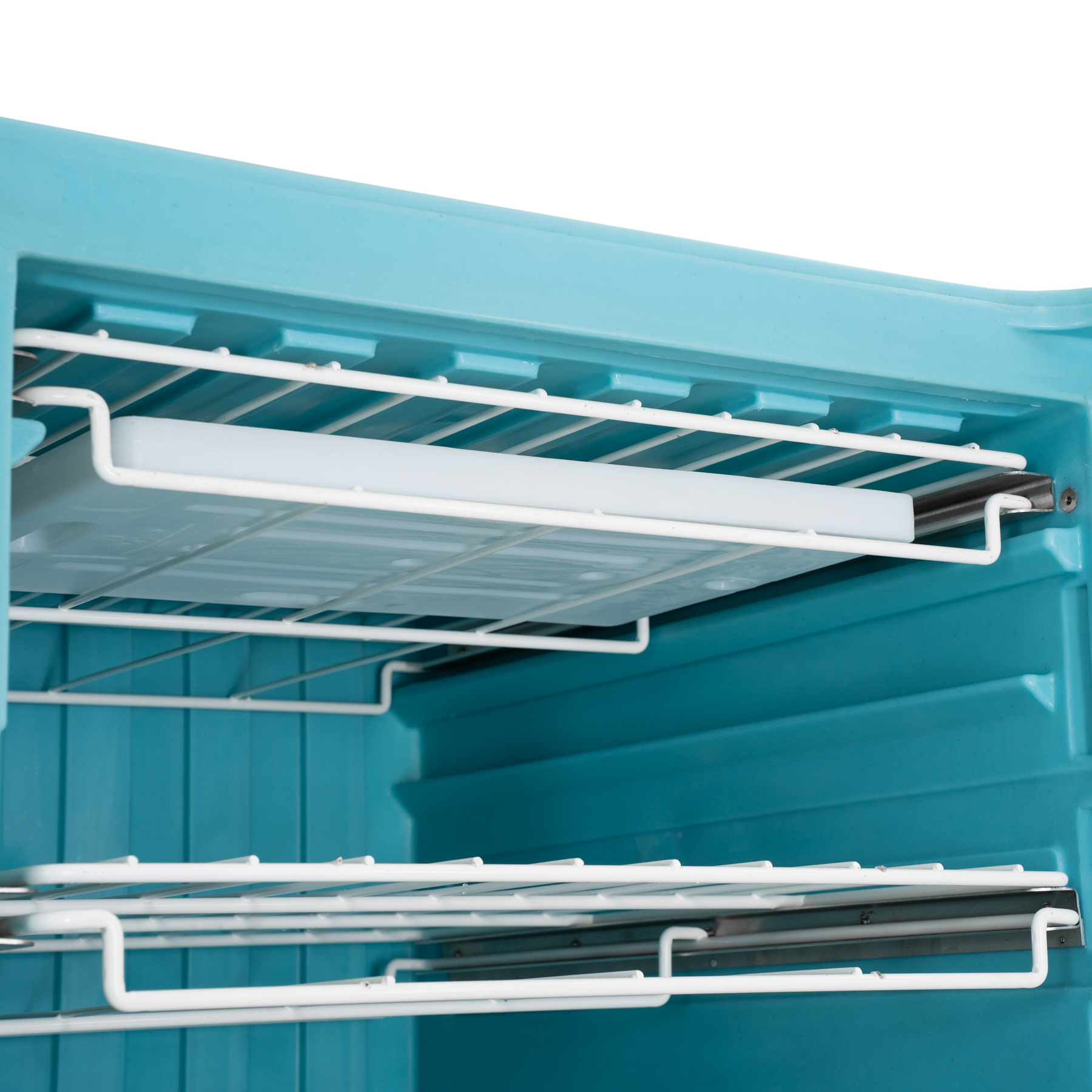

Eutectic plate:
Up to 4 TOP370 all-temperature eutectic plates, according to our internal standards.
Dry ice drawer:
With a capacity of 46 L, it is made of aluminum.

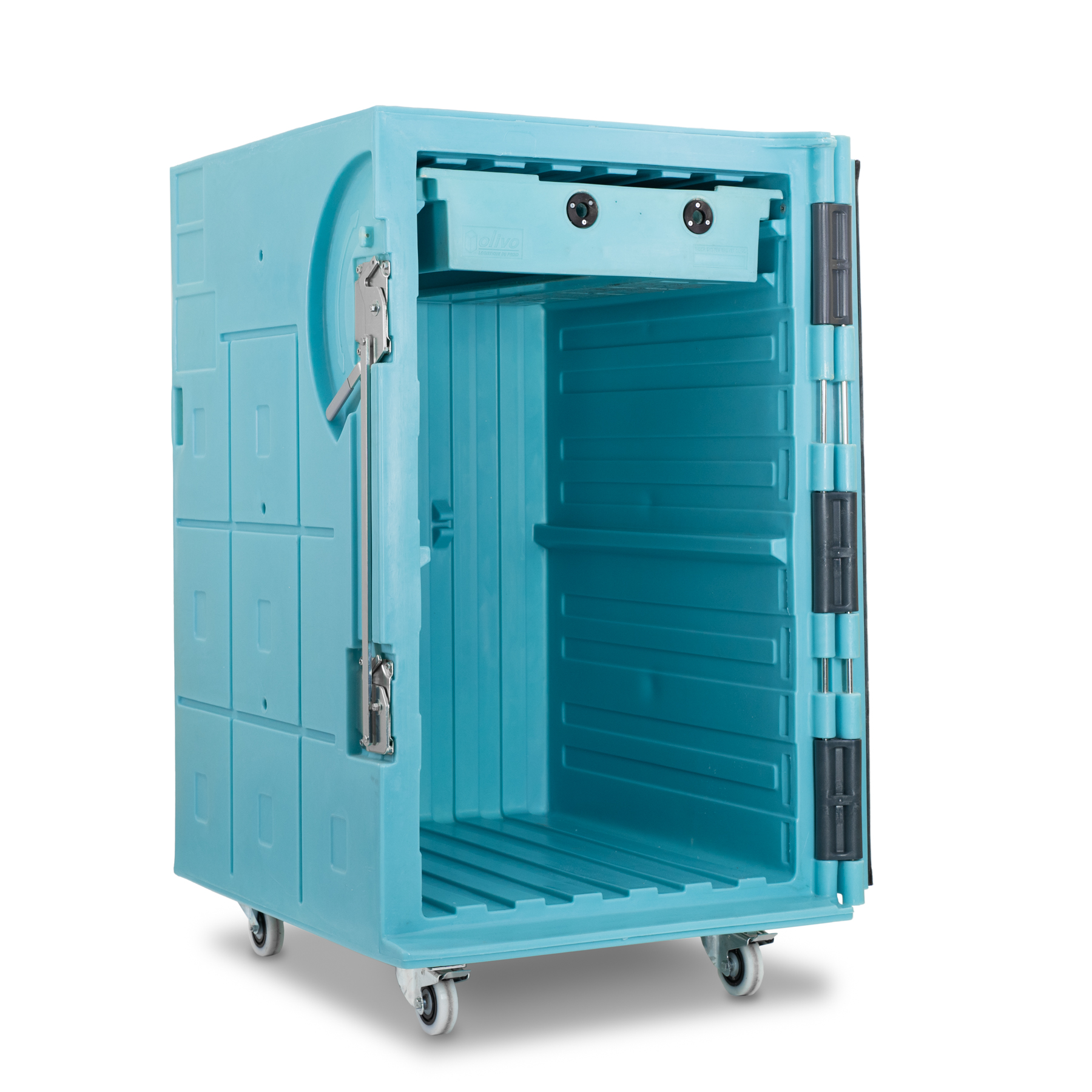

SIBER tray:
This rotomolded dry ice injection tray is ideal for transporting both fresh and frozen goods.
Is it possible to customize the ROLL 1100?
3 types of customization are available for the ROLL 1100:
- Signage (we do not provide a print-ready file)
- Tracking: temperature or geolocation
- Logo branding: using a 150 x 90 mm engraved aluminum plate
What are the specifications of the ROLL 500 insulated container?
- K-value : 0.39 W/m²·°C
- ATP Category IR
- Temperature resistance -80°C to +70°C
- Double-wall thickness ≈ 80 mm
- Logistics format : ISO pallet 1,200 x 1,000 mm
Additional information about the ROLL 1100
The ROLL features:
- a sealable Pelican® side closure,
- a zinc coating,
- an anti-corrosion film,
- an ergonomic carrying handle,
- 2 clamping points,
- a zinc-plated door latch.
