Accessory Bicylift compatibility kit

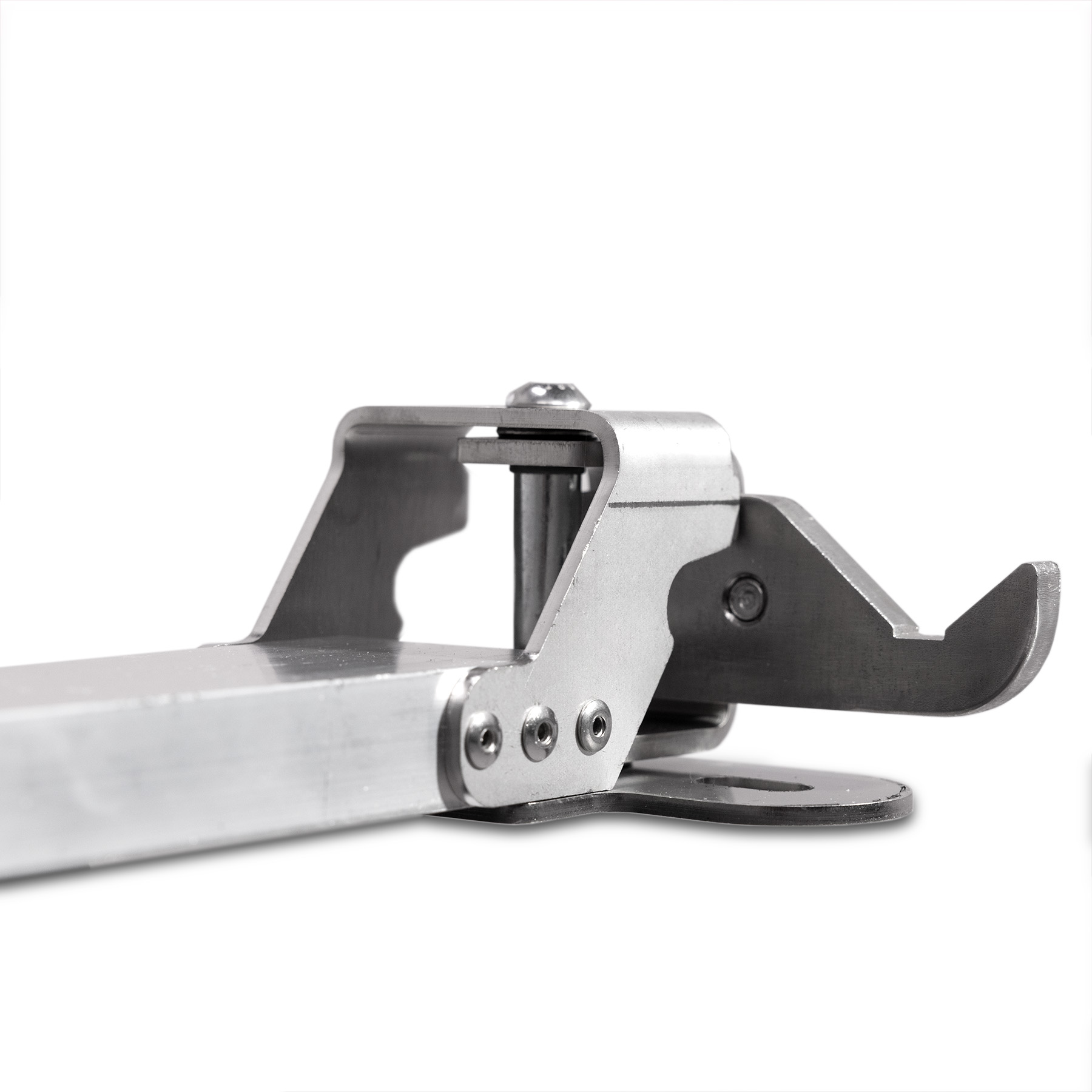

FlexiModal Bicylift trailer attachment bar : Anti-corrosion
Insulated ROLL
ROLL O’CITY
- Ext. dim. (LxDxH) : 800 x 1200 x 1270 mm
- Int. dim. (LxDxH) : 610 x 940 x 900 mm
- Int. Vol. : 516 Liters
- Coef.K : 0.34 W/m².°C
- Unloaded weight : 74 Kg
- Insulating material : Chest and lid made of food grade ePP
- Wall material : Chest and lid made of food grade ePP
- Logistics format : Euro-pallet 800 x 1200
- Application sectors : Food et Logistics
-
Certification :
Customisation options
Labelling, logotage and specific colours will enable you to improve the management of your fleet and increase efficiency. Contact us directly for any specific customisation project.
Custom RAL colours available
Iron-on handling stickers
Engraved nameplate
Accessories compatible with this product
To add an accessory to your quote, please write your request in the text box provided.
-
-
Accessory Intermediate grille
Finish : polyamide-coated steel
Dimensions : according to ROLL model
-
Accessory Eutectic plate rack TOP 900
Height : 1585 mm
Width : 670 mm
Depth : 940 mm
Number of plates stored : up to 40
Handling handles : 4
Tare weight : 85 kg
Loaded weight : 457 kg
Specifications

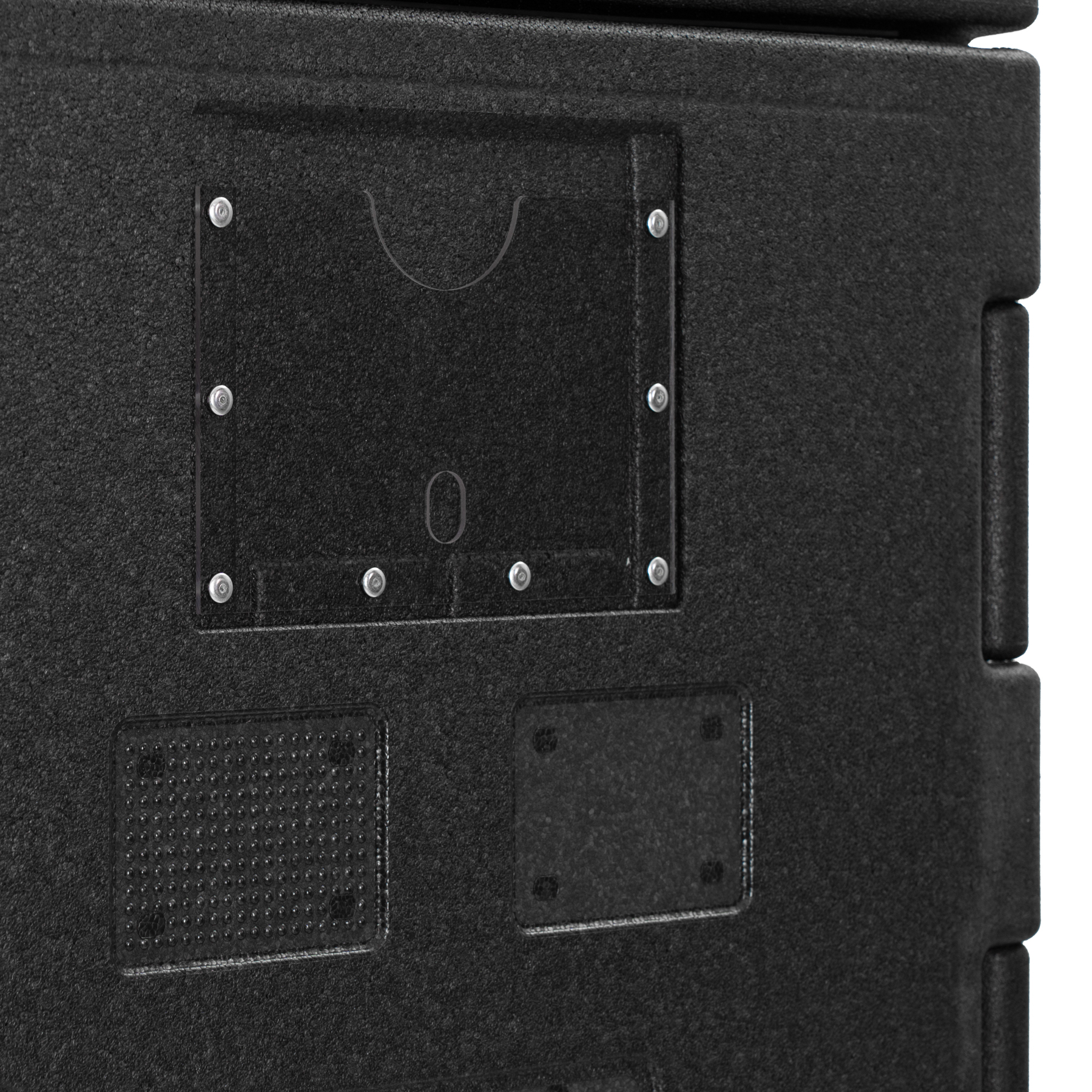

- Label holder
- Case and door in food-grade expanded polypropylene
- 4 anti-rattle wheels Ø 100 mm: 2 fixed, 2 swivel with brake,

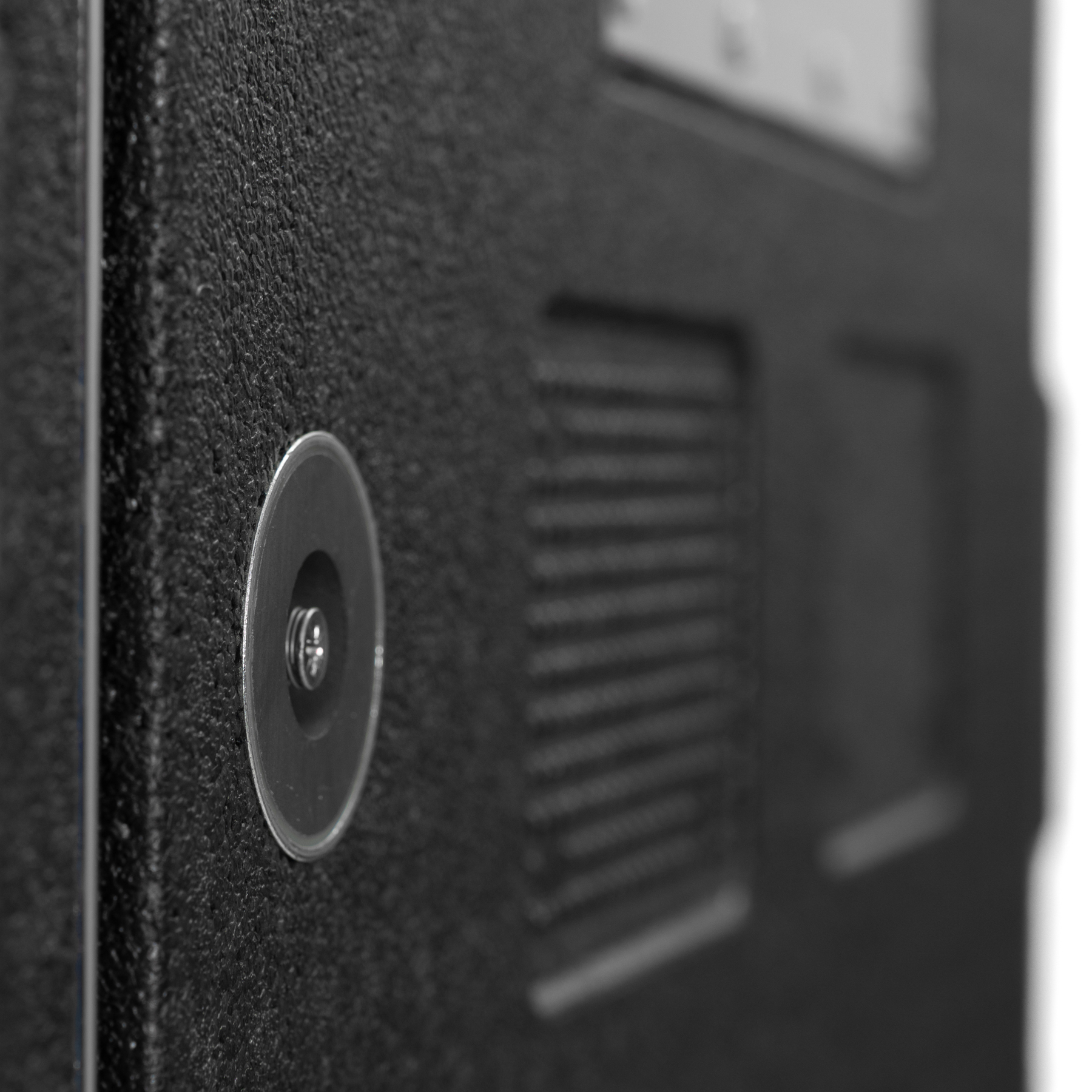

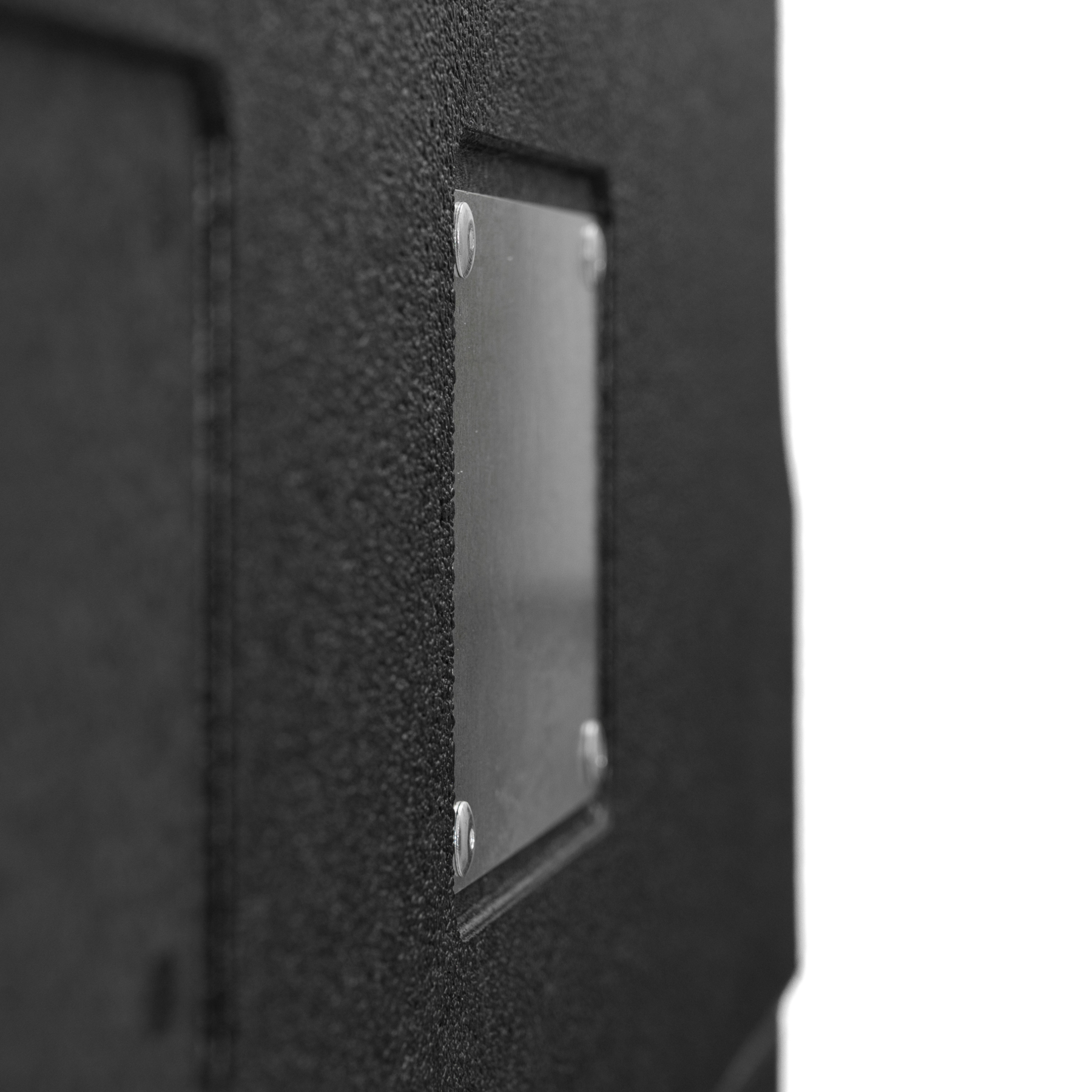

- Magnetic door stop system

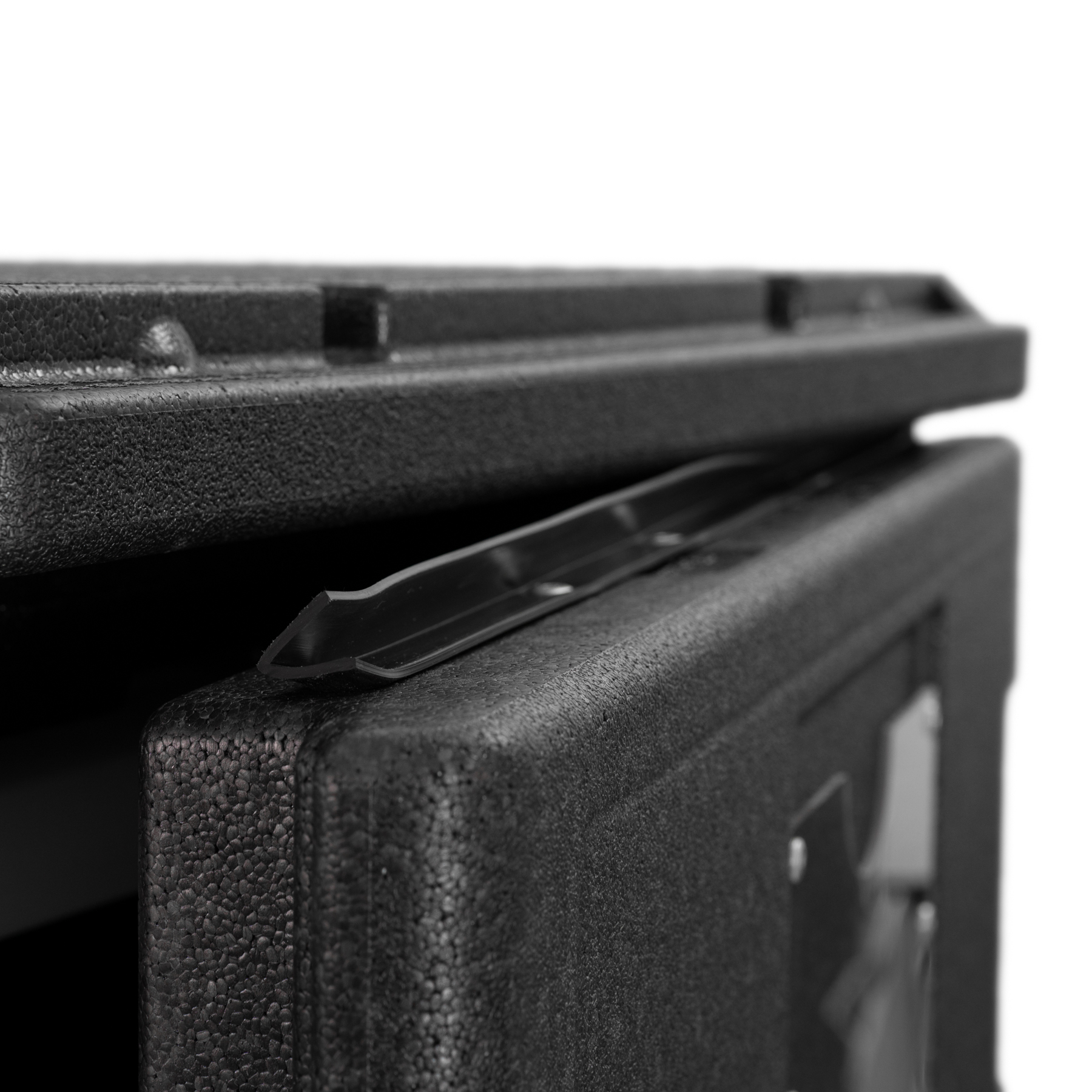

- Top door seal for rain protection

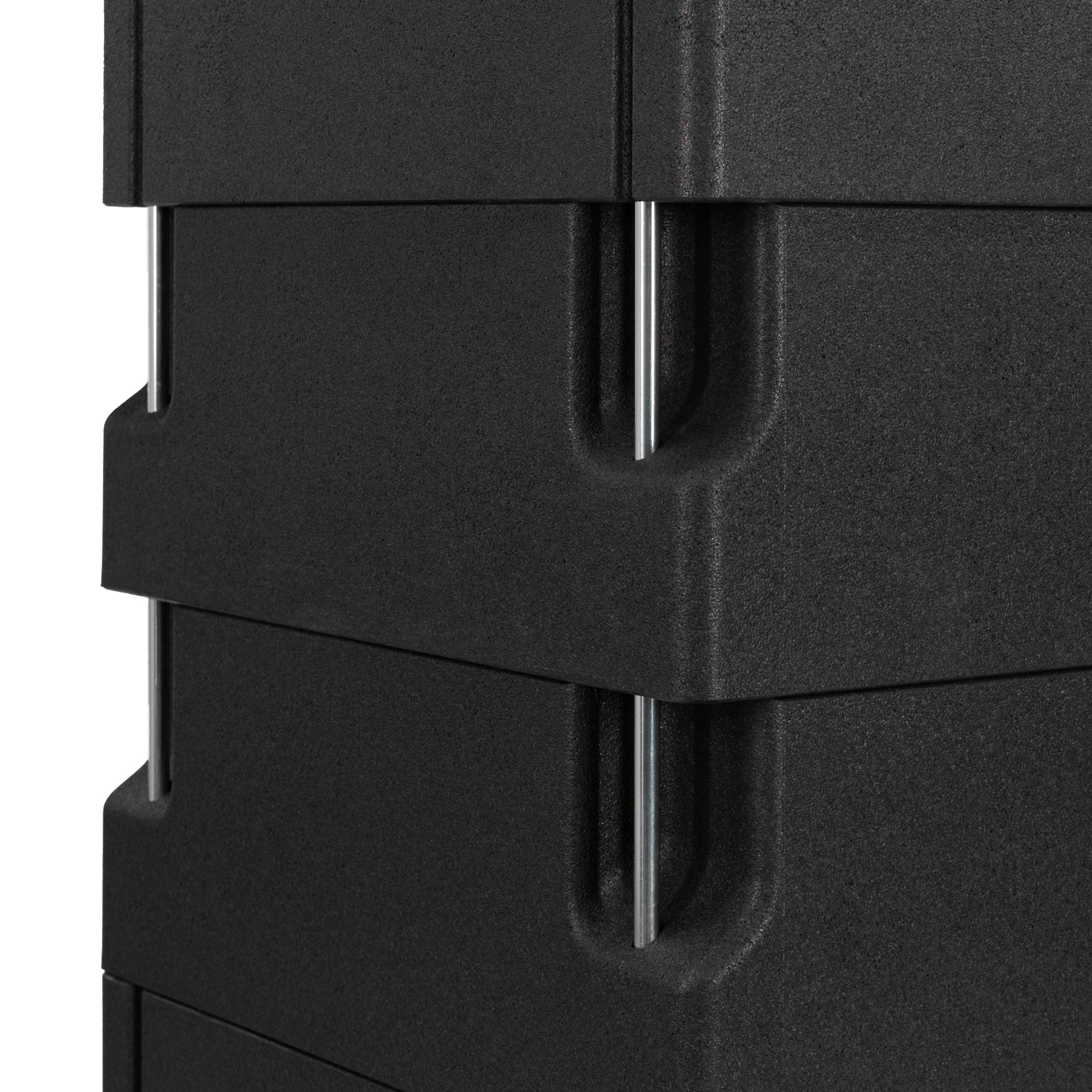

- 2 metal handles at rear
- 270° door opening
- 3-point quick-closing system

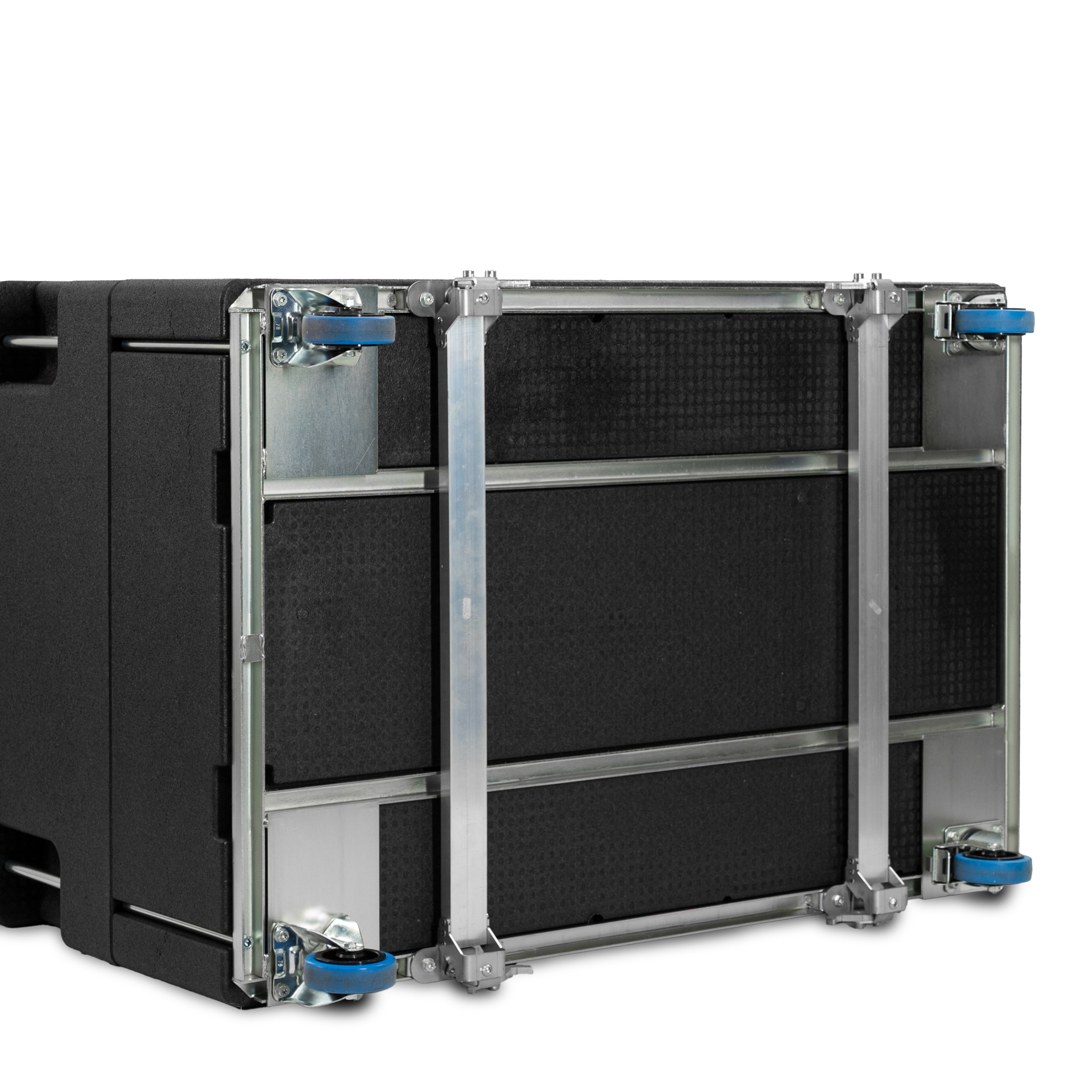

- Recessed frame, corrosion-resistant steel
- Security kit (sold without padlock)

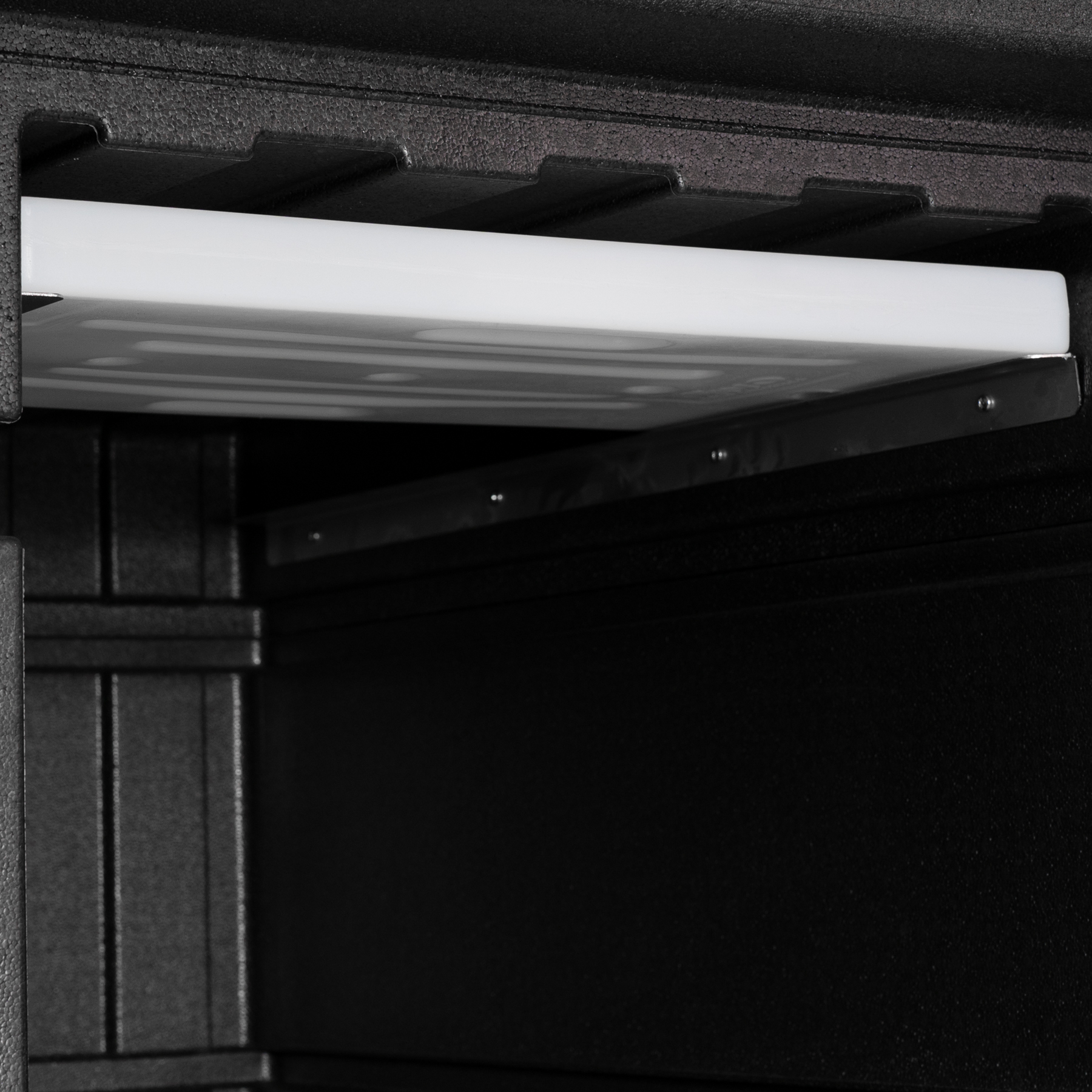

- Stainless steel eutectic plate slide
Frequently asked questions about this product
-
Isothermal containers
How to choose a model of insulated container ?
The choice of an insulated container rests on several parameters which will be analysed with a member of our team:
- Type of products to be transported;
- Volume of products to be transported and their packaging;
- Type of vehicle used to transport the insulated container;
- Organisation of collection and/or delivery rounds;
- …
The choice of the container is also associated with that of the cold source. This must be selected based on different data:
- Time in transit;
- Legal temperature of the product to be transported;
- External temperature and humidity conditions;
- …
Before making your final choice, we strongly recommend that you contact a member of our team, who will be able to support you in planning and optimising your cold chain logistics.
-
Isothermal containers
Do you offer an annual service
Yes. To prolong the useful life of the insulated containers and to combat MSDs, Olivo offers a fleet maintenance service. Seals, walls, casters, feet and gas springs all need to be checked regularly to guarantee they are in good condition and working properly. The performance and ease of use of the equipment depends on regular, serious technical follow-up. For more information about this service, go to Maintenance & Repairs.
You can contact your account manager who will help you to determine which offer is best suited to your fleet and your actual needs.
-
Isothermal containers
How can an insulated container be recycled ?
As part of its environmental policy and to meet Extended Producer Responsibility requirements, Olivo offers a service dismantling insulated containers and reusing, recycling or valorising its components.
When must an insulated container be retired and recycled?
- If your use is subject to the ATP, your insulated container is over 12 years old and you wish to use it for journeys over 80 km;
- If the extent of the wear and tear on the insulated container means it can no longer be repaired;
For more information on this service, go to Recycling & end of life.
To recycle your insulated container, you will need to contact your account manager, who will guide you through the dismantling procedure.

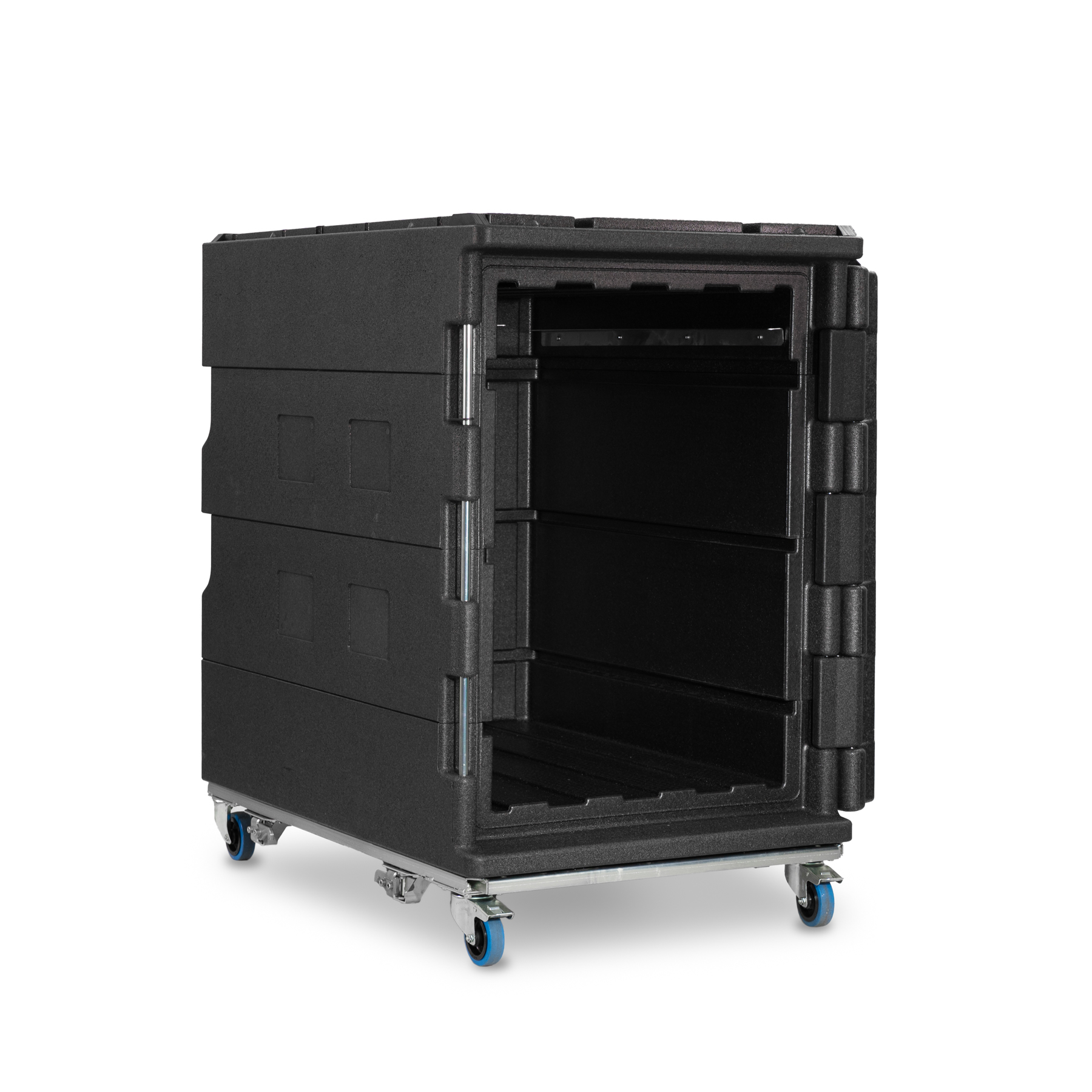

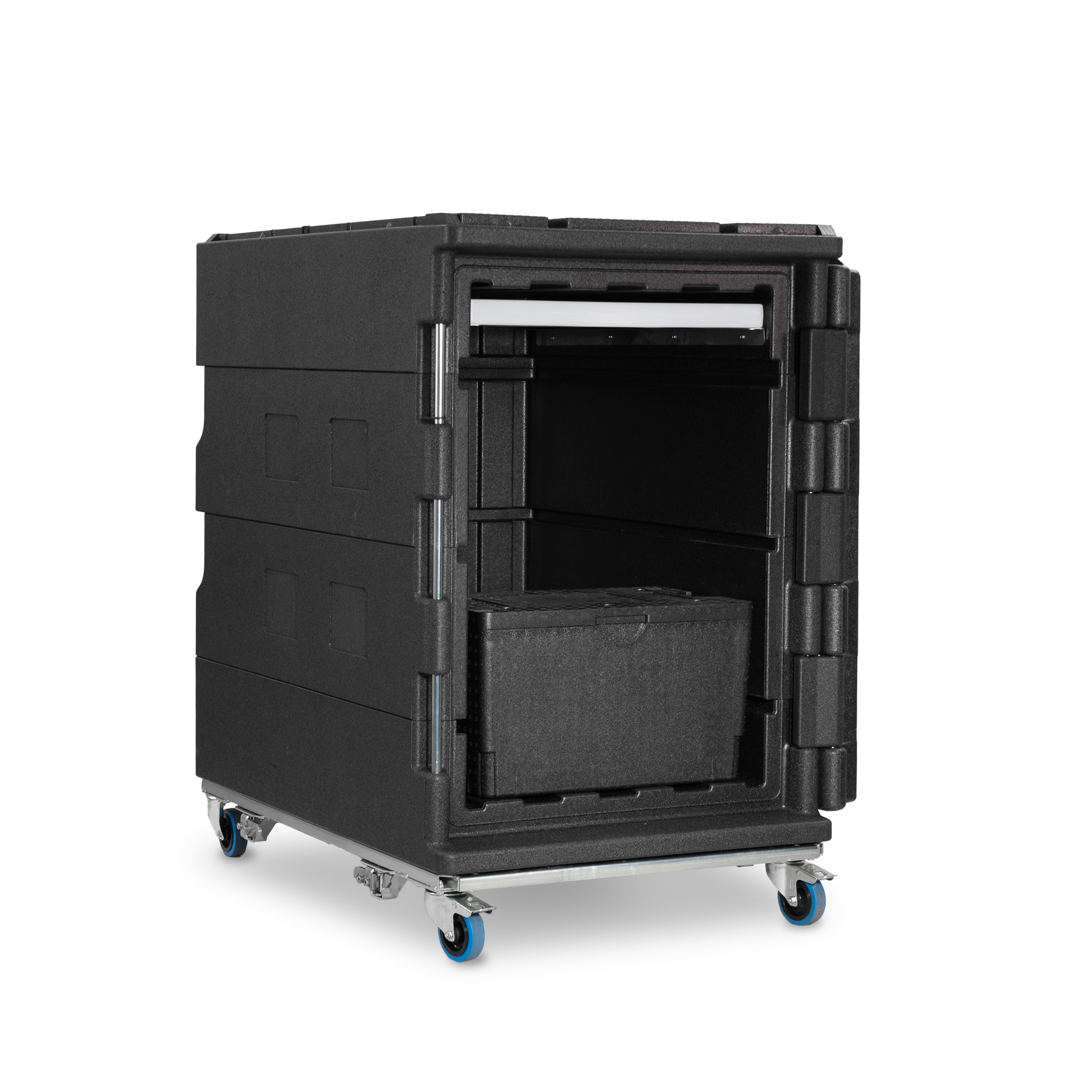

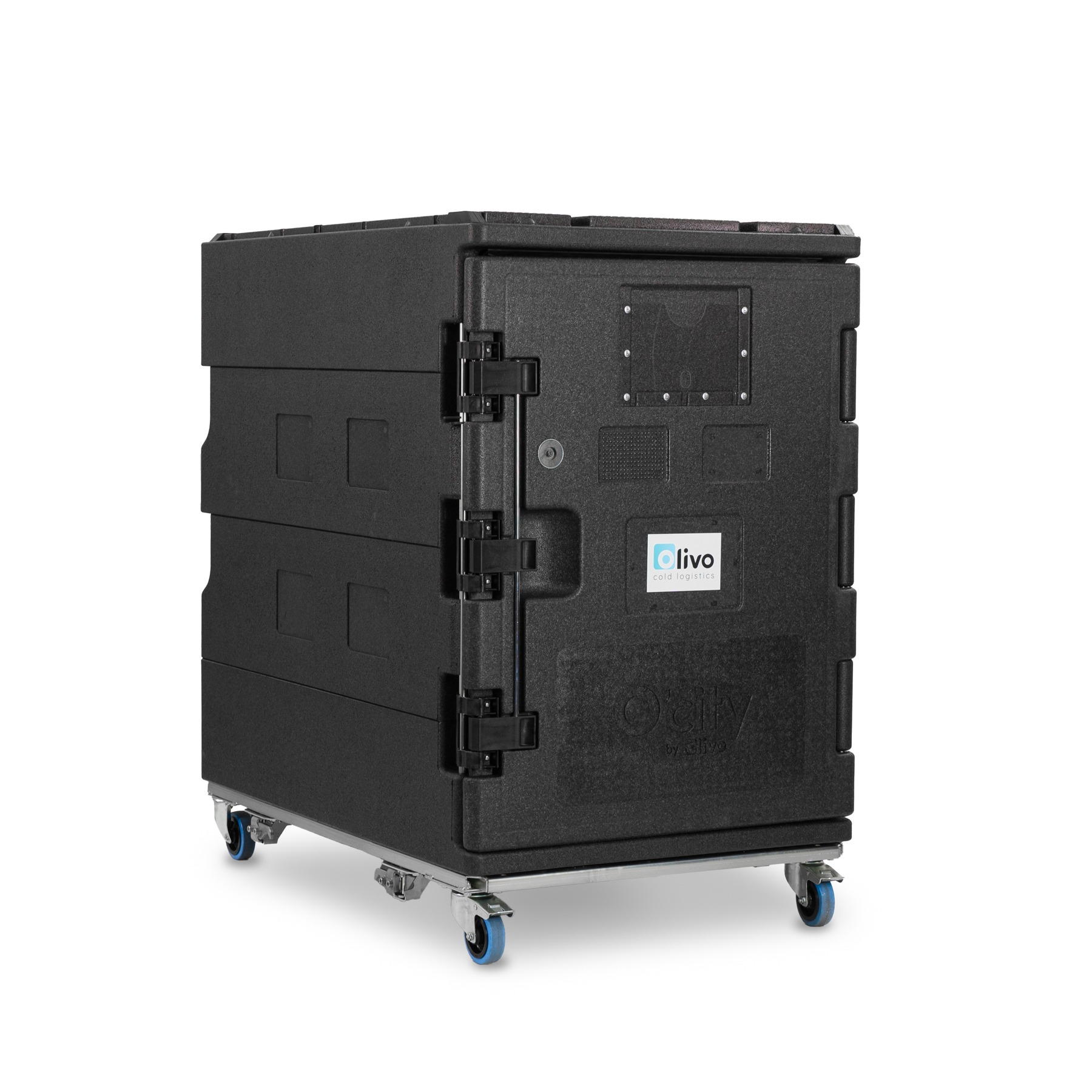

ROLL O’CITY – Mobile insulated cabinet

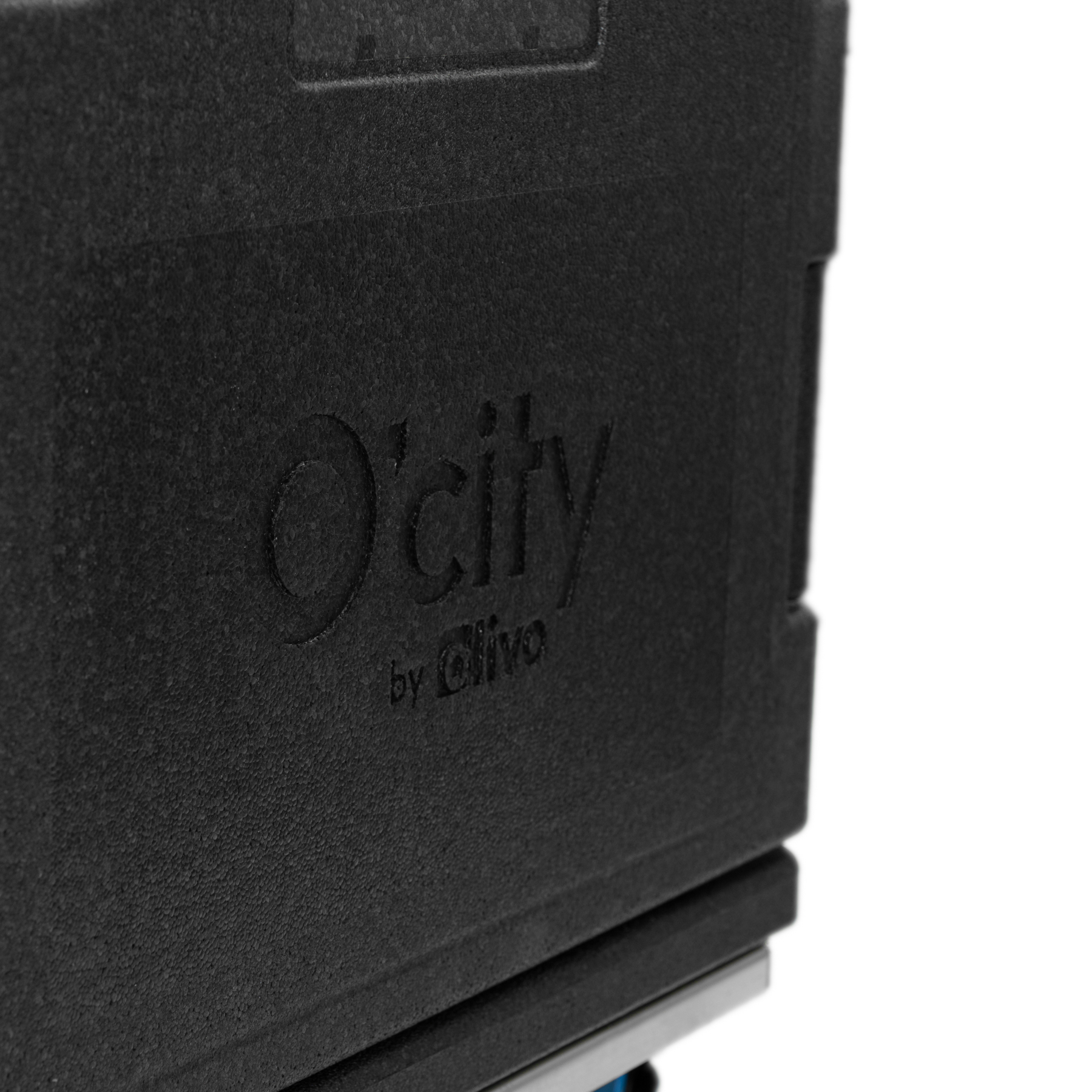

This mobile insulated cabinet is ideal for the food and logistics sectors. Its maneuverability and sturdiness make it a valuable ally for deliveries, as does its European pallet size (800 x 1,200 mm), which perfectly meets the needs of these sectors. It can be customized and is easily identifiable thanks to its signage, tracking, or logo marking. Another advantage is that it is designed to fit on cargo bikes.
Features of the mobile insulated cabinet
The box and door are made of food-grade expanded polypropylene. The double wall, approximately 95 mm thick, effectively limits heat exchange. The K coefficient of 0.34 W/m².°C ensures stable temperature maintenance, while the internal convection channels guarantee even cold distribution. The three-point sealable front closure, combined with a magnetic door stop, secures the contents. Compliant with the ATP IR category, the Roll O’CITY operates from -80°C to +70°C.
- External dimensions (L x W x H): 800 x 1200 x 1270 mm
- Internal dimensions (L x W x H): 610 x 940 x 900 mm
- Empty weight: 74 kg
- Internal volume: 516 L
- Dynamic load capacity: 480 kg
- Static load capacity: 960 kg
- Temperature management: Cool Frozen Ambient

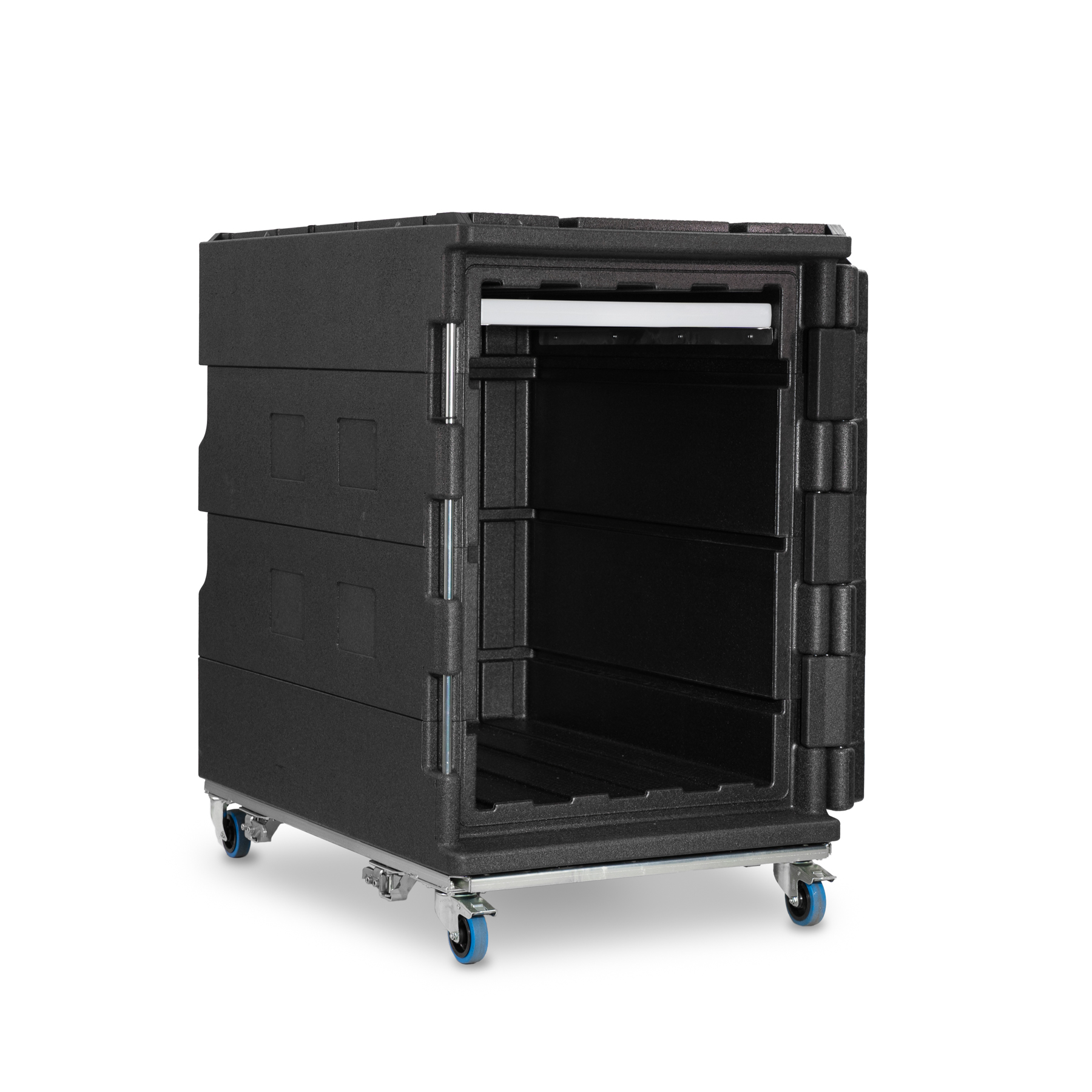

- Cooling sources: eutectic plate
This mobile insulated cabinet offers the following options:
- A Bicylift compatibility kit mounted on a cargo bike frame

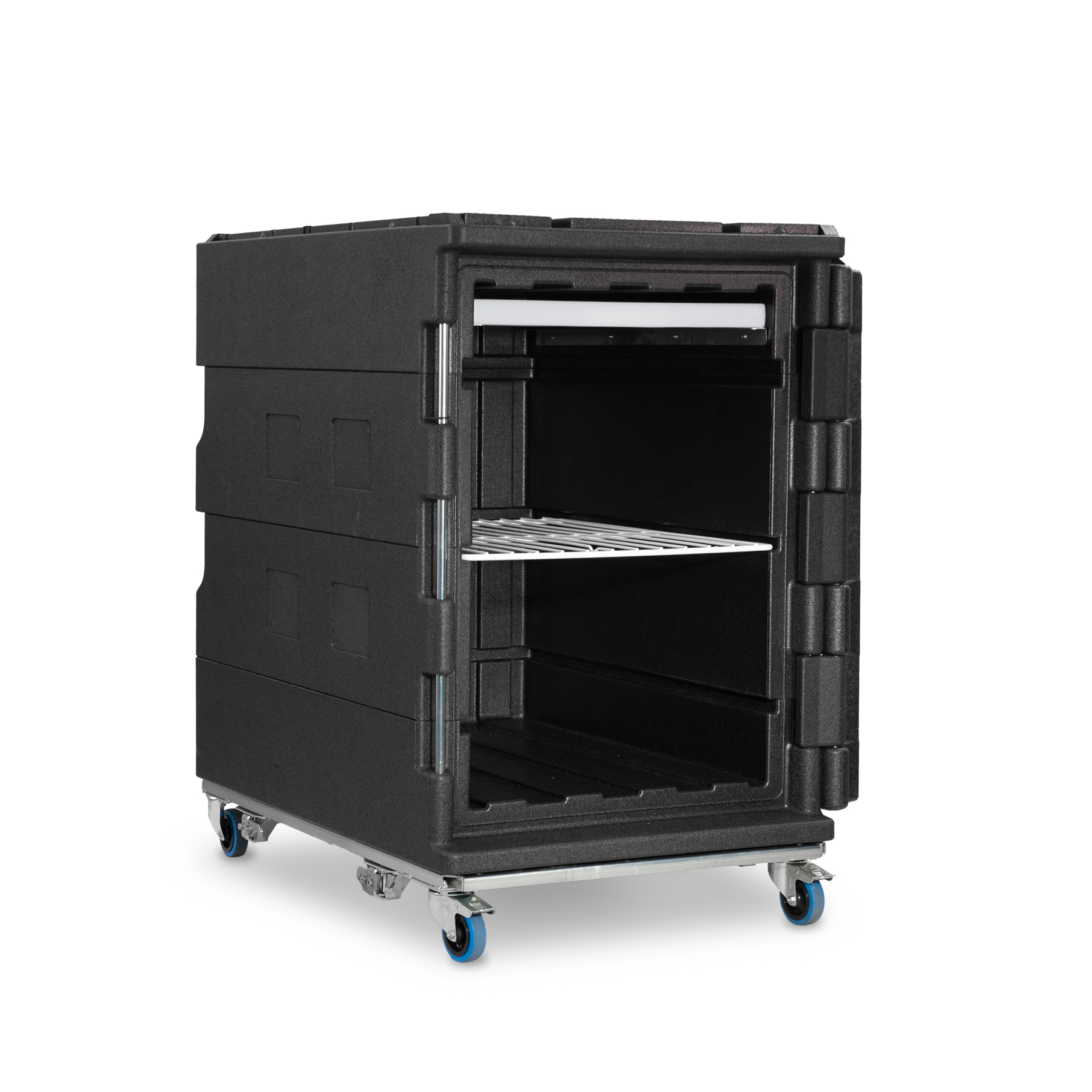

- A polyamide-coated or stainless steel intermediate grid
Roll O’CITY: reliable temperature-controlled last-mile delivery
Roll O’CITY meets the requirements of urban logistics and temperature-controlled food distribution professionals. It ensures the safe transport of fresh, frozen, or ambient products throughout delivery routes. Thanks to its 800 x 1,200 mm Euro pallet format, it easily integrates into existing organizations.
Its compact size facilitates deliveries in dense urban areas and high-speed operations.
The Roll O’CITY is particularly suitable for food distribution and last-mile delivery companies, caterers and central kitchens, urban logistics platforms, as well as local authorities and healthcare establishments.
Operational advantages
The Roll O’CITY is designed for reliability and ease of use. The temperature remains stable, even with frequent openings or rapid loading. This consistency
