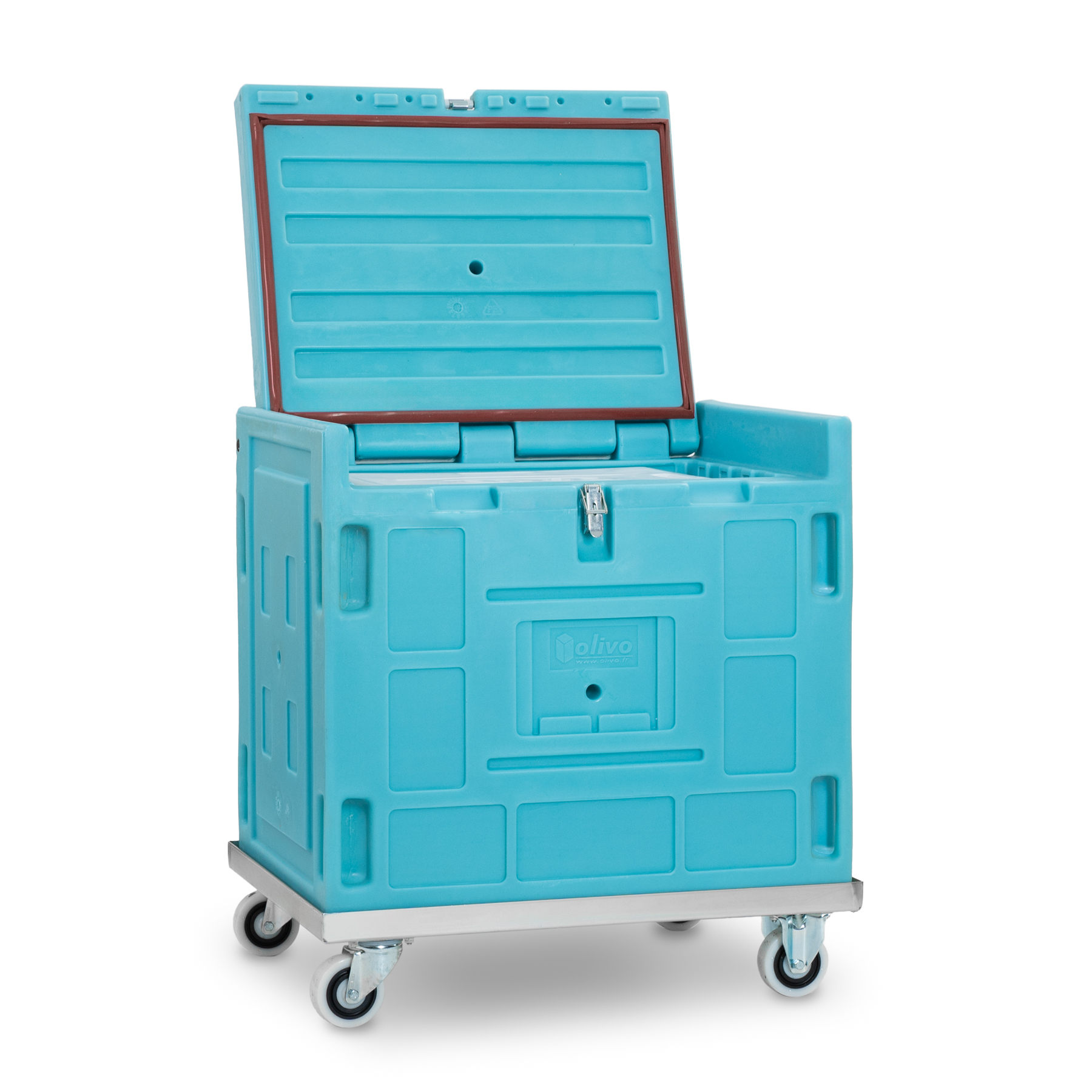

  • INSULATED BAC 130 OLIVO OPEN

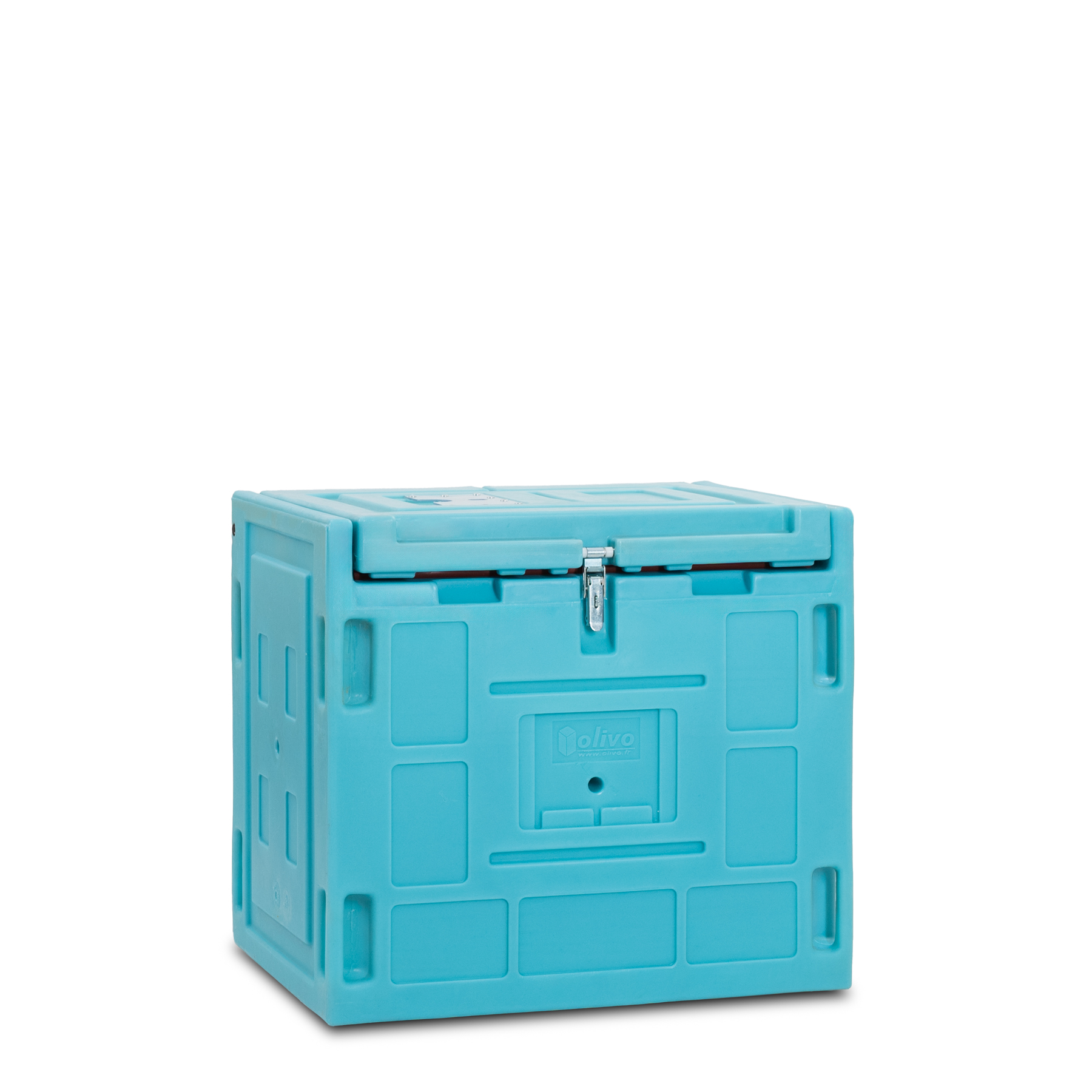

  • INSULATED BAC 130 OLIVO

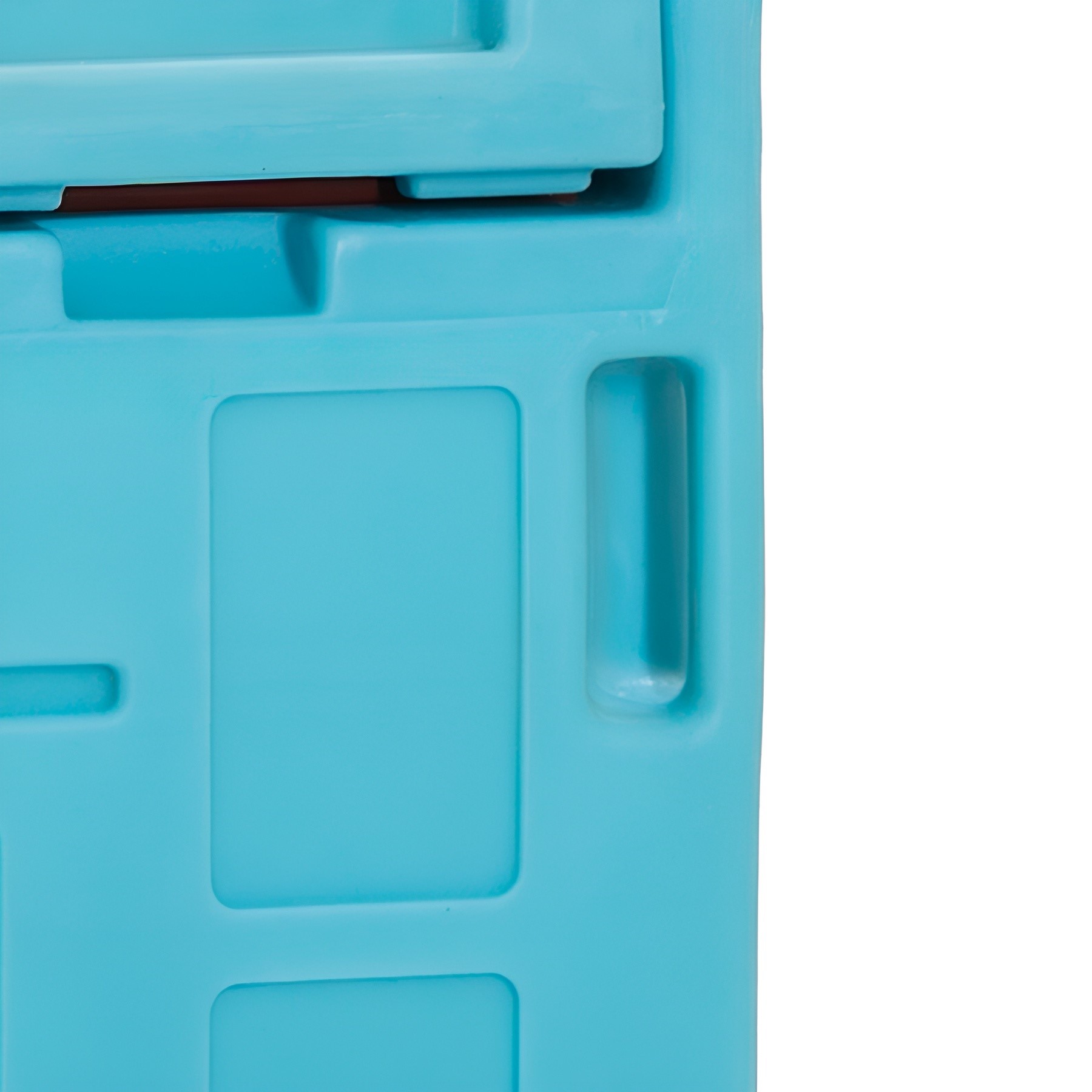

  • INSULATED BAC 130 OLIVO ROTOMOLDED HANDLES

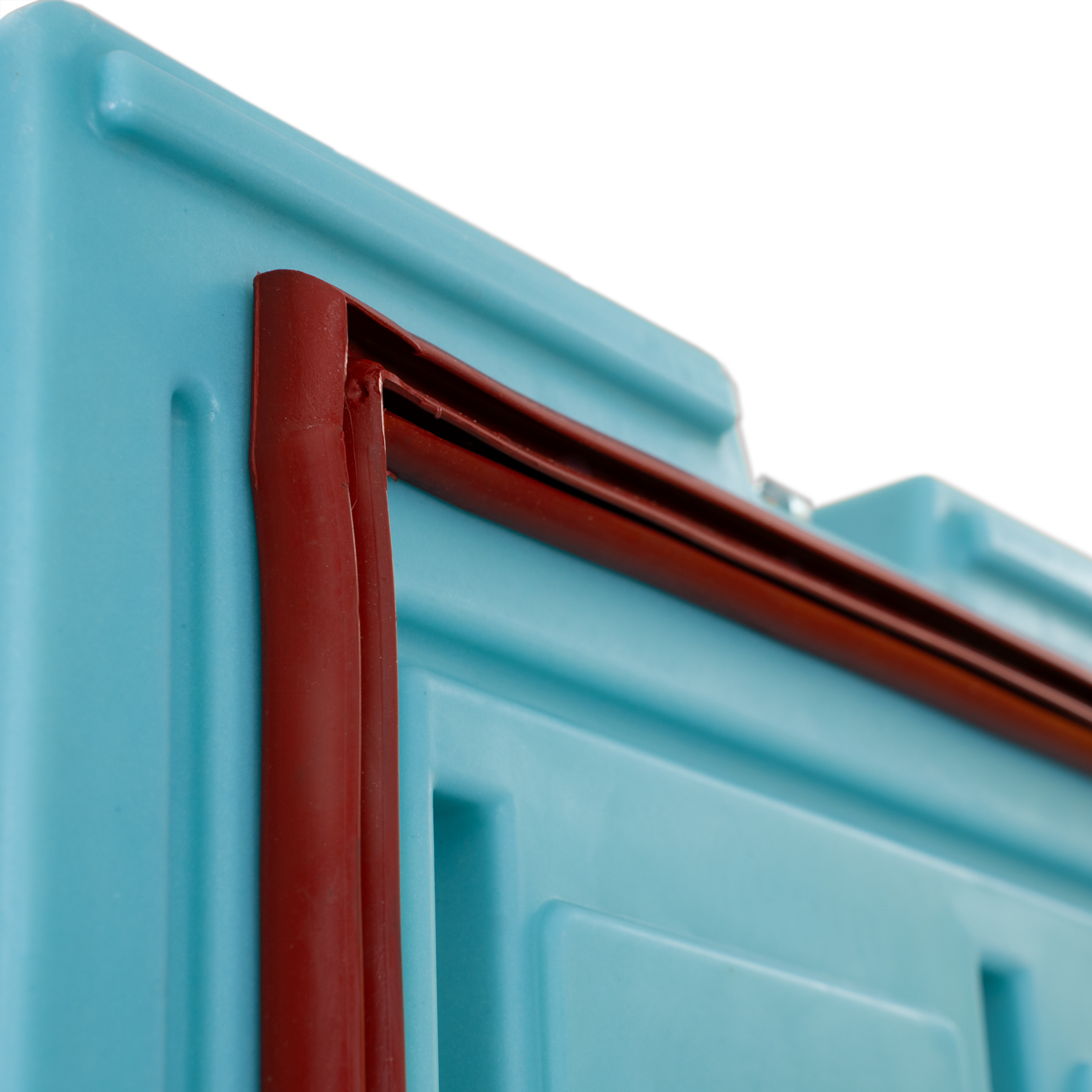

  • INSULATED BAC 130 OLIVO SILICONE SEAL
  • INSULATED BAC 130 OLIVO INTERNAL CONVECTION GROOVES

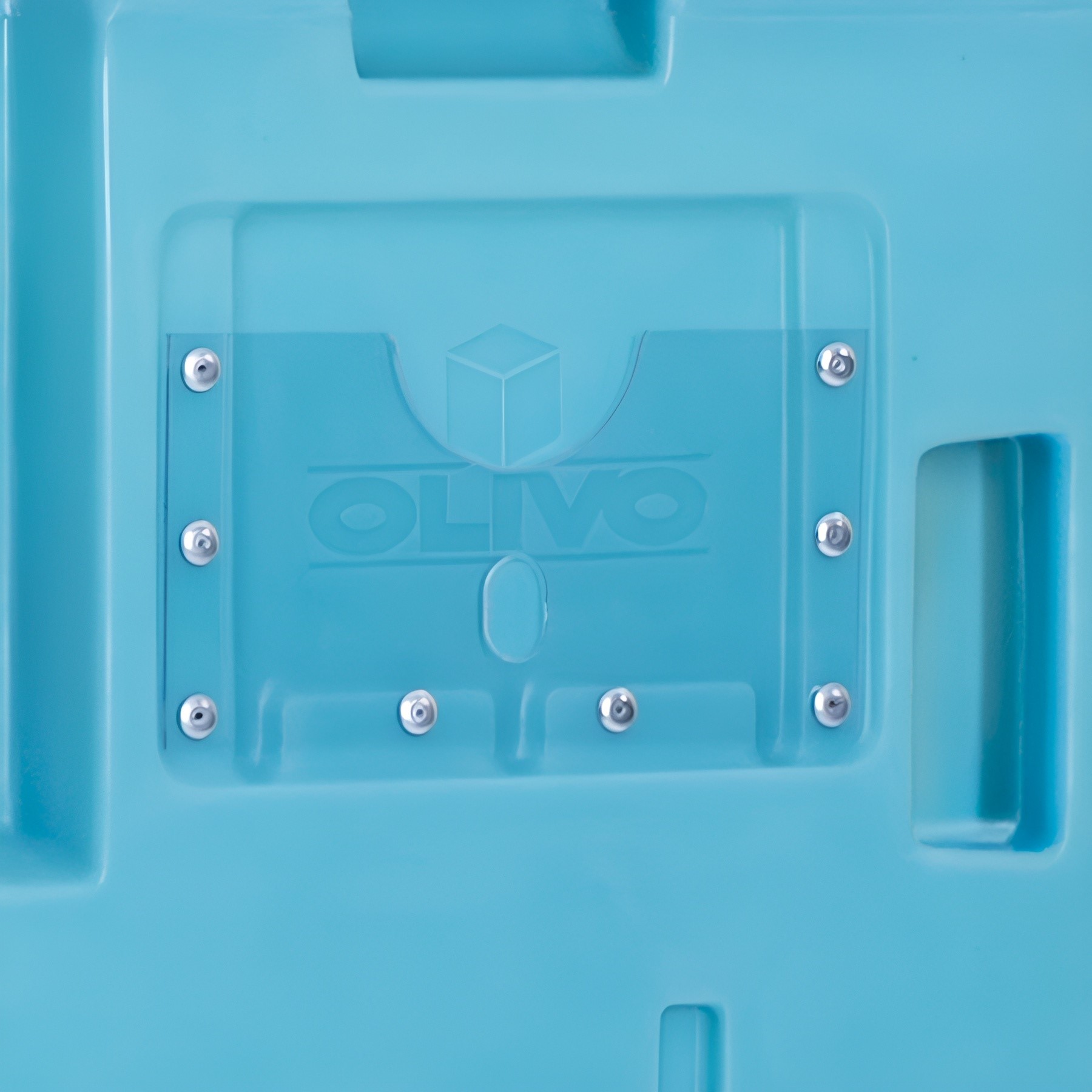

  • INSULATED BAC 130 OLIVO EMBEDDED LABEL HOLDER

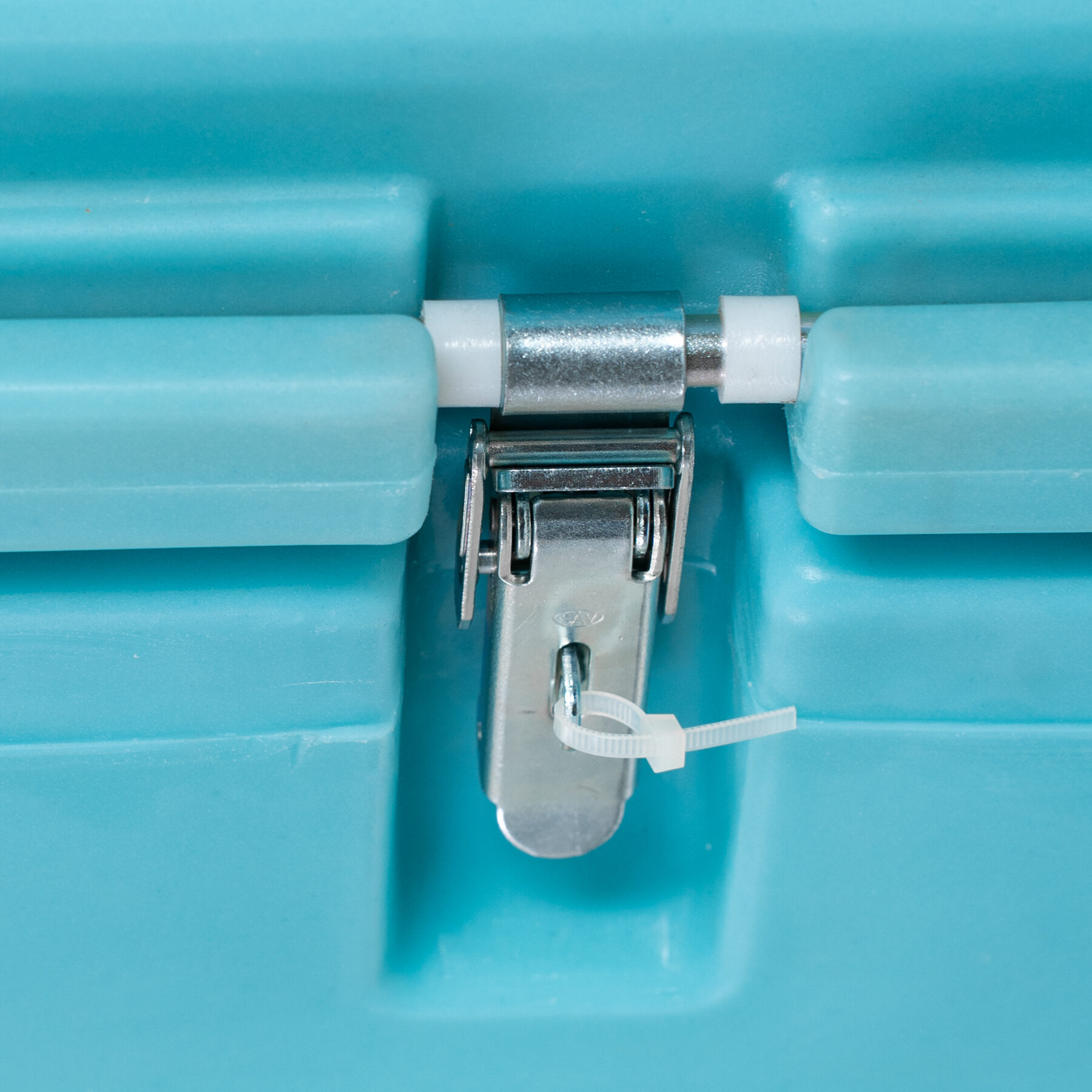

  • INSULATED BAC 130 OLIVO EMBEDDED CLOSING LATCH

Insulated BAC

BAC 130

  • Ext. dim. (LxDxH) : 800 x 600 x 715 mm
  • Int. dim. (LxDxH) : 620 x 420 x 520 mm
  • Int. Vol. : 132 Liters
  • Coef.K : 0.38 W/m².°C
  • Unloaded weight : 30 Kg
  • Insulating material : Polyurethane foam
  • Wall material : Food-grade polypropylene (PPe)
  • Logistics formats : Euronorm crate 600 x 400 et Half Euro-pallet 80 x 600
  • Application sectors : Cryogenics, Food, Health et Logistics
  • Certification :
    logoATP 1

Customisation options

Labelling, logotage and specific colours will enable you to improve the management of your fleet and increase efficiency. Contact us directly for any specific customisation project.

Custom RAL colours available

Iron-on handling stickers

Marking of the logo in the mass

Engraved nameplate

Accessories compatible with this product

To add an accessory to your quote, please write your request in the text box provided.

  • Removable rolling base

    Accessory Removable rolling base

    Diameter : ø 100 mm

    Height with base plate : 128 mm

    Treatment : galvanised

Specifications

With external dimensions of 800 x 600 x 715 mm, this isothermal container has an internal volume of 132 litres and weighs 31 kg when empty. It is ideal for transporting pharmaceutical products and dry ice, as well as for last-mile delivery and food distribution. This container uses the Top 130 eutectic plate.

The BAC130 is a professional storage container ideally suited to a wide range of applications: food distribution, pharmaceutical logistics or industrial transport. Made from food-grade polyethylene, it features a one-piece rotational-moulded design with mass-moulded eutectic plate support and a hinged box-lid system that opens to 115°.

The interior features convection grooves for optimum cold distribution. The lid features a double-lipped silicone frame gasket for a perfect, secure fit. It also has eight moulded handles for easy handling and transport. The BAC130 is ideal for transporting pharmaceutical products and dry ice, as well as for last-mile delivery and food distribution.

Up to 3 eutectic plates can be used simultaneously. Contact our team for personalised support.

  • Body and lid in one-piece rotational-moulded polyethylene. Insulated with expanded polyurethane foam.
  • Internal convection grooves.
  • Moulded eutectic plate support.
  • Moulded body/lid hinge, opens to 115°.
  • One-piece silicone frame gasket.
  • Recessed locking toggle (space for seal).
  • 8 handling handles from the mould
  • Recessed label holder.
  • Stackable bins with moulded-in bosses.
Download the data sheet

Frequently asked questions about this product

  • Personalization

    Is it possible to order made-to-measure containers ?

    Olivo’s solutions are designed and made to meet the cold chain logistics requirements of a maximum number of users. The sizes therefore correspond to international standards for logistics: Euro pallet, ISO pallet, Asia pallet. Our different models are fall into three separate ranges for which we rarely make made-to-measure containers. However, depending on what your project involves and the volumes to be produced, we can work with you to see if a custom solution is possible.

  • Personalization

    Can the insulated container be pierced or drilled through?

    No. Olivo strongly advises against piercing or drilling into the wall of an insulated container as it would no longer be intact, which would affect its tightness and impair its thermal insulation performance. If you wish to personalise your container, you should contact your account manager, who will help you to find the right solution.

  • Isothermal containers

    What preventive operations are recommended to guarantee the longevity of an insulated container?

    In order to prolong the useful life of insulated containers, Olivo recommends certain preventive actions:

    • Cleaning and disinfection of the equipment based on a washing plan defining the method and frequency;
    • Lubrication of the closing systems, casters and brakes;
    • Checking the tyres on the casters for wear;
    • Annual technical inspection: checking the condition of the inner and outer walls, the seals, etc.
