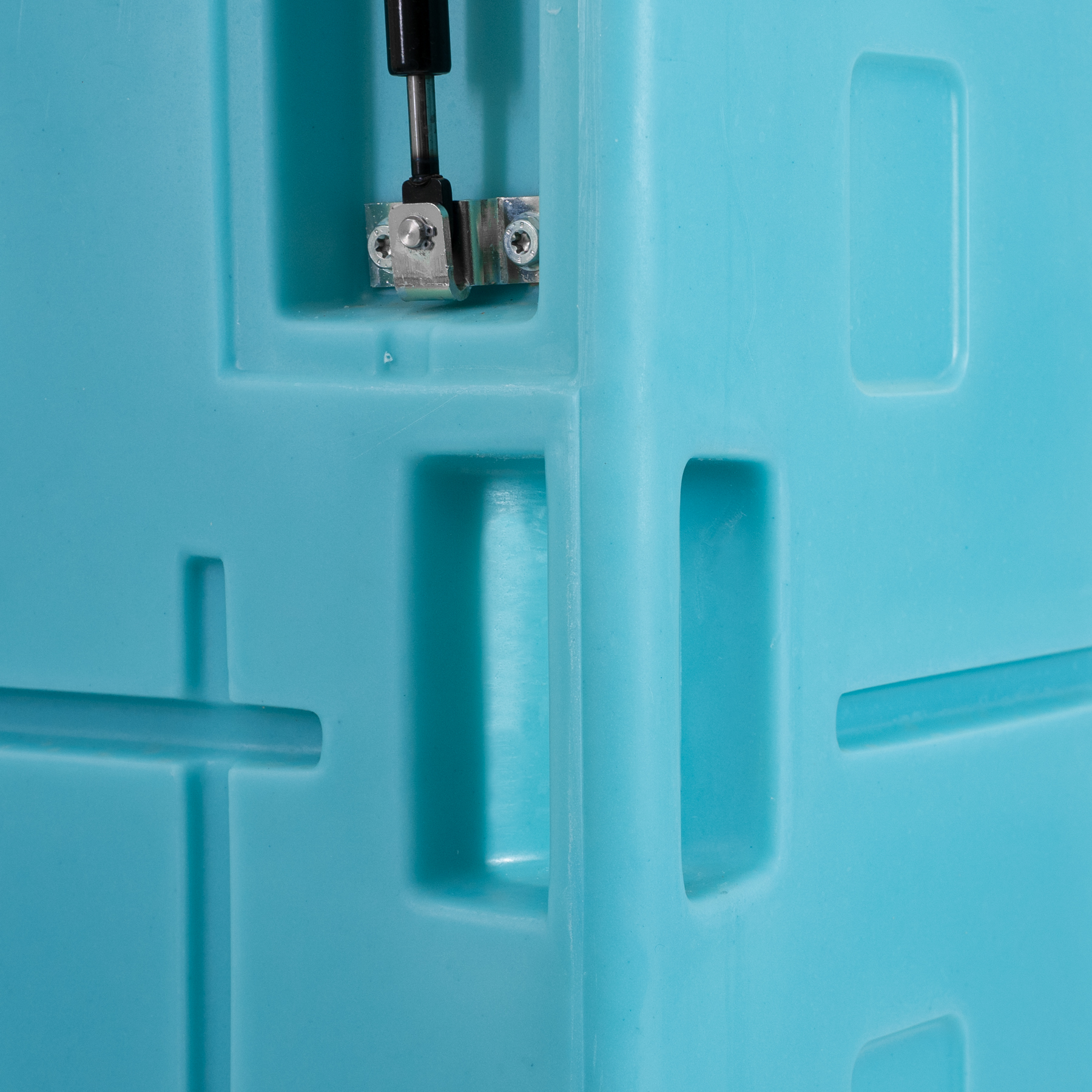

  • INSULATED BAC 420 OLIVO ROTOMOLDED REAR HANDLE

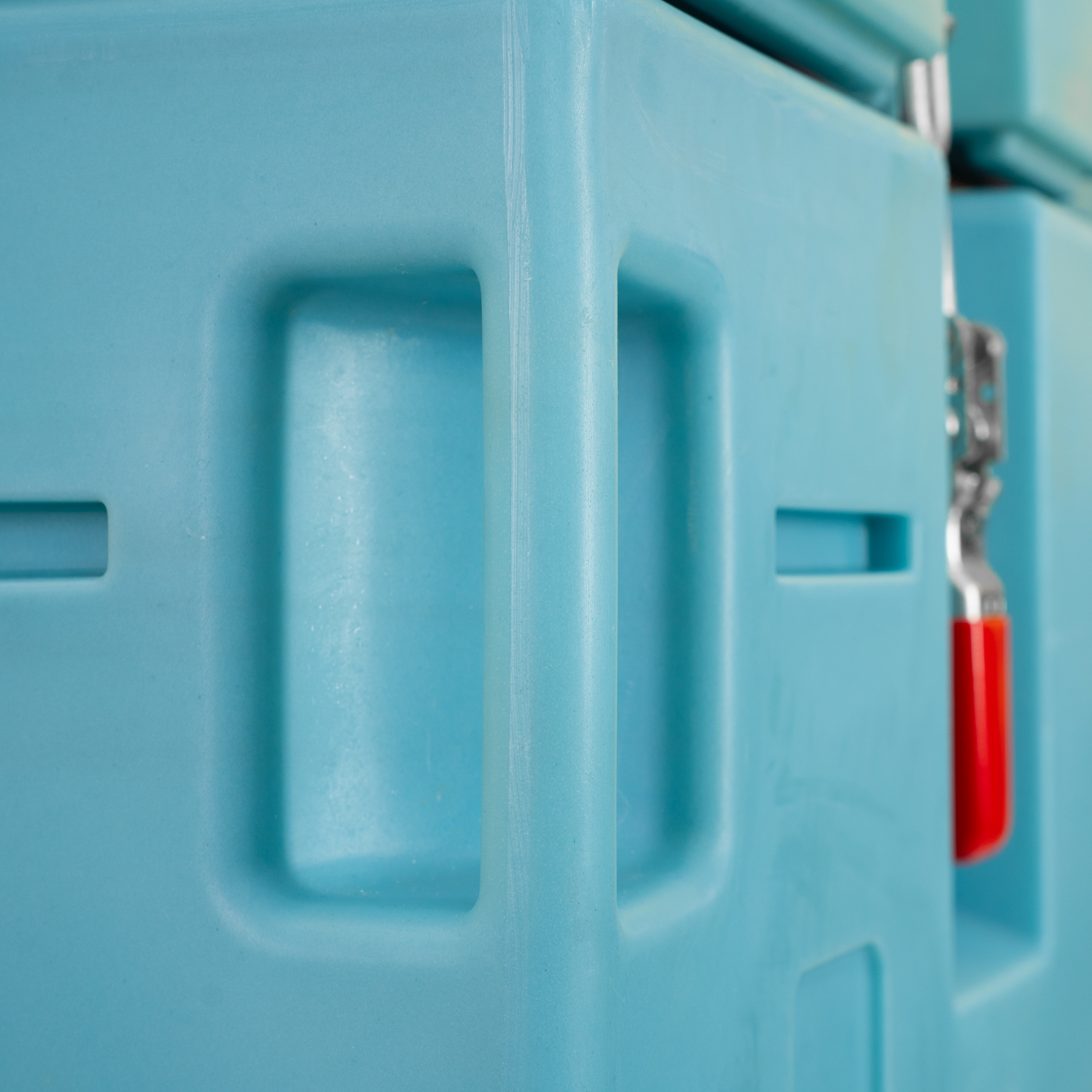

  • INSULATED BAC 420 OLIVO ROTOMOLDED HANDLES

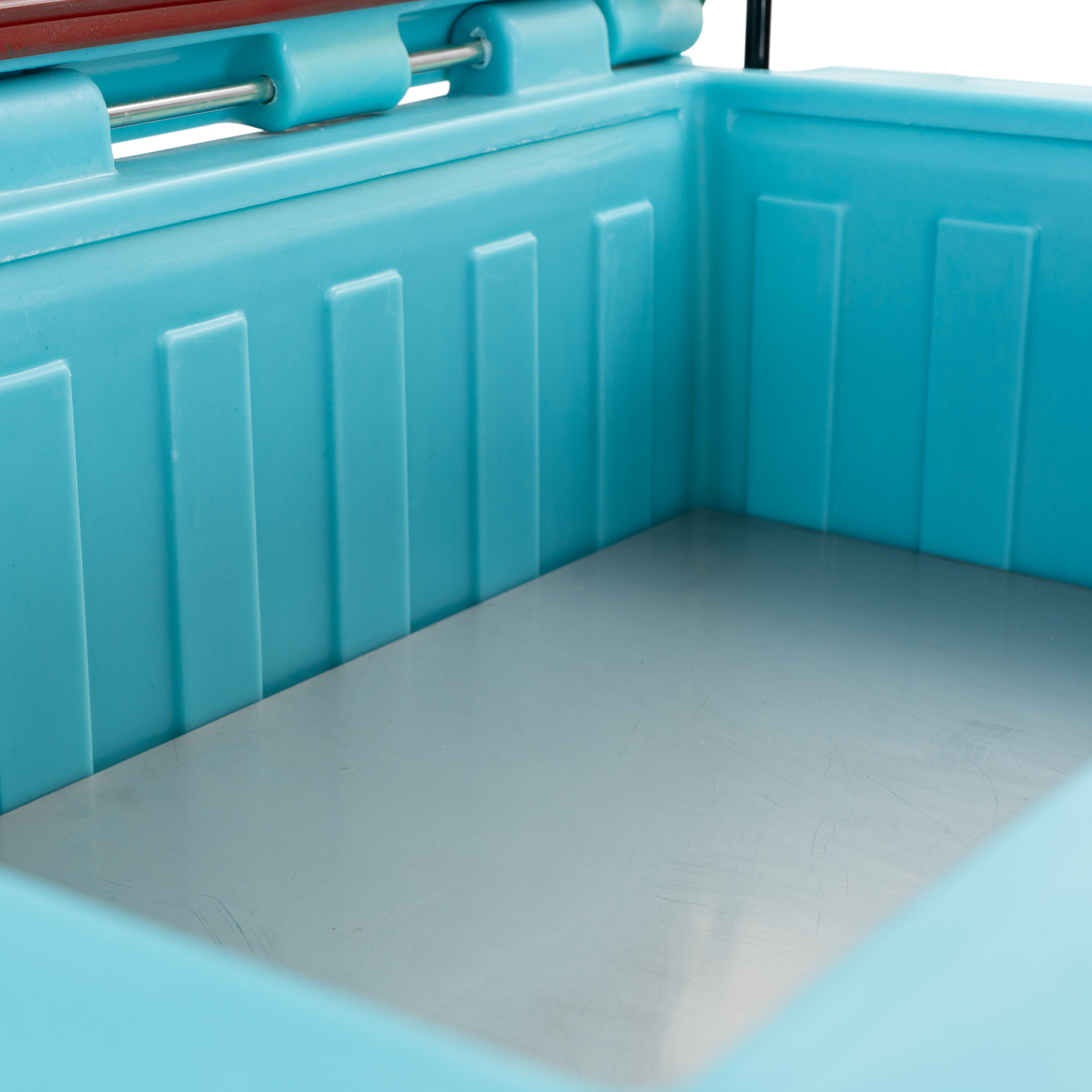

  • INSULATED BAC 420 OLIVO RISING PLATE
  • INSULATED BAC 420 OLIVO OPEN
  • INSULATED BAC 420 OLIVO LID STACKING BLOCK
  • INSULATED BAC 420 OLIVO DRY ICE DRAWER

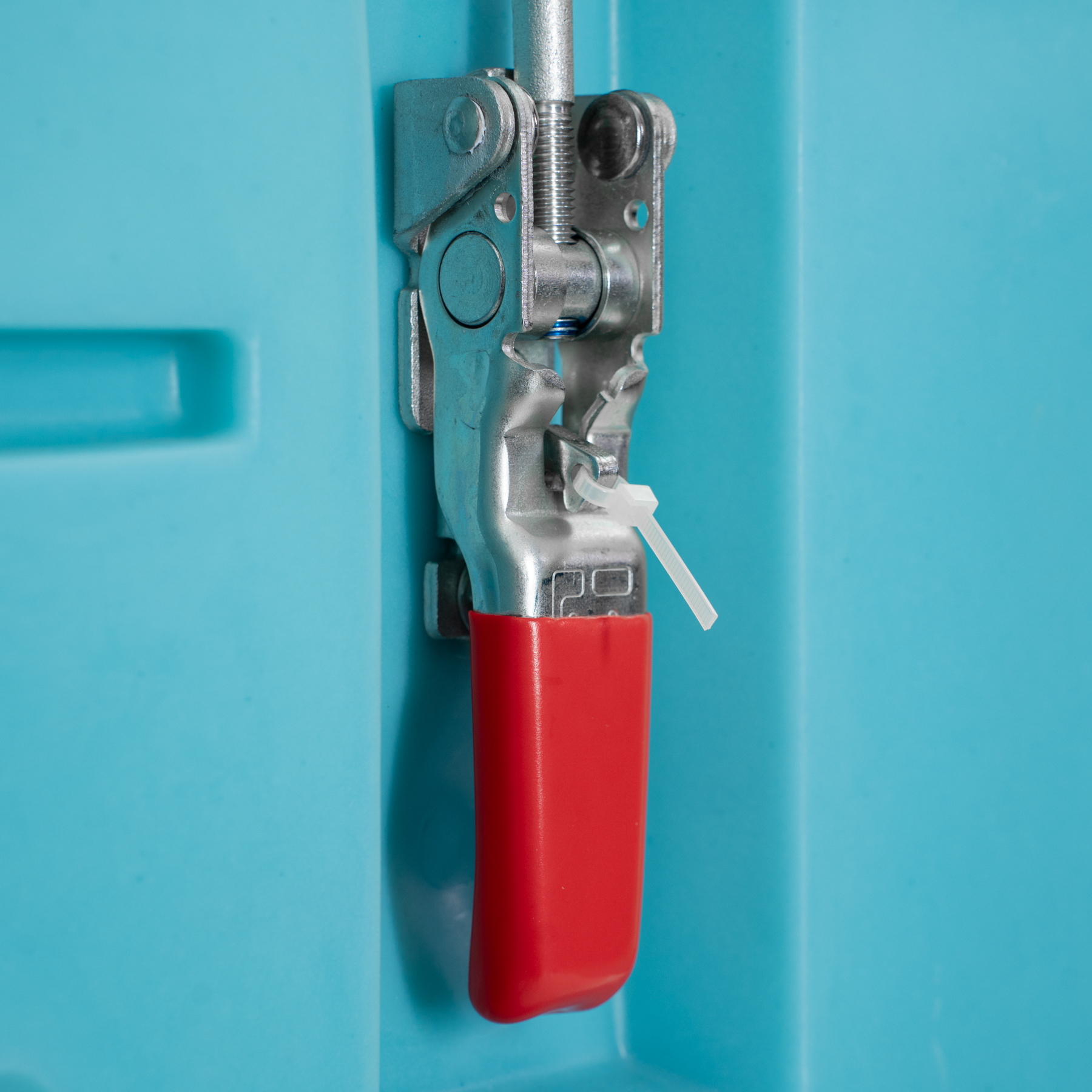

  • INSULATED BAC 420 OLIVO EMBEDDED CLOSING LATCH
  • INSULATED BAC 420 OLIVO EMBEDDED LABEL HOLDER

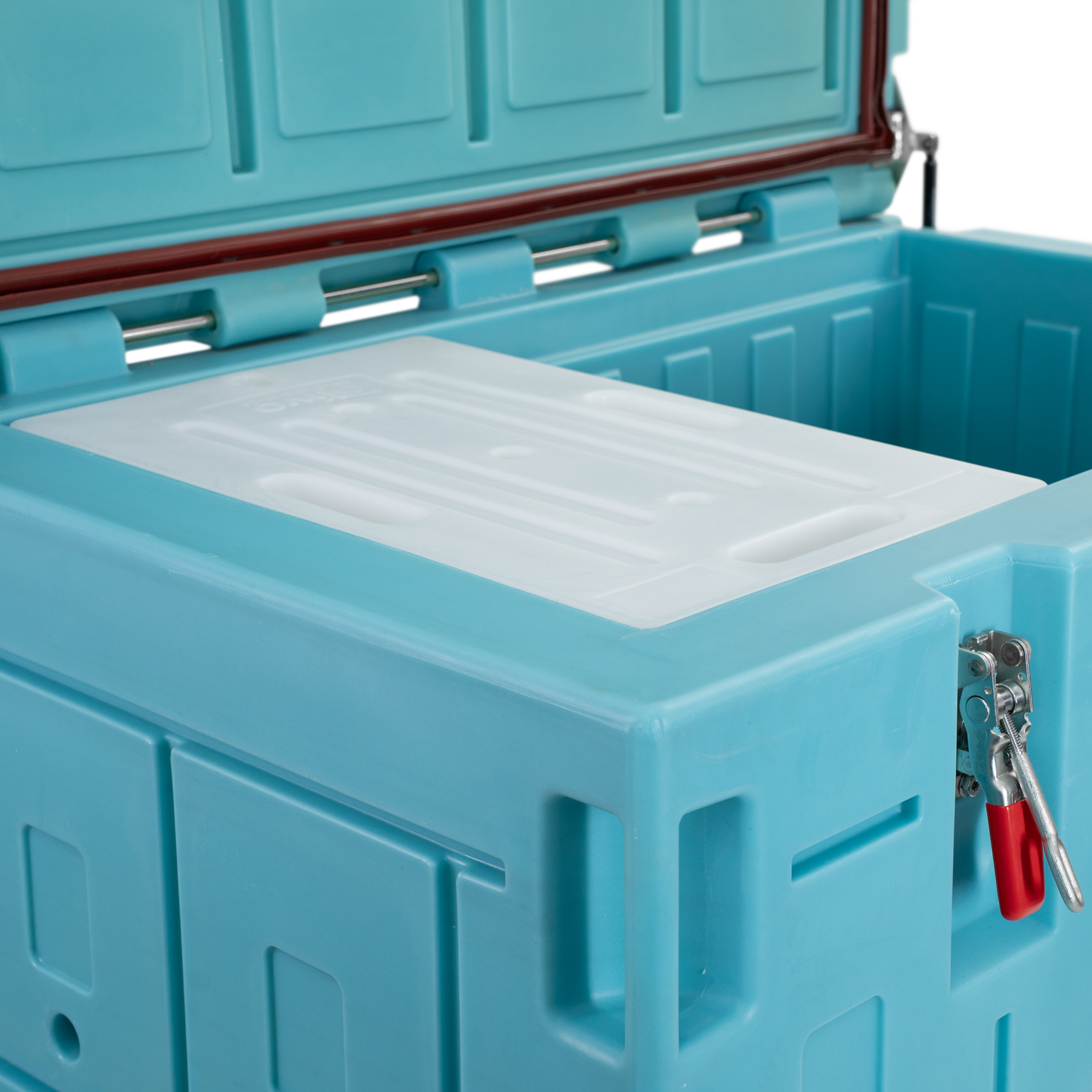

  • INSULATED BAC 420 OLIVO EUTECTIC PLATE TOP900
  • INSULATED BAC 420 OLIVO GAS JACKS
  • INSULATED BAC 420 OLIVO SILICONE SEAL
  • INSULATED BAC 420 OLIVO DRAIN PLUG
  • INSULATED BAC 420 OLIVO INTERNAL CONVECTION GROOVES
  • INSULATED BAC 420 OLIVO HINGE PIN

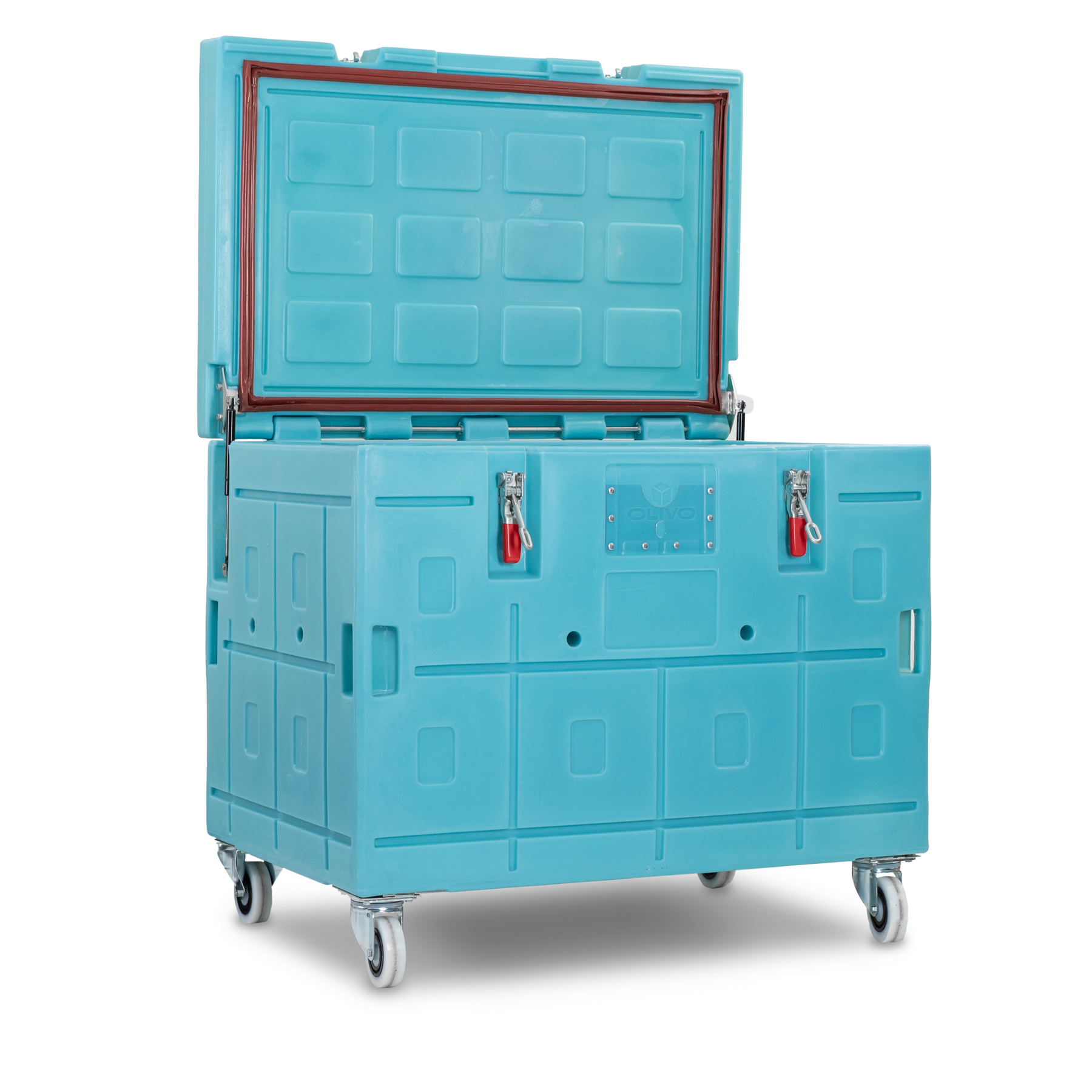

Insulated BAC

BAC 420

  • Ext. dim. (LxDxH) : 1200 x 800 x 1085 mm
  • Int. dim. (LxDxH) : 1000 x 600 x 695 mm
  • Int. Vol. : 417 Liters
  • Coef.K : 0.33 W/m².°C
  • Unloaded weight : 98 Kg
  • Insulating material : Polyurethane foam
  • Wall material : Food-grade polypropylene (PPe)
  • Logistics format : Euro-pallet 800 x 1200
  • Application sectors : Cryogenics, Food, Health et Logistics
  • Certification :
    logoATP 1

Customisation options

Labelling, logotage and specific colours will enable you to improve the management of your fleet and increase efficiency. Contact us directly for any specific customisation project.

Custom RAL colours available

Iron-on handling stickers

Marking of the logo in the mass

Engraved nameplate

Accessories compatible with this product

To add an accessory to your quote, please write your request in the text box provided.

  • Eutectic plate rack TOP 900

    Accessory Eutectic plate rack TOP 900

    Height : 1585 mm

    Width : 670 mm

    Depth : 940 mm

    Number of plates stored : up to 40

    Handling handles : 4

    Tare weight : 85 kg

    Loaded weight : 457 kg

  • Feets 80 mm

    Accessory Feets 80 mm

    Diameter : 80 mm

    Height with base plate : 130 mm

    Metallic :

  • Brake wheel

    Accessory Brake wheel

    Diameter : ø 100 mm

    Height with base plate : 128 mm

    Tyre width : 36 mm

    Features : hybrid wheel

    Polyamide wheel centre and tyre, elastic rubber ring :

Specifications

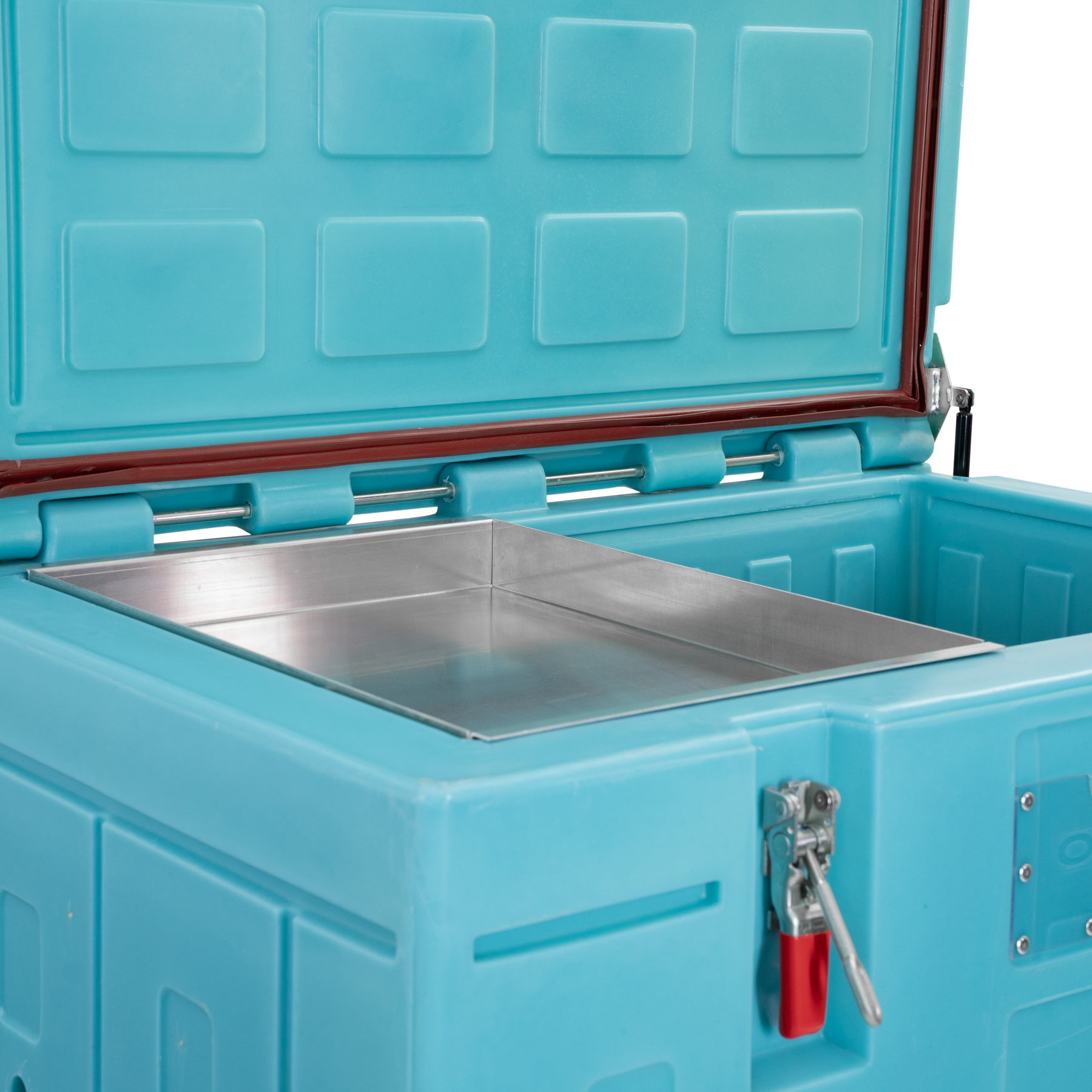

De dimensions extérieures 1200 x 800 x 1050 mm, ce bac isotherme dispose d’un volume intérieur de 420 L et pèse 98 Kg à vide. Il est parfaitement adapté au transport de produits pharmaceutiques et de glace carbonique, mais aussi pour la livraison dernier km et la distribution alimentaire.

  • Caisse et couvercle en polyéthylène alimentaire rotomoulé monobloc.
  • Châssis encastré, acier anti-corrosion.
  • 4 roues Ø 125 mm: 2 fixes, 2 pivotantes ou 4 pieds métalliques Ø 80 mm.

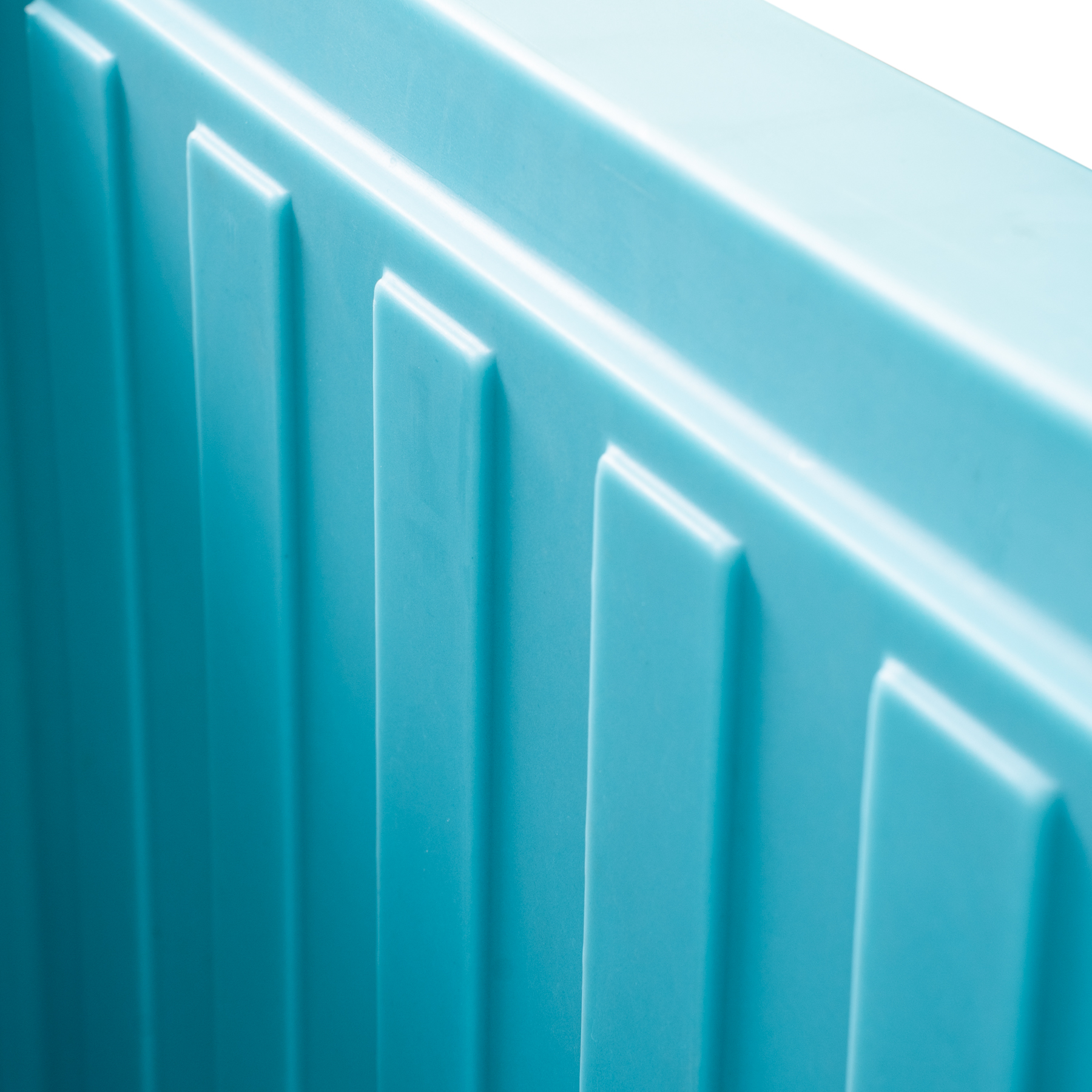

  • Rainurages intérieurs de convection.

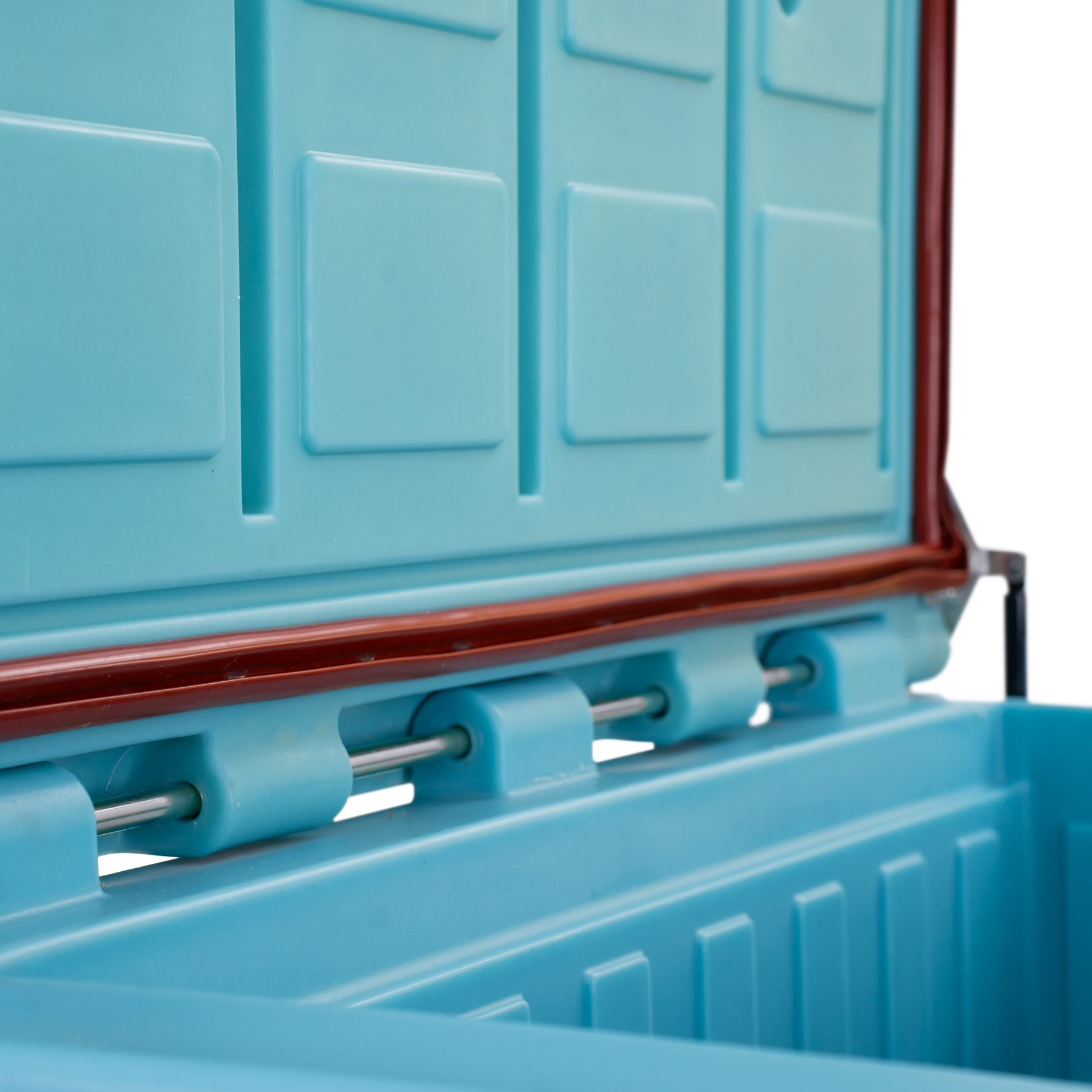

  • Articulation caisse/couvercle venant du moulage.
  • Ouverture du couvercle assistée par compas à gaz avec blocage à 80°.

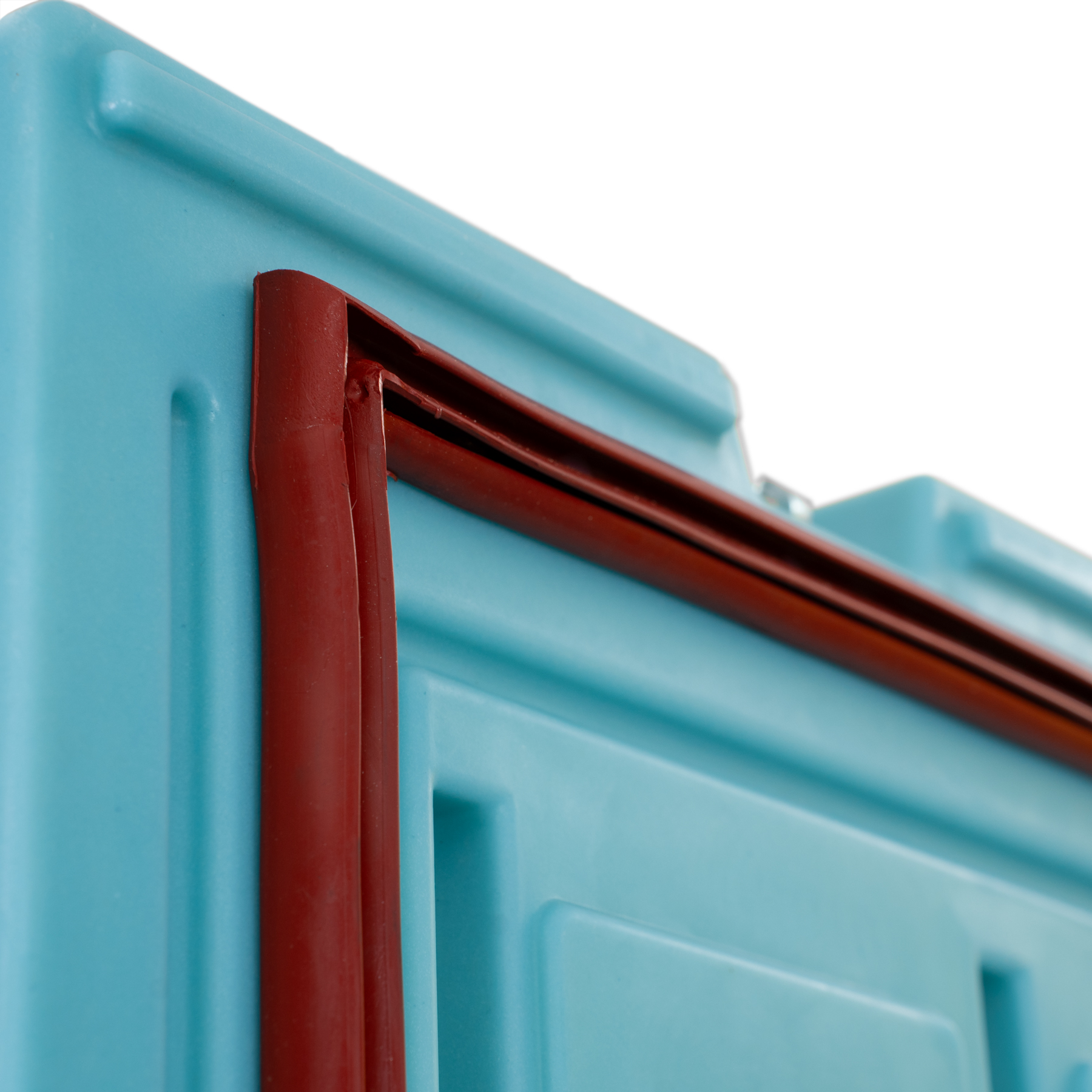

  • Joint cadre monobloc silicone.
  • 2 grenouillères de fermeture encastrées scellées.
  • 4 poignées de manutention venant du moulage.

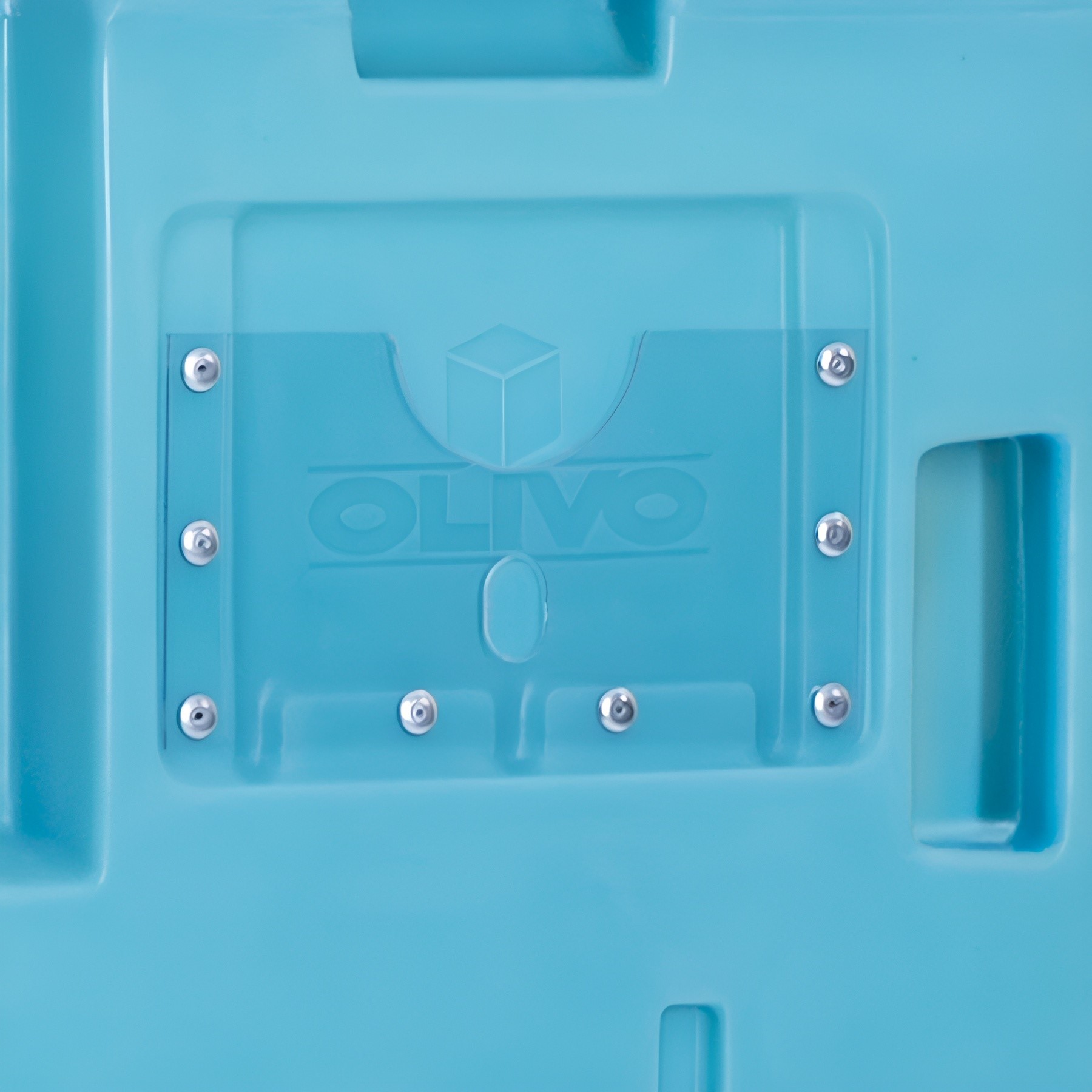

  • Porte étiquette encastré.

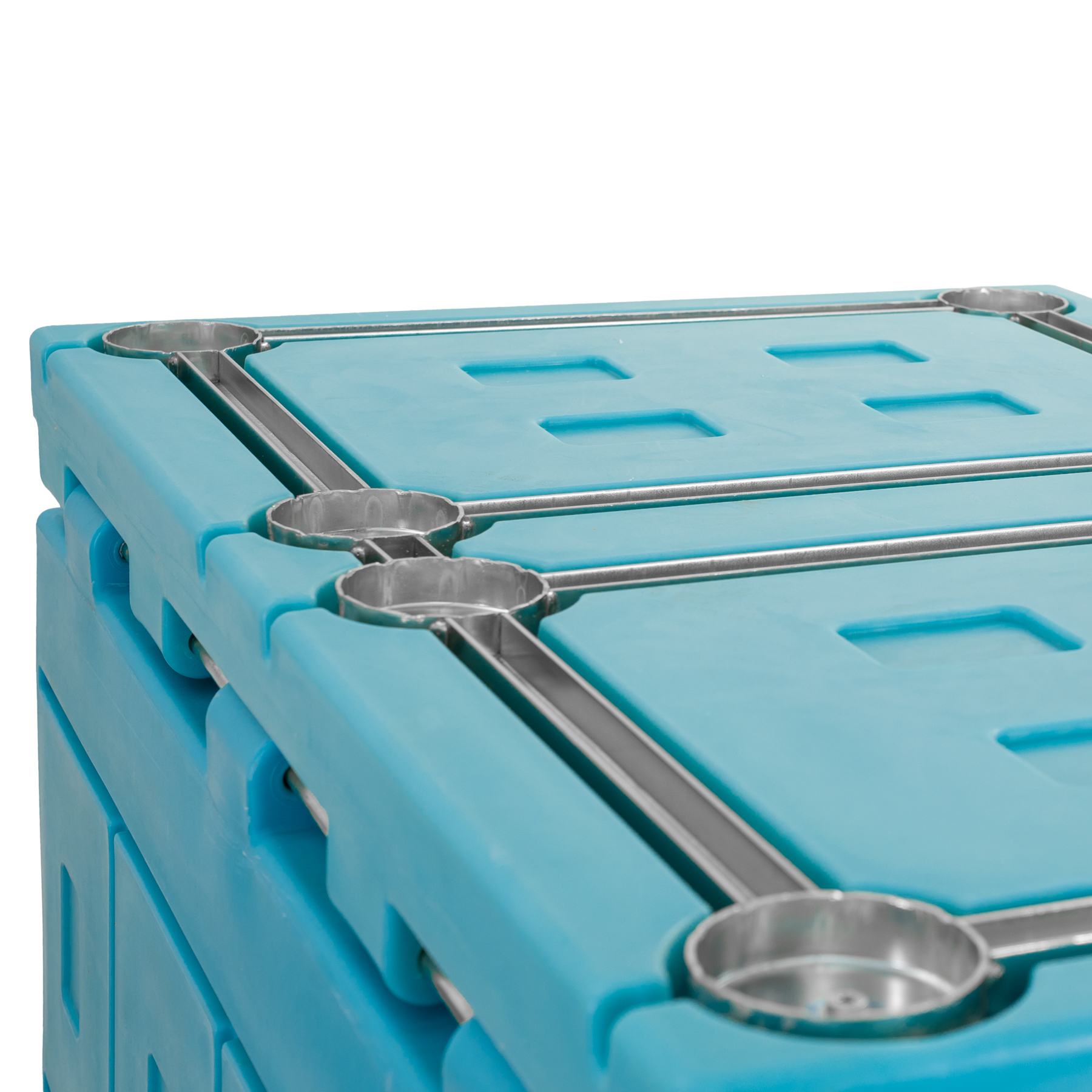

  • Couvercle équipé de plots de gerbage métalliques pour BAC sur pieds.

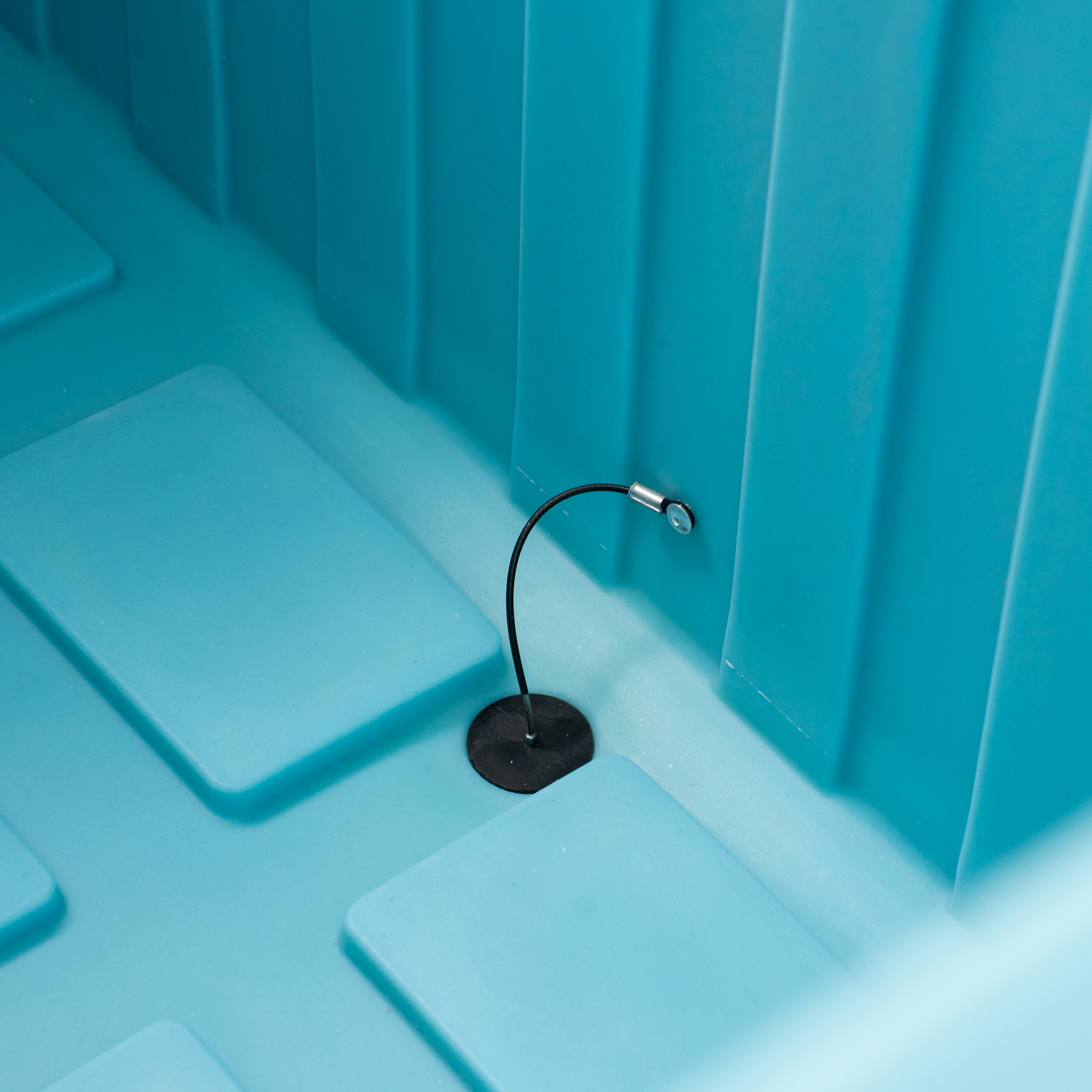

  • Bonde de vidange
Download the data sheet

Frequently asked questions about this product

  • Personalization

    Is it possible to order made-to-measure containers ?

    Olivo’s solutions are designed and made to meet the cold chain logistics requirements of a maximum number of users. The sizes therefore correspond to international standards for logistics: Euro pallet, ISO pallet, Asia pallet. Our different models are fall into three separate ranges for which we rarely make made-to-measure containers. However, depending on what your project involves and the volumes to be produced, we can work with you to see if a custom solution is possible.

  • Personalization

    Can the insulated container be pierced or drilled through?

    No. Olivo strongly advises against piercing or drilling into the wall of an insulated container as it would no longer be intact, which would affect its tightness and impair its thermal insulation performance. If you wish to personalise your container, you should contact your account manager, who will help you to find the right solution.

  • Isothermal containers

    What preventive operations are recommended to guarantee the longevity of an insulated container?

    In order to prolong the useful life of insulated containers, Olivo recommends certain preventive actions:

    • Cleaning and disinfection of the equipment based on a washing plan defining the method and frequency;
    • Lubrication of the closing systems, casters and brakes;
    • Checking the tyres on the casters for wear;
    • Annual technical inspection: checking the condition of the inner and outer walls, the seals, etc.
