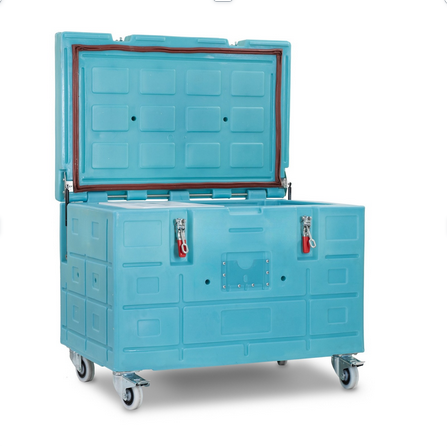

  • INSULATED BAC 320 OLIVO OPEN
  • INSULATED BAC 320 OLIVO EMBEDDED LABEL HOLDER

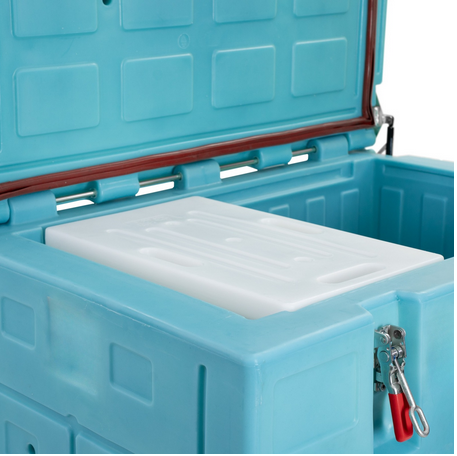

  • INSULATED BAC 320 OLIVO EUTECTIC PLATE TOP370
  • INSULATED BAC 320 OLIVO GAS JACKS
  • INSULATED BAC 320 OLIVO HINGE PIN
  • INSULATED BAC 320 OLIVO INTERNAL CONVECTION GROOVES
  • INSULATED BAC 320 OLIVO LID STACKING BLOCK
  • BAC 320
  • INSULATED BAC 320 OLIVO
  • INSULATED BAC 320 OLIVO EMBEDDED CLOSING LATCH
  • INSULATED BAC 320 OLIVO DRAIN PLUG
  • INSULATED BAC 320 OLIVO SILICONE SEAL
  • INSULATED BAC 320 OLIVO ROTOMOLDED HANDLES
  • INSULATED BAC 320 OLIVO OPEN
  • INSULATED BAC 320 OLIVO EMBEDDED LABEL HOLDER
  • INSULATED BAC 320 OLIVO EUTECTIC PLATE TOP370
  • INSULATED BAC 320 OLIVO GAS JACKS
  • INSULATED BAC 320 OLIVO HINGE PIN
  • INSULATED BAC 320 OLIVO INTERNAL CONVECTION GROOVES
  • INSULATED BAC 320 OLIVO LID STACKING BLOCK

Insulated BAC

BAC 320

  • Ext. dim. (LxDxH) : 1200 x 800 x 965 mm
  • Int. dim. (LxDxH) : 985 x 590 x 575 mm
  • Int. Vol. : 327 Liters
  • Coef.K : 0.35 W/m².°C
  • Unloaded weight : 90 Kg
  • Insulating material : Polyurethane foam
  • Wall material : Food-grade polypropylene (PPe)
  • Logistics format : Euro-pallet 800 x 1200
  • Application sectors : Cryogenics, Food, Health et Logistics
  • Certification :
    logoATP 1

Customisation options

Labelling, logotage and specific colours will enable you to improve the management of your fleet and increase efficiency. Contact us directly for any specific customisation project.

Custom RAL colours available

Iron-on handling stickers

Marking of the logo in the mass

Engraved nameplate

Accessories compatible with this product

To add an accessory to your quote, please write your request in the text box provided.

  • Eutectic plate rack TOP 370

    Accessory Eutectic plate rack TOP 370

    Height : 1585 mm

    Width : 690 mm

    Depth : 1020 mm

    Number of plates stored : up to 40

    Handling handles : 4

    Tare weight : 90 kg

    Loaded weight : 442 kg

  • Upright tray

    Accessory Upright tray

    Treatment : INOX

    Lifting system : spring-loaded

  • Brake wheel

    Accessory Brake wheel

    Diameter : ø 100 mm

    Height with base plate : 128 mm

    Tyre width : 36 mm

    Features : hybrid wheel

    Polyamide wheel centre and tyre, elastic rubber ring :

Specifications

De dimensions extérieures 1200 x 800 x 930 mm, ce bac isotherme dispose d’un volume intérieur de 324 L et pèse 89 Kg à vide. Il est parfaitement adapté au transport de produits pharmaceutiques et de glace carbonique, mais aussi pour la livraison dernier km et la distribution alimentaire. Ce bac utilise la plaque eutectique Top 370.

  • Caisse et couvercle en polyéthylène alimentaire rotomoulé monobloc.
  • Châssis encastré, acier anti – corrosion.
  • 4 roues Ø 125 mm: 2 fixes, 2 pivotantes ou 4 pieds métalliques Ø 80 mm.

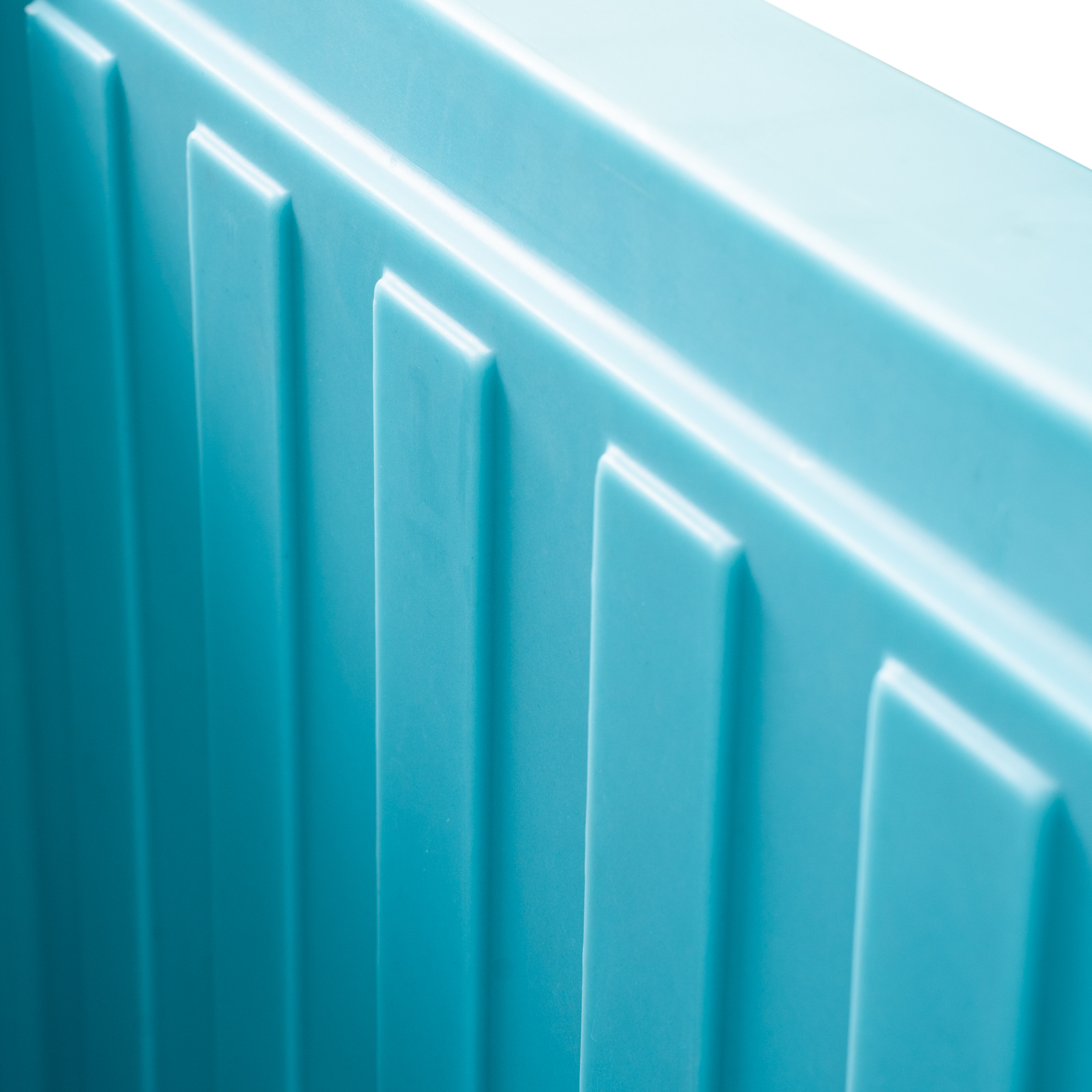

  • Rainurages intérieurs de convection.

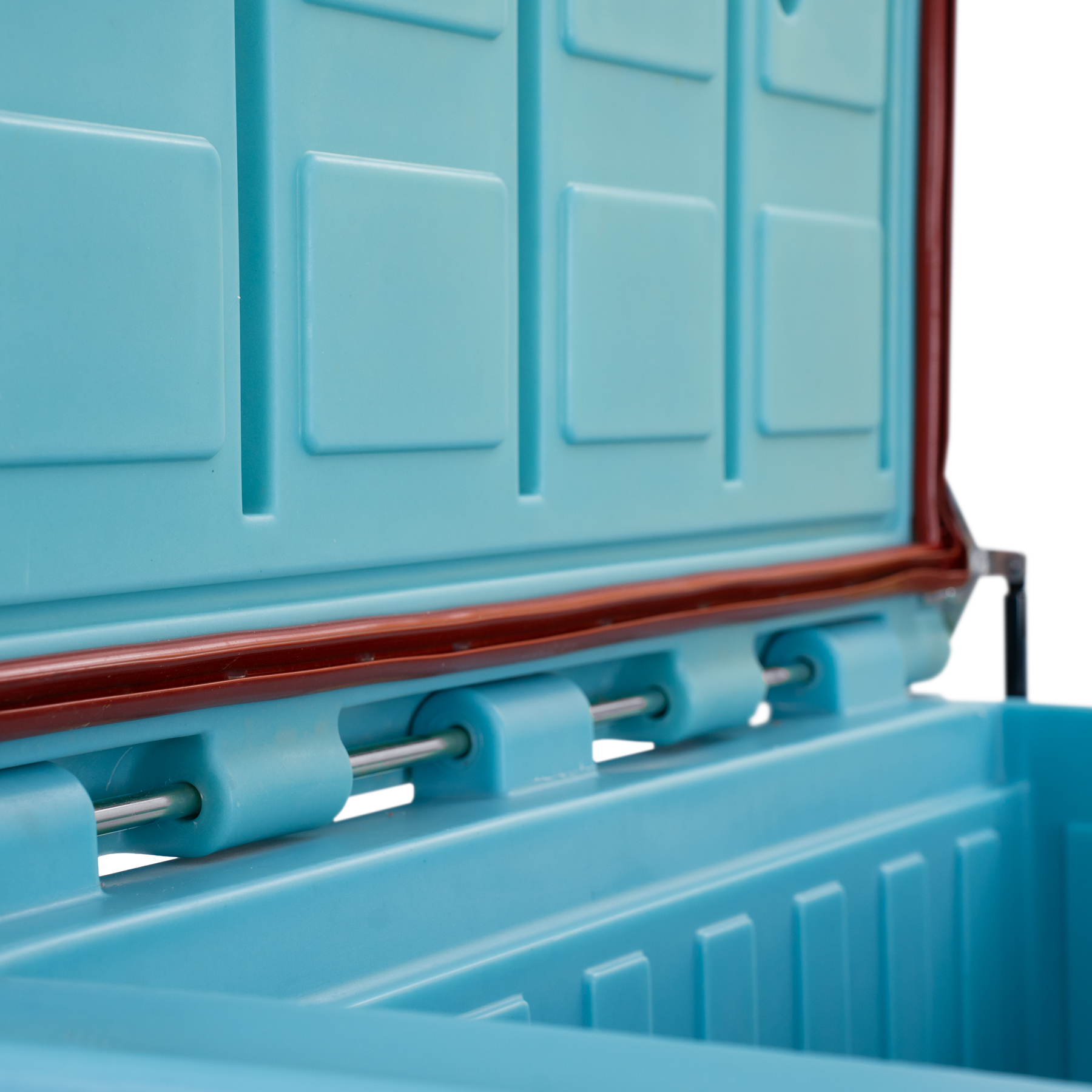

  • Articulation caisse/couvercle venant du moulage.

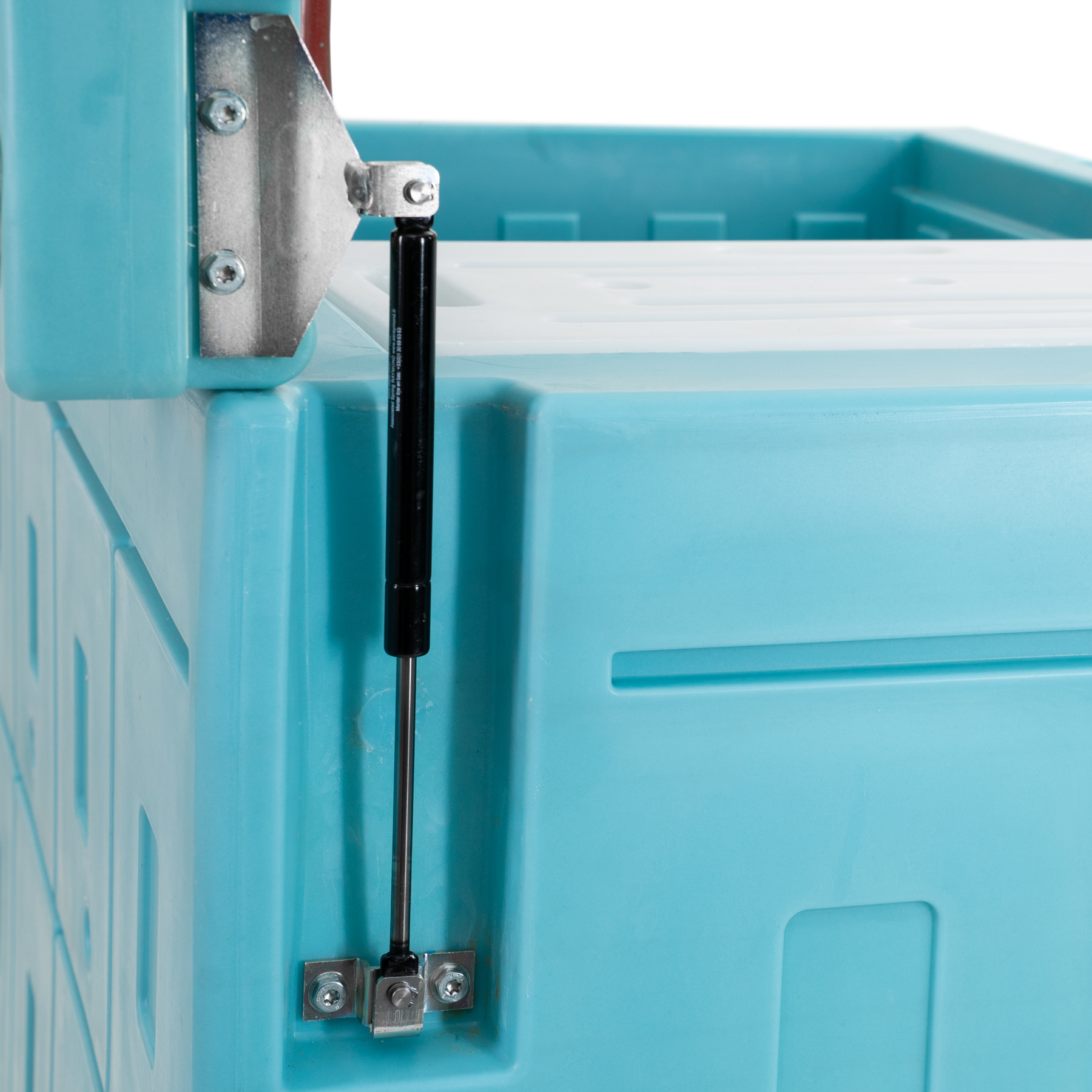

  • Ouverture du couvercle assistée par compas à gaz avec blocage à 80°.

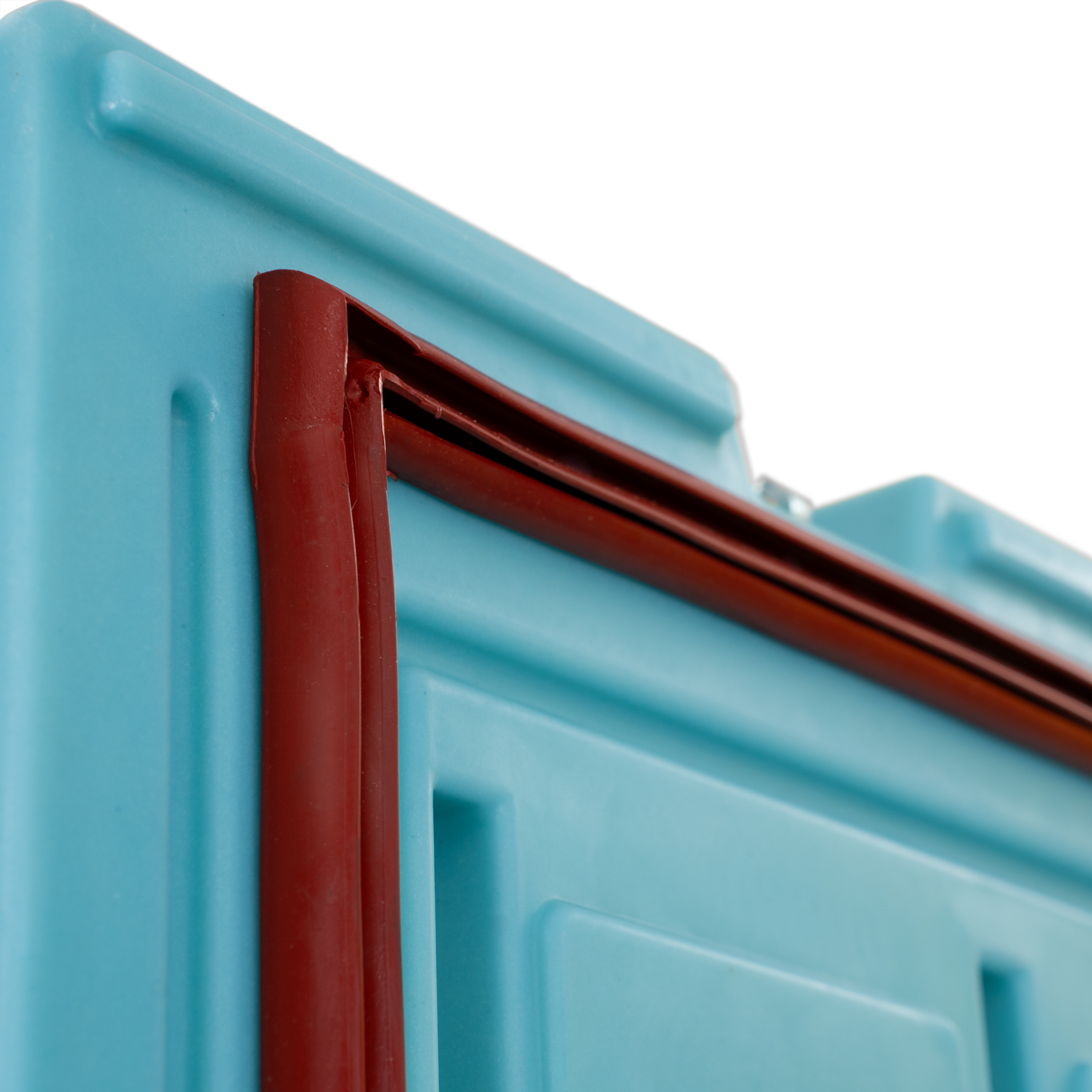

  • Joint cadre monobloc silicone.

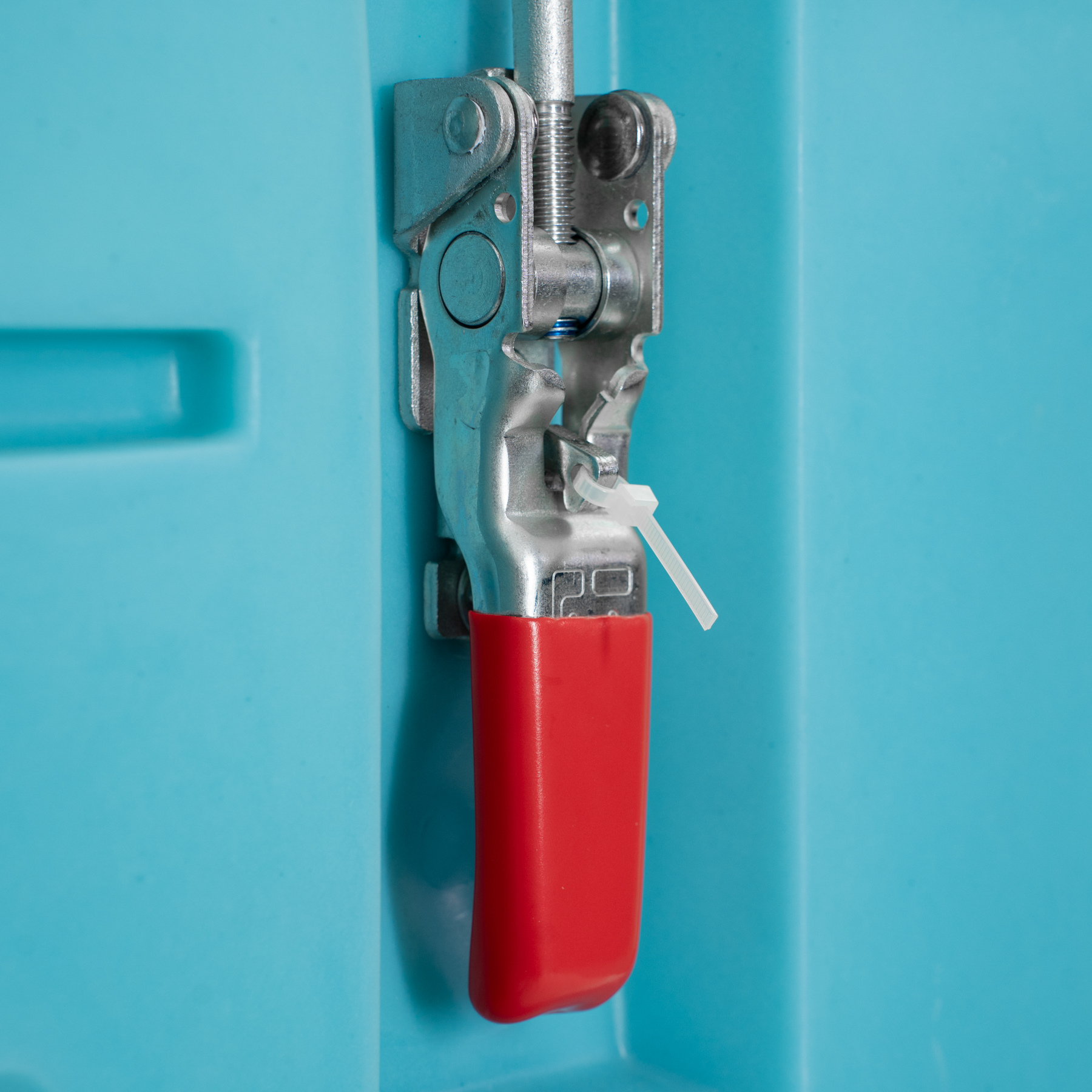

  • 2 grenouillères de fermeture encastrées scellées.

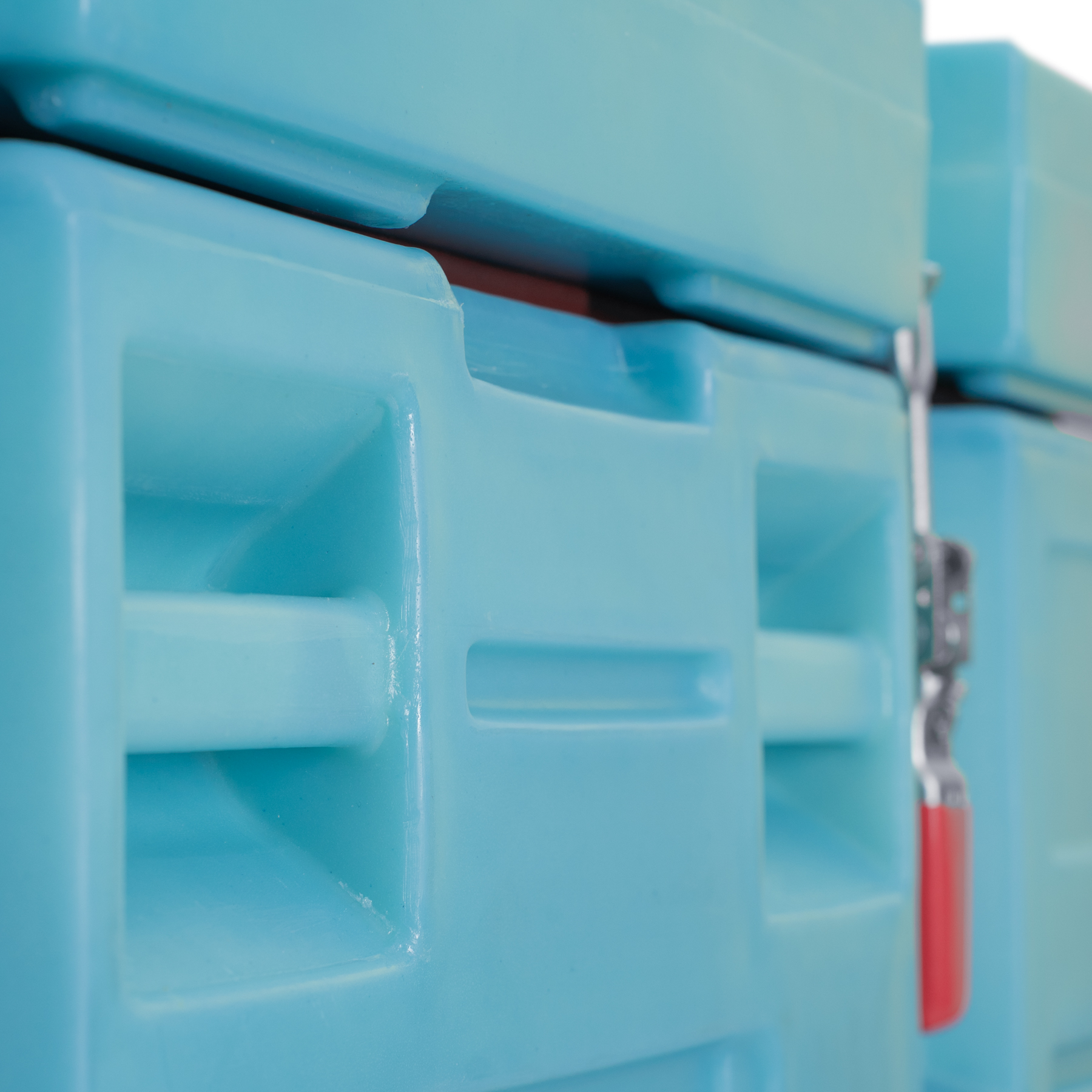

  • Prises de main et support plaque venant du moulage

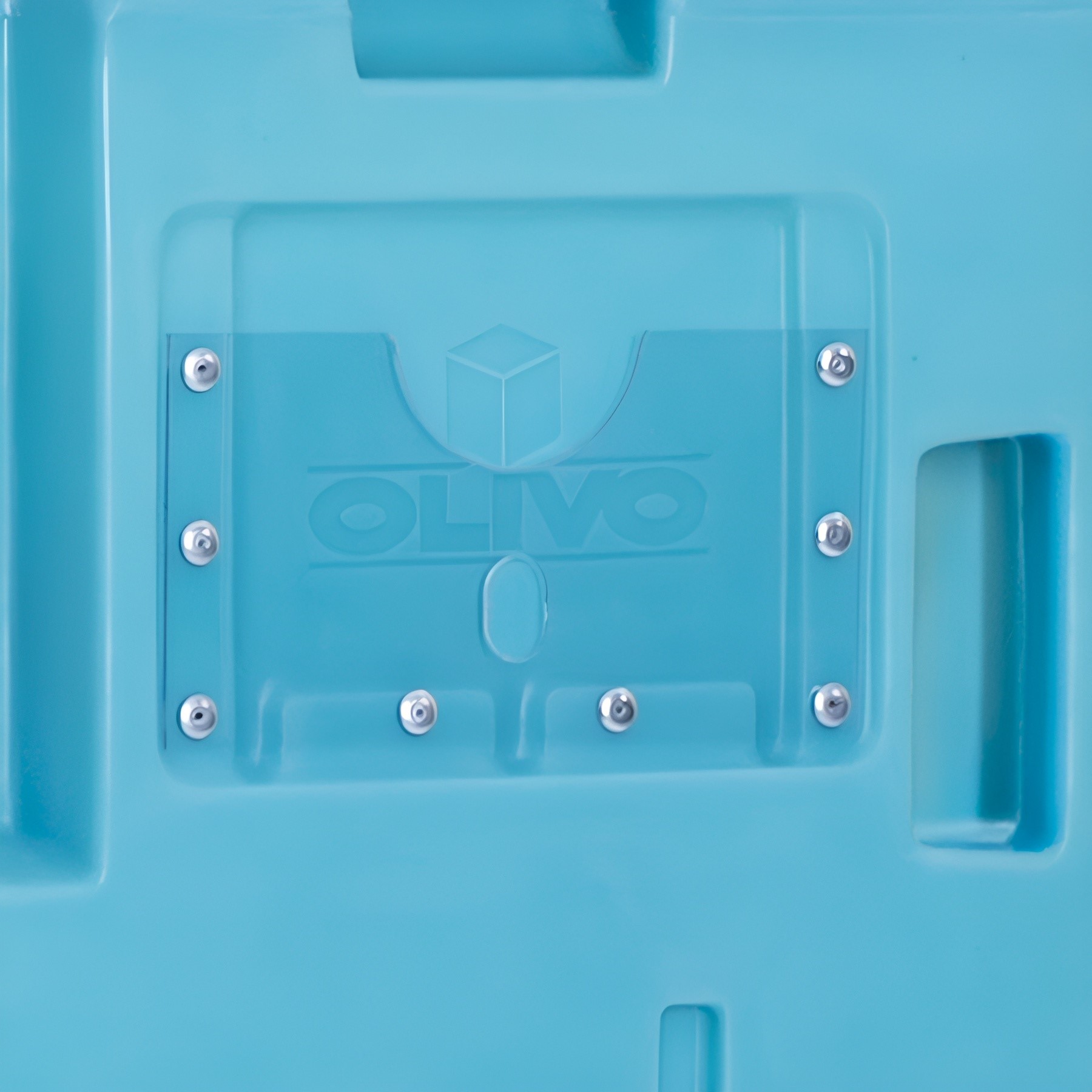

  • Porte étiquette encastré.

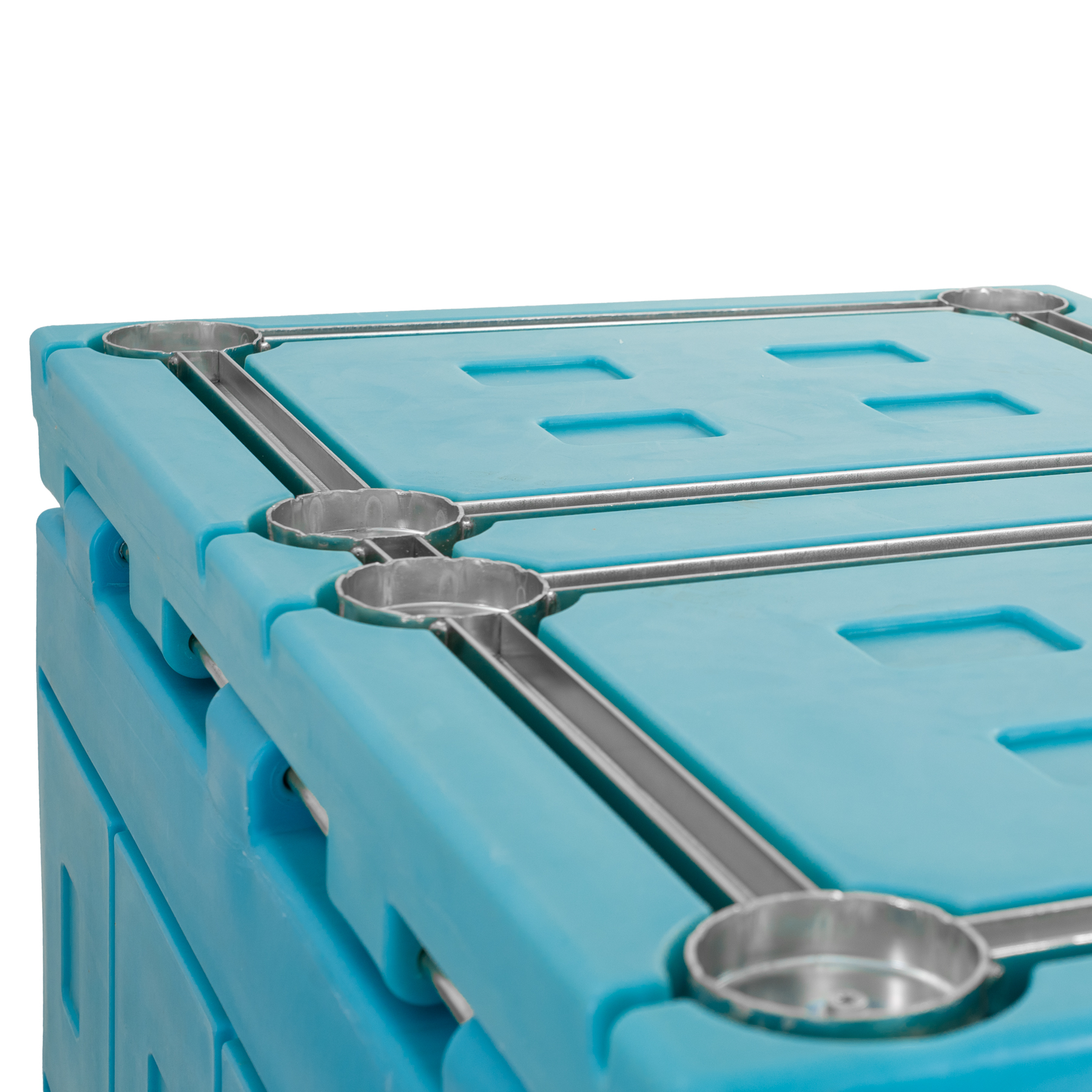

  • Couvercle équipé de plots de gerbage métalliques pour BAC sur pieds.

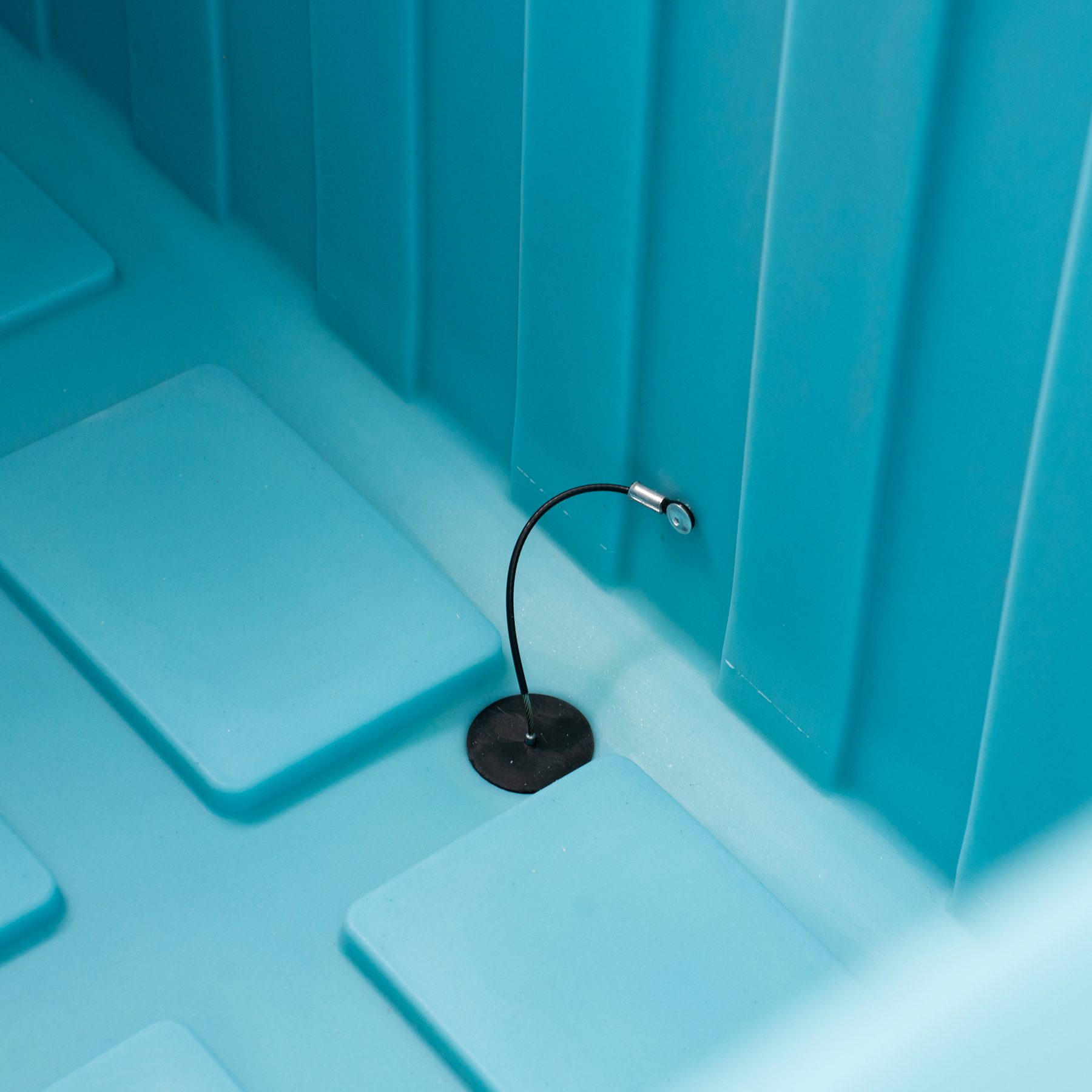

  • Bonde de vidange
Download the data sheet

Frequently asked questions about this product

  • Personalization

    Is it possible to order made-to-measure containers ?

    Olivo’s solutions are designed and made to meet the cold chain logistics requirements of a maximum number of users. The sizes therefore correspond to international standards for logistics: Euro pallet, ISO pallet, Asia pallet. Our different models are fall into three separate ranges for which we rarely make made-to-measure containers. However, depending on what your project involves and the volumes to be produced, we can work with you to see if a custom solution is possible.

  • Personalization

    Can the insulated container be pierced or drilled through?

    No. Olivo strongly advises against piercing or drilling into the wall of an insulated container as it would no longer be intact, which would affect its tightness and impair its thermal insulation performance. If you wish to personalise your container, you should contact your account manager, who will help you to find the right solution.

  • Isothermal containers

    What preventive operations are recommended to guarantee the longevity of an insulated container?

    In order to prolong the useful life of insulated containers, Olivo recommends certain preventive actions:

    • Cleaning and disinfection of the equipment based on a washing plan defining the method and frequency;
    • Lubrication of the closing systems, casters and brakes;
    • Checking the tyres on the casters for wear;
    • Annual technical inspection: checking the condition of the inner and outer walls, the seals, etc.
